YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Card

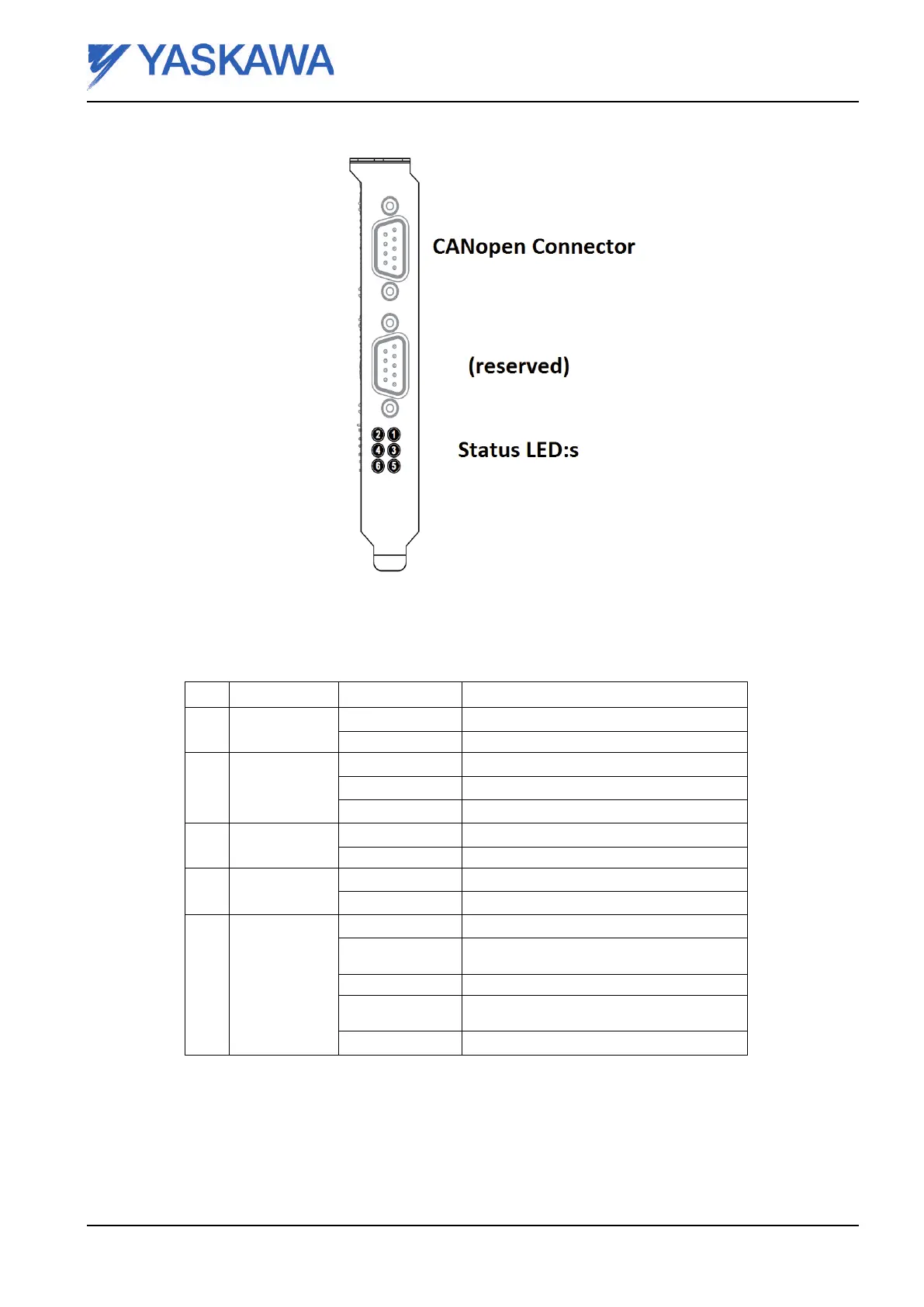

Fig. 68 CanOpen slave card
16.2.1 Status LEDs
No: Indication State
Meaning
1
Appl.
connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3 Status
Off Normal operation
Red Unrecoverable fault detected
4 Power
Off Module not powered
Green Module powered
5 Run
Off Module not powered
Green, flashing 2
Hz
Module is in the PRE-OPERATIONAL state
Green Module is in the OPERATIONAL state
Green, single
flash
Modules in the STOPPED state
Red, flashing Bus initialisation fault
Reg.No. ME00107EN-02 Page 73

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
