YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Setup
15.3 Setup
The Interbus-S slave can run on either 500 kbit/s or 2 Mbit/s. The setting is made by switching a
jumper on the card when the card is unpowered.

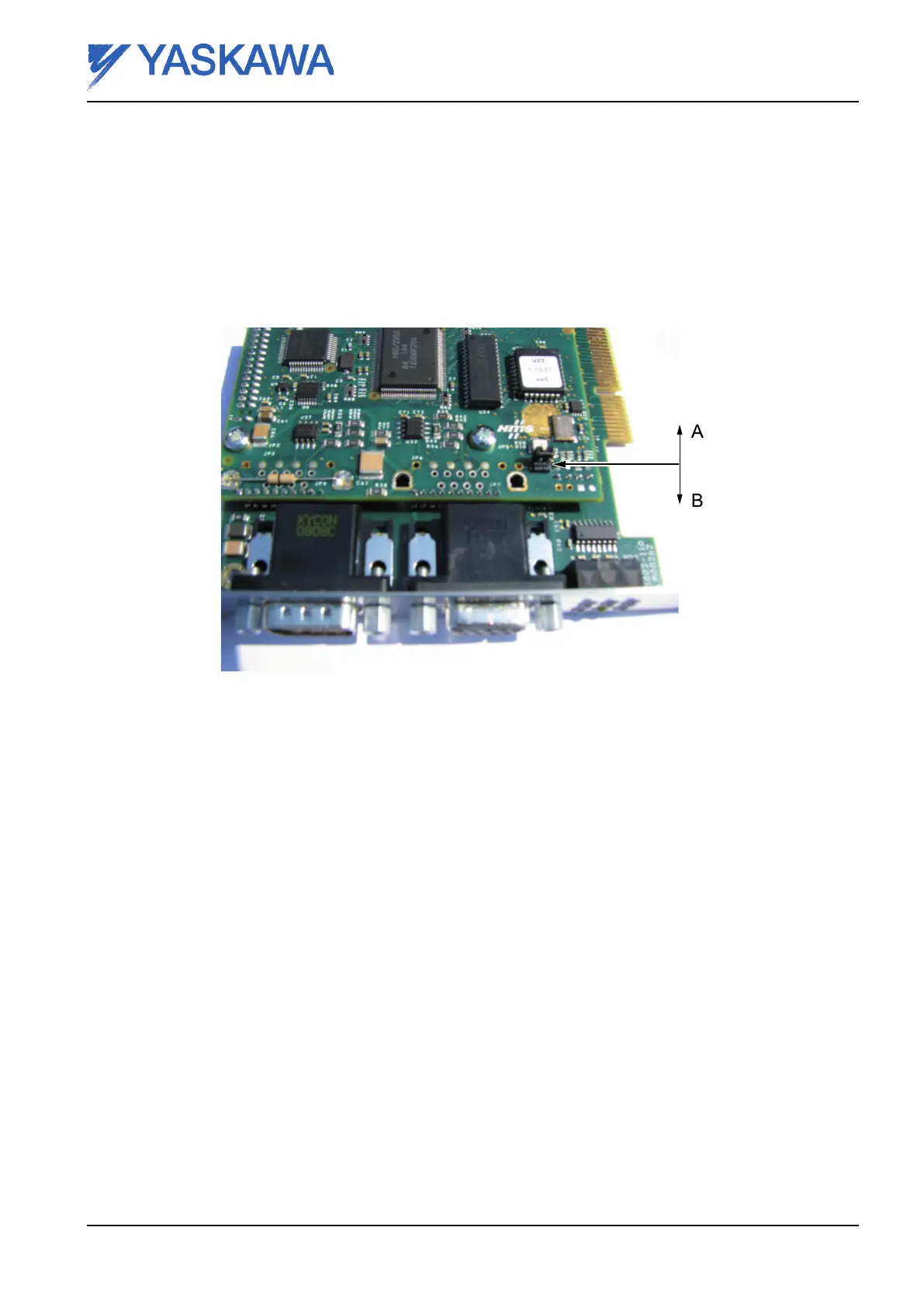

Referring to image below:
• Moving the jumper to the A-side sets baudrate 2 Mbit/s
• Moving the jumper to the B-side sets baudrate 500 kbit/s
A
B
Fig. 67 Switching baudrate: 500 kbit/s or 2 Mbit/s
Reg.No. ME00107EN-02 Page 71

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
