YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Card

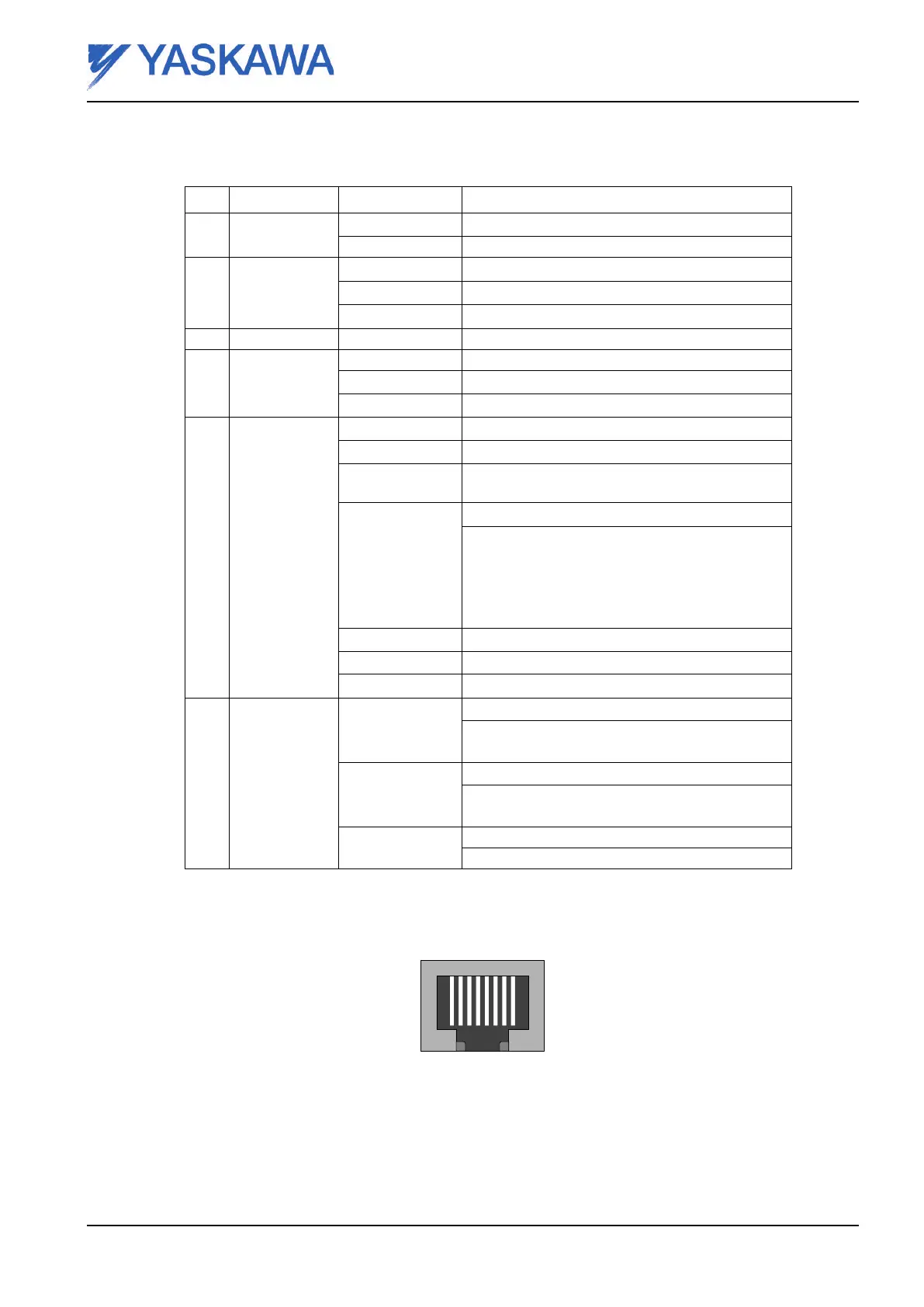

12.2.1 Status LEDs
No: Indication State
Meaning
1
Appl.
connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3
-
-
Not used
4
Link/Activity
Green Link established
Green, flashing Receiving/transmitting data
Off No link or power off
5 Module status
Green Initialized, no error
Green, 1 flash Diagnostic data available
Green, 2 flashes Blink. Used by an engineering tool to identify the
Anybus module
Red, 1 flash Configuration Error
Too many modules/submodules
I/O size derived from IO controller
configuration is too large
Configuration mismatch 8no module, wrong
module)
Red, 3 flashes No station name or no IP address assigned
Red, 4 flashes Internal Error
Off No power or not initialized
6
Communica-
tion status
Green Online, RUN
Connection with IO controller established
IO controller is in RUN state
Green, 1 flash Online, STOP
Connection with IO controller established
IO controller is in STOP state
Off Offline
No connection with IO controller
Fieldbus interface
1 8
Fig. 51 RJ45 female layout
Reg.No. ME00107EN-02 Page 59
