YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Card

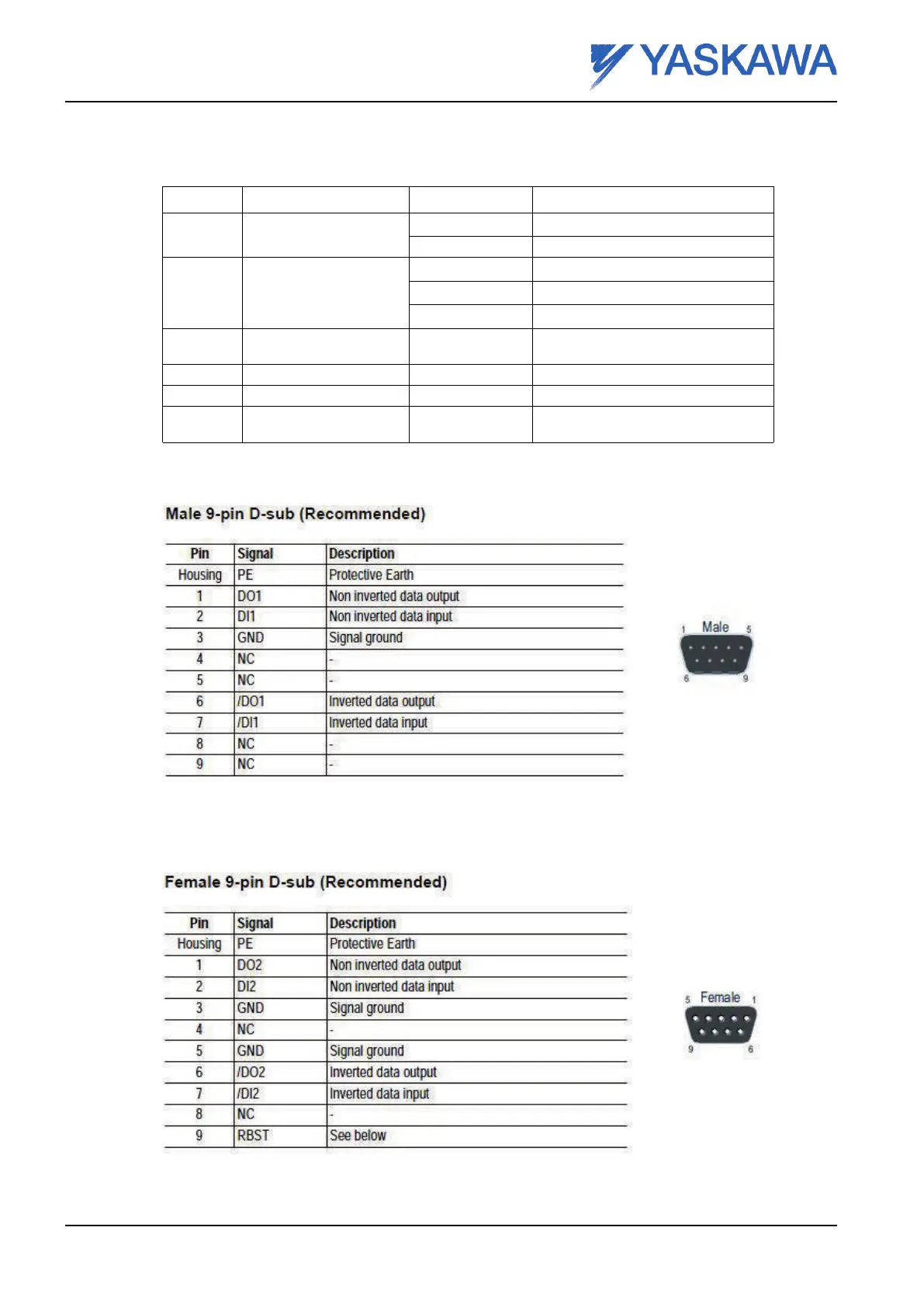

15.2.1 Status LEDs
No: Indication State
Meaning
1
Appl. connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3
CC/RC Green Cable connection is good and the
Interbus master is not in reset mode.
4 RD Yellow Remote bus disabled
5 BA Green Bus active
6
TR Green RCP-communication active. Hold
time = 500ms
Fieldbus connector bus IN
Fig. 65 Male 9-pin D-sub
Fieldbus connector bus OUT
Fig. 66 Female 9-pin D-sub
Page 70 Reg.No. ME00107EN-02
