DeviceNet Interface Details
8 DeviceNet Scanner Master AB3604
8.1 DeviceNet Interface Details
• Complete DeviceNet 2.0 scanner implementation according to ODVA
• Group 2 Client/Server/UCMM support
• Optically isolated DeviceNet interface
• Baud rate 125-500 kbit/s
• Up to 255 bytes input and 255 bytes output data
• Controls up to 63 DeviceNet slaves/Adapters
• Supports FLASH field upgrades
• Configuration via Anybus Nettool or RSNetworx
8.2 Card
Caution
The card contains ESD sensitive components. Observe ESD precautions when handling the
card.

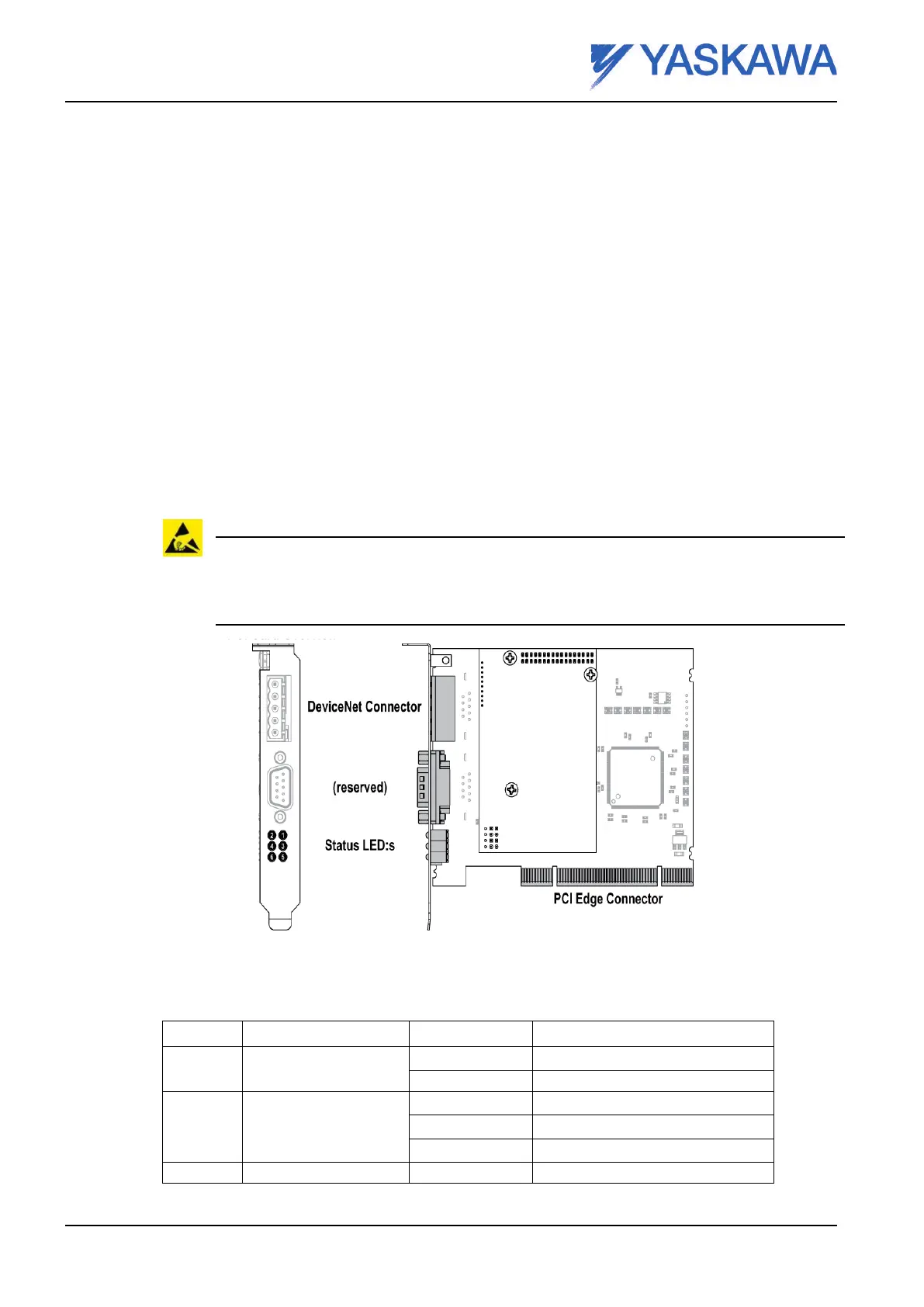

Fig. 24 PCI DeviceNet scanner (master)
8.2.1 Status LEDs
No: Indication State
Meaning
1
Appl. connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3
-
-
Not used
Page 36 Reg.No. ME00107EN-02
