Profibus interface details
6 Profibus DPV1 Master AB3602
6.1 Profibus interface details
• Complete Profibus class 1 and class 2 Master according to IEC 61158
• Up to 125 DP/DPV1 slaves can be connected
• Up to 255 bytes input and 255 bytes output data
• Supports Profibus baud rates up to 12 Mbit/s
• RS-485 optically isolated Profibus interface with on-board DC/DC converter
• Configuration via Anybus NetTool Windows based configuration software
6.2 Card
Caution
The card contains ESD sensitive components. Observe ESD precautions when handling the
card.

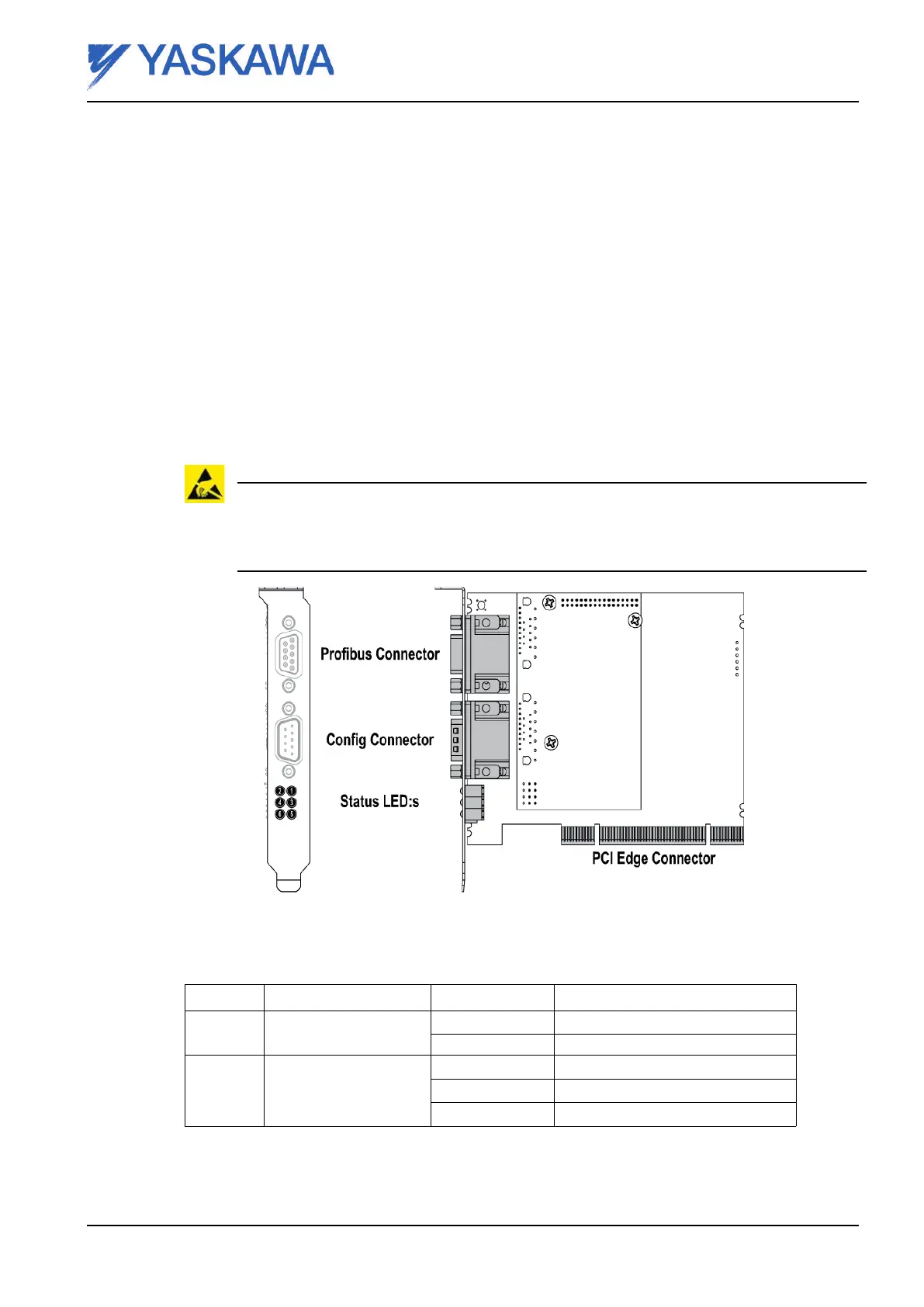

Fig. 20 PCI Profibus DPV1 Master card
6.2.1 Status LEDs
No: Indication State
Meaning
1
Appl. connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
Reg.No. ME00107EN-02 Page 29
