7 DeviceNet Adapter Slave AB3603
7.1 DeviceNet Interface Details
• Complete DeviceNet 2.0 Adapter implementationaccording to ODVA, group 2 only server
• DIP switch select baud rate and MACID
• Baud rate 125-500 kbit/s
• Optically isolated DeviceNet interface
• Up to 255 bytes input and 255 bytes output data
7.2 Card
Caution
The card contains ESD sensitive components. Observe ESD precautions when handling the
card.

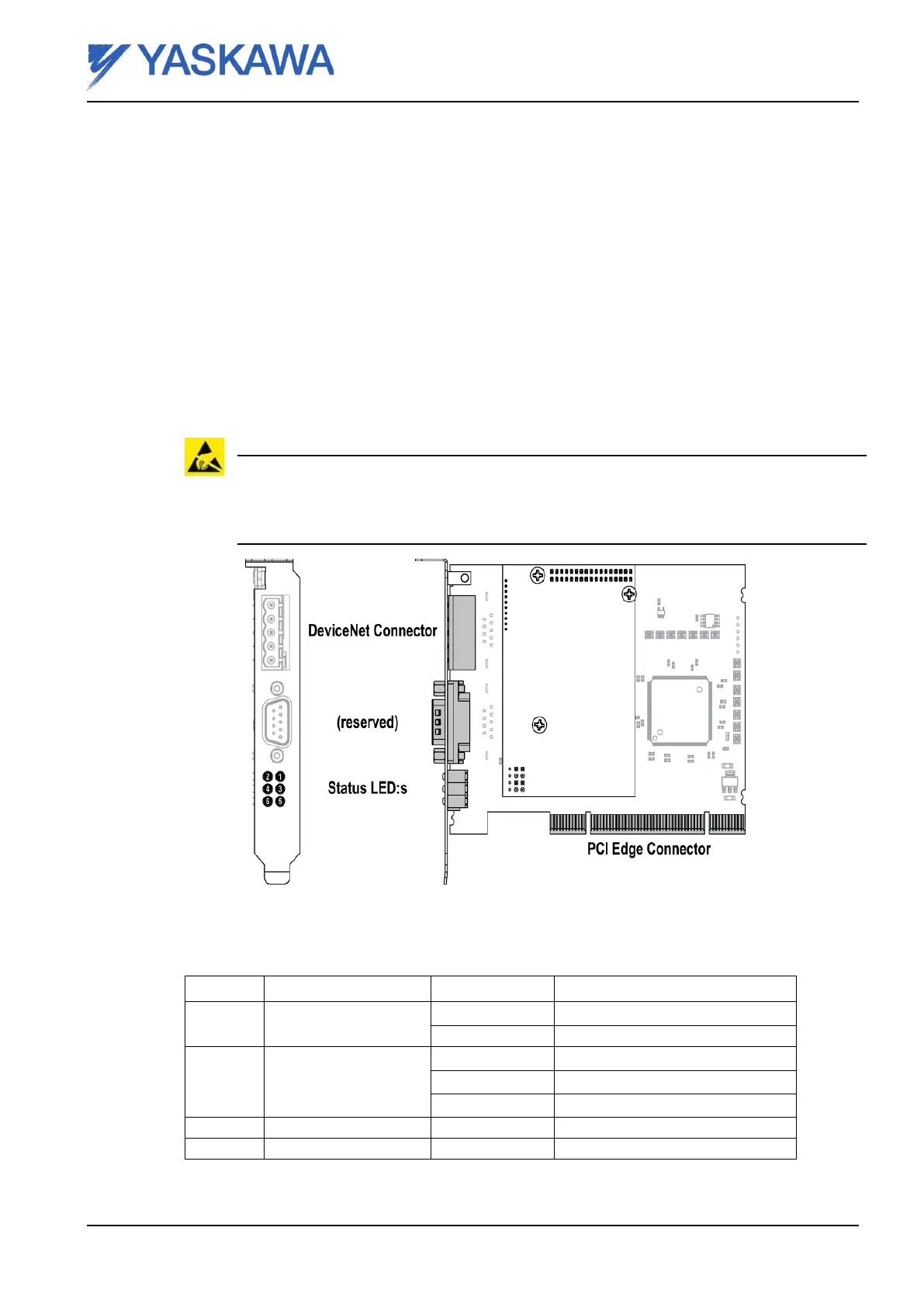

Fig. 22 PCI DeviceNet adapter (slave) card
7.2.1 Status LEDs
No: Indication State
Meaning
1
Appl. connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3
-
-
Not used
4
-
-
Not used
Reg.No. ME00107EN-02 Page 33
