YASKAWA NX100 - 9 AS-Interface Master AB3605; AS-Interface Master; Card; Status Leds

Fieldbus PCI-Card
AS-Interface Master
9 AS-Interface Master AB3605
9.1 AS-Interface Master
• Complete AS-Interace Master supporting version 2.1 and also backwards compatible with version
2.0
• Controls up to 62 AS-Interface slaves
• Up to 64 bytes input and 64 bytes output data
• Optically isolated interface
• Full extended master M1E
• Supports auto-configuration or configuration via RS-232 using standard Windows hyper-terminal
program on PC
9.2 Card
Caution
The card contains ESD sensitive components. Observe ESD precautions when handling the
card.

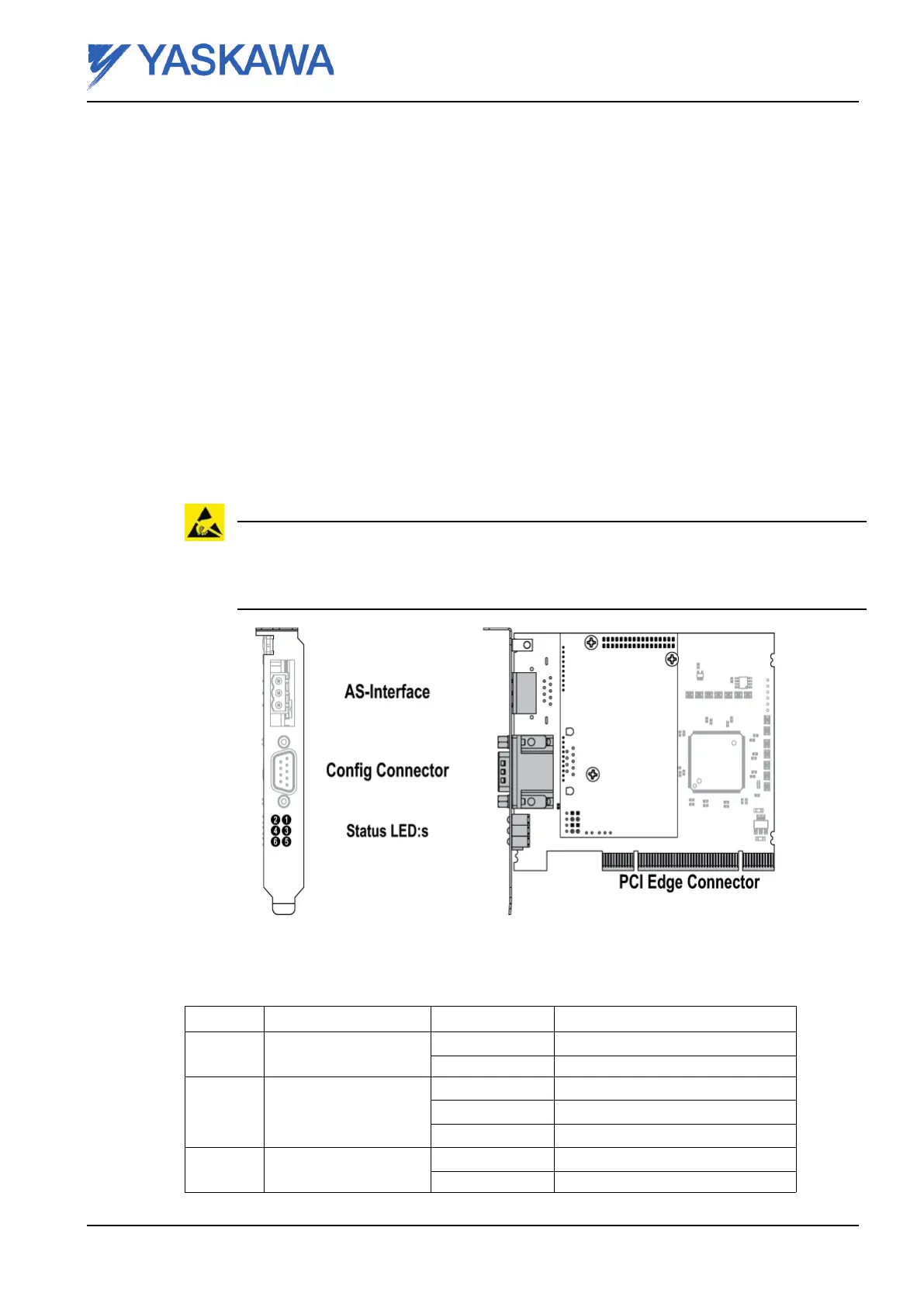

Fig. 26 PCI AS-Interface Master
9.2.1 Status LEDs
No: Indication State
Meaning
1
Appl. connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3
Running/Idle
Green Module is in running mode
Red Module is in idle mode
Reg.No. ME00107EN-02 Page 39
