YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Card

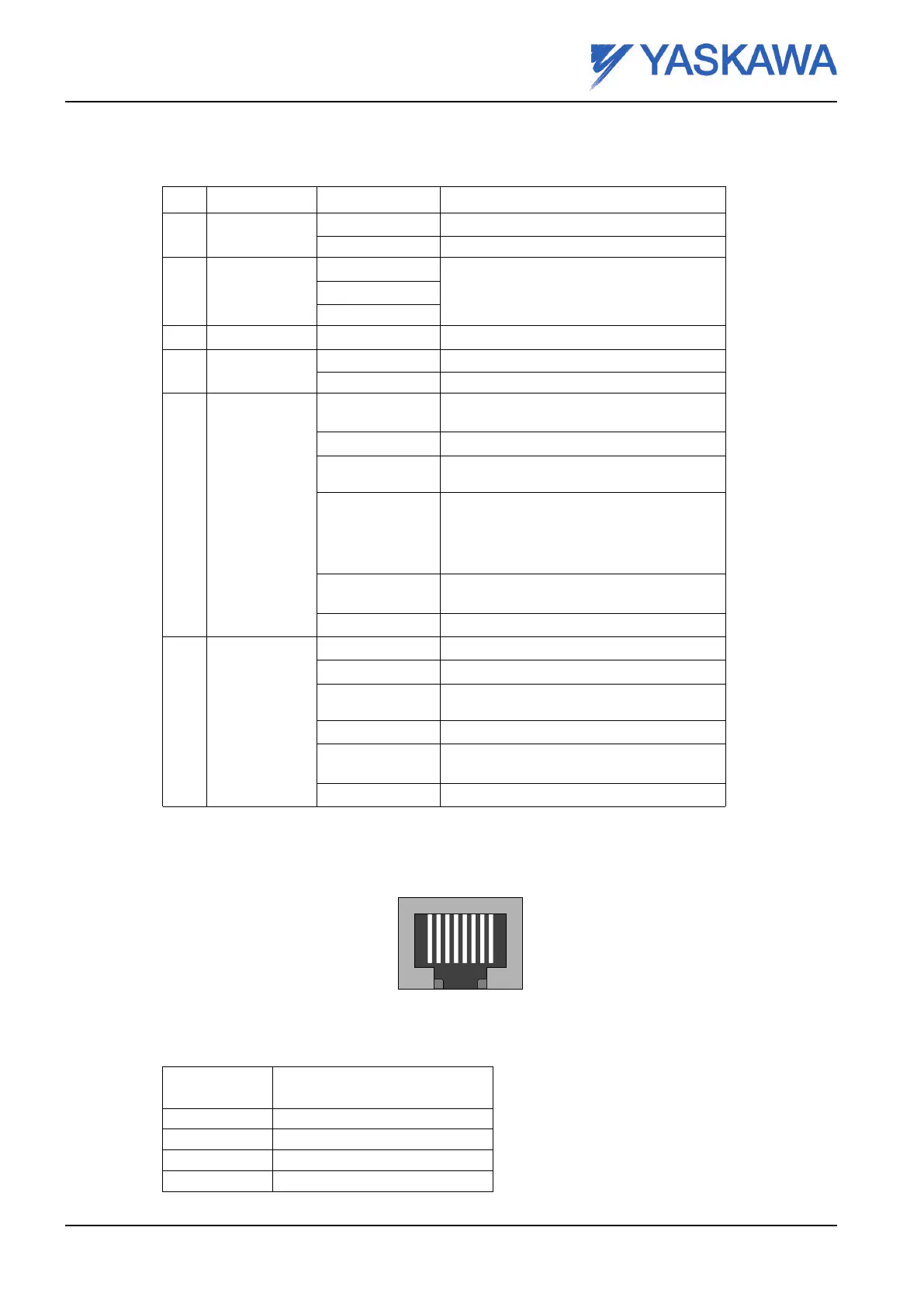

10.2.1 Status LEDs
No: Indication State
Meaning
1
Appl.
connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing
I/O ACCESSRed, flashing
Off
3
Activity Green, flashing A packet is received or transmitted
4
-
Green, Link detected
Off Link not detected
5 Network status
Green On-line, one or more connections
established (CIP Class 1 or 3)
Green, flashing On-line, no connections established
Red Duplicate IP- Configured IP address already
in use
Red, flashing Connection timeout. One or more of the
connections in which this module is the
target has timed-out. This state is only left if
all timed-out connections are re-established
or if the module is reset.
Alternating red/
green
Self test in progress
Off No power or no IP address
6 Module status
Green Controlled by a Scanner in Run state
Green, flashing Not configured, or Scanner in Idle state
Red A major unrecoverable fault has been
detected
Red, flashing A minor recoverable fault has been detected
Alternating red/
green
Self-test in progress
Off No power
Fieldbus interface
1 8
Fig. 43 RJ45 female layout
Pin RJ45
(Female) Signal
1 TD+
2 TD-
3 RD+
4 Termination
Page 50 Reg.No. ME00107EN-02

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
