YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
PROFINET-IO Slave Interface Details
12 PROFINET-IO Slave AB3609
12.1 PROFINET-IO Slave Interface Details
• Complete PROFINET-IO device functionality
• Max. 255 bytes of input and 255 bytes output data
• 100 Mbit full duplex transmission
• RJ45 connector
• Powerful 32 Bit processor for short cycle times
• GSD file for easy configuration
12.2 Card
Caution
The card contains ESD sensitive components. Observe ESD precautions when handling the
card.

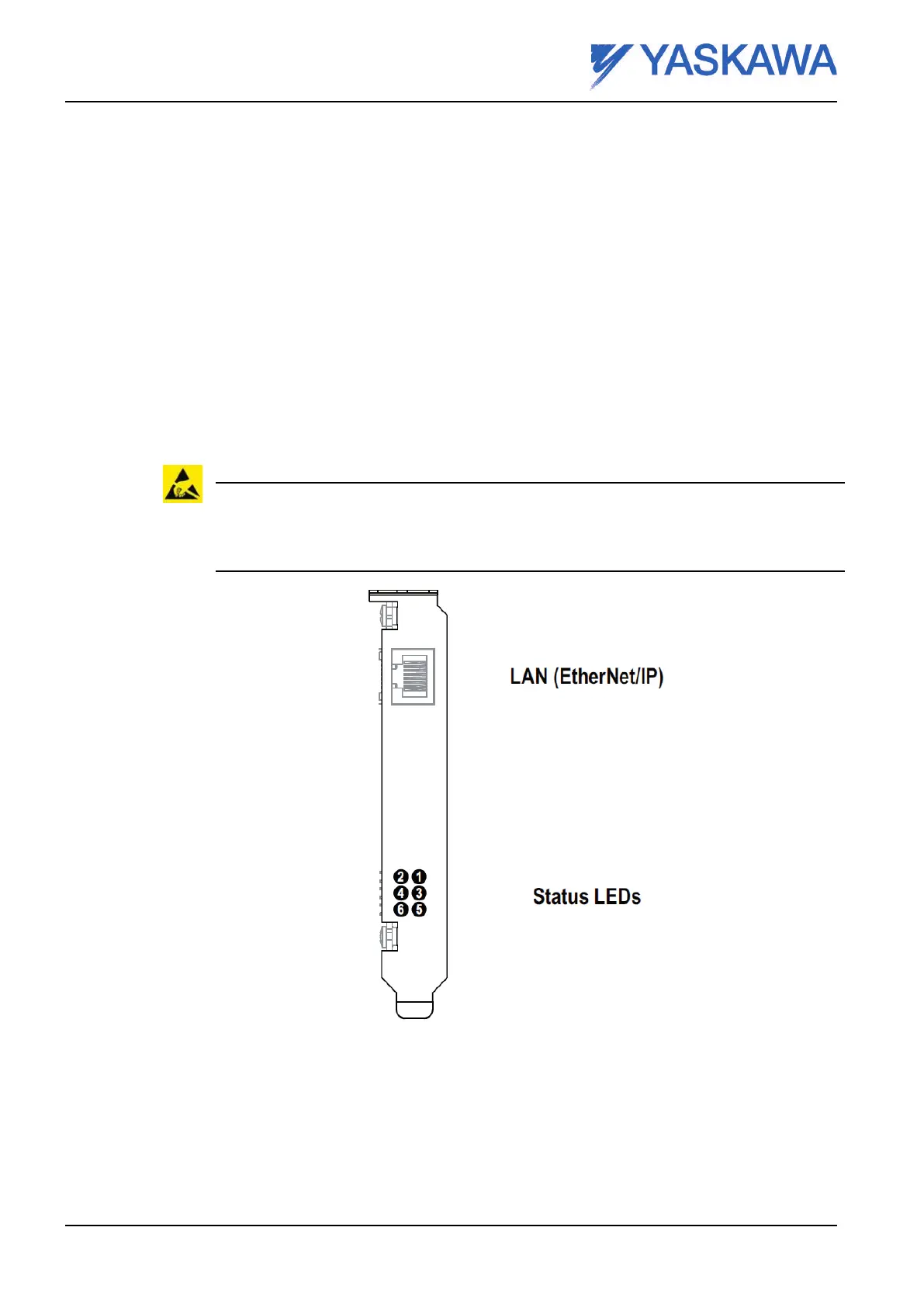

Fig. 50 EtherNet/ProfiNet/FL-Net card
Page 58 Reg.No. ME00107EN-02

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
