YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Network setup

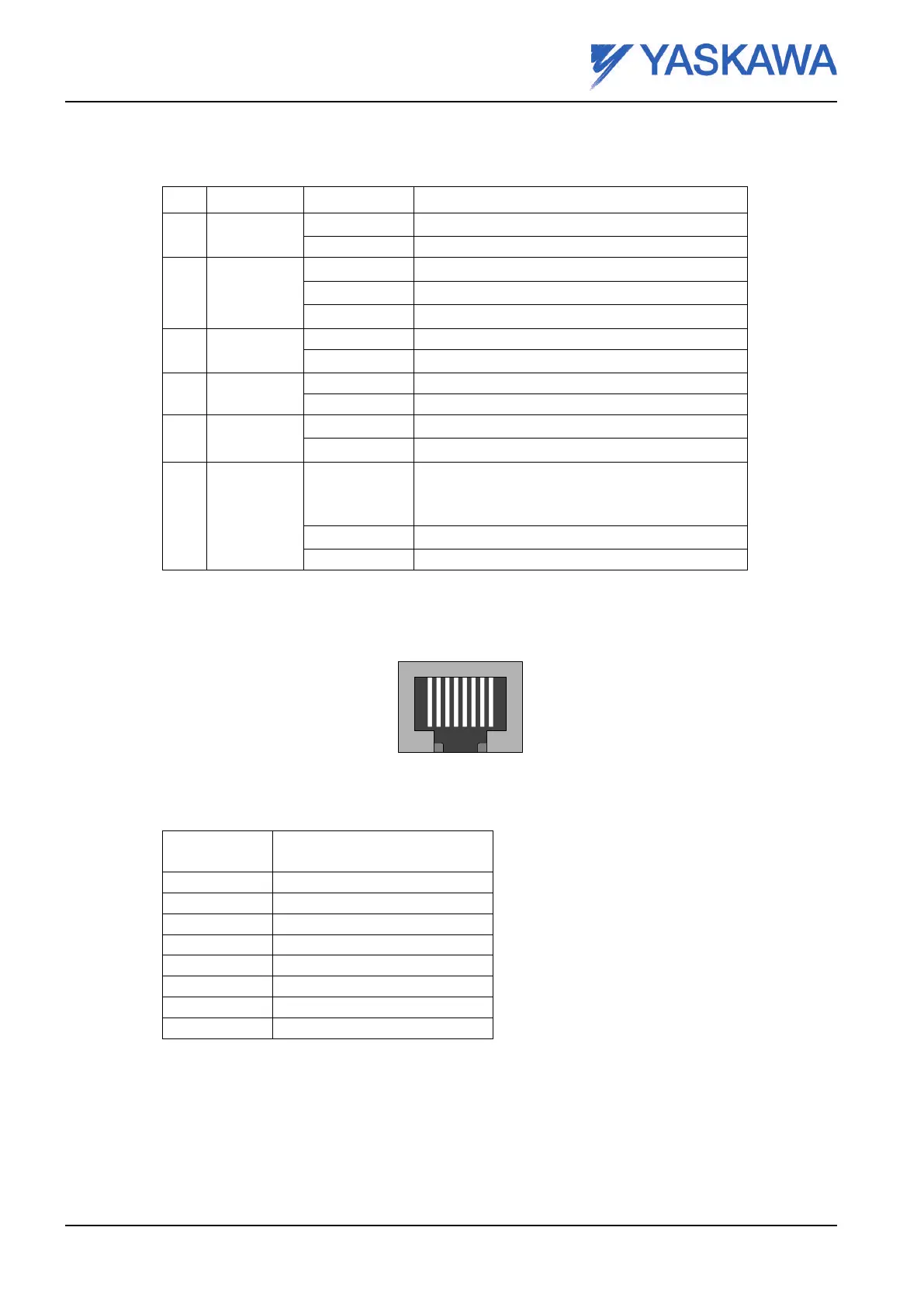

13.2.1 Status LEDs
No: Indication State
Meaning
1
Appl.
connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3 COM
Green Packet received or transmitted
Off No activity
4 LNK
Green Link established
Off No link established
5 FL-LNK
Green Participating on FL-Net
Off Not participating on FL-Net
6 ERR
Red Unit needs to be replaced (e.e. invalid MAC ID)
or
Anybus watchdog enabled and not updated properly
Red, flashing Parameter error
Off Normal state
Fieldbus interface
1 8
Fig. 53 RJ45 female layout
Pin RJ45
(Female) Signal
1 TD+
2 TD-
3 RD+
4 Termination
5 Termination
6 RD-
7 Termination
8 Termination
13.3 Network setup
The IP address on the board is set with the HMS “Anybus IPconfig” tool which can be downloaded
from the HMS support webpage.
See section 4 General installation in IP-based networks.
Page 62 Reg.No. ME00107EN-02

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
