YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
EtherNet/IP Scanner master interface details
11 EtherNet/IP Scanner Master AB3607
11.1 EtherNet/IP Scanner master interface details
• Complete EtherNet/IP Scanner (master)” interface
• Dual Port (DPRAM) parallel interface
• EtherNet/IP level 4 I/O client - ODVA certified
• Transformer isolated Ethernet interface
• Up to 255 bytes input and 255 bytes output data
11.2 Card
Caution
The card contains ESD sensitive components. Observe ESD precautions when handling the
card.

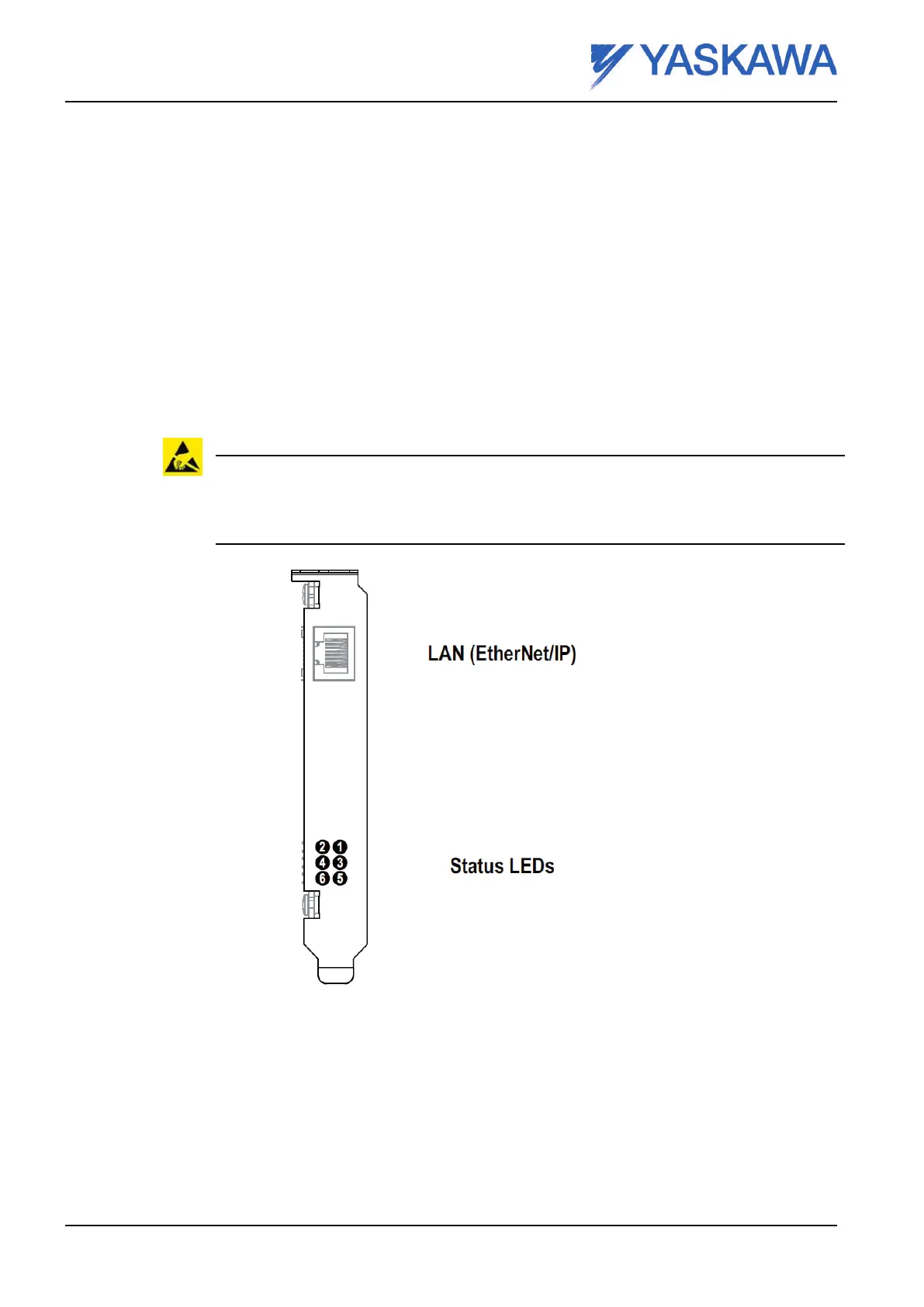

Fig. 44 EtherNet/ProfiNet/FL-Net card
Page 52 Reg.No. ME00107EN-02

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
