YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Configuration interface
To activate the configuration interface, press [Enter]. Note that data exchange and mailbox activity
will be halted until the RS232 cable is physically disconnected.
Main menu
The following menu entries are available from the main menu. Detailed information of each menu
entry is presented in the following pages.

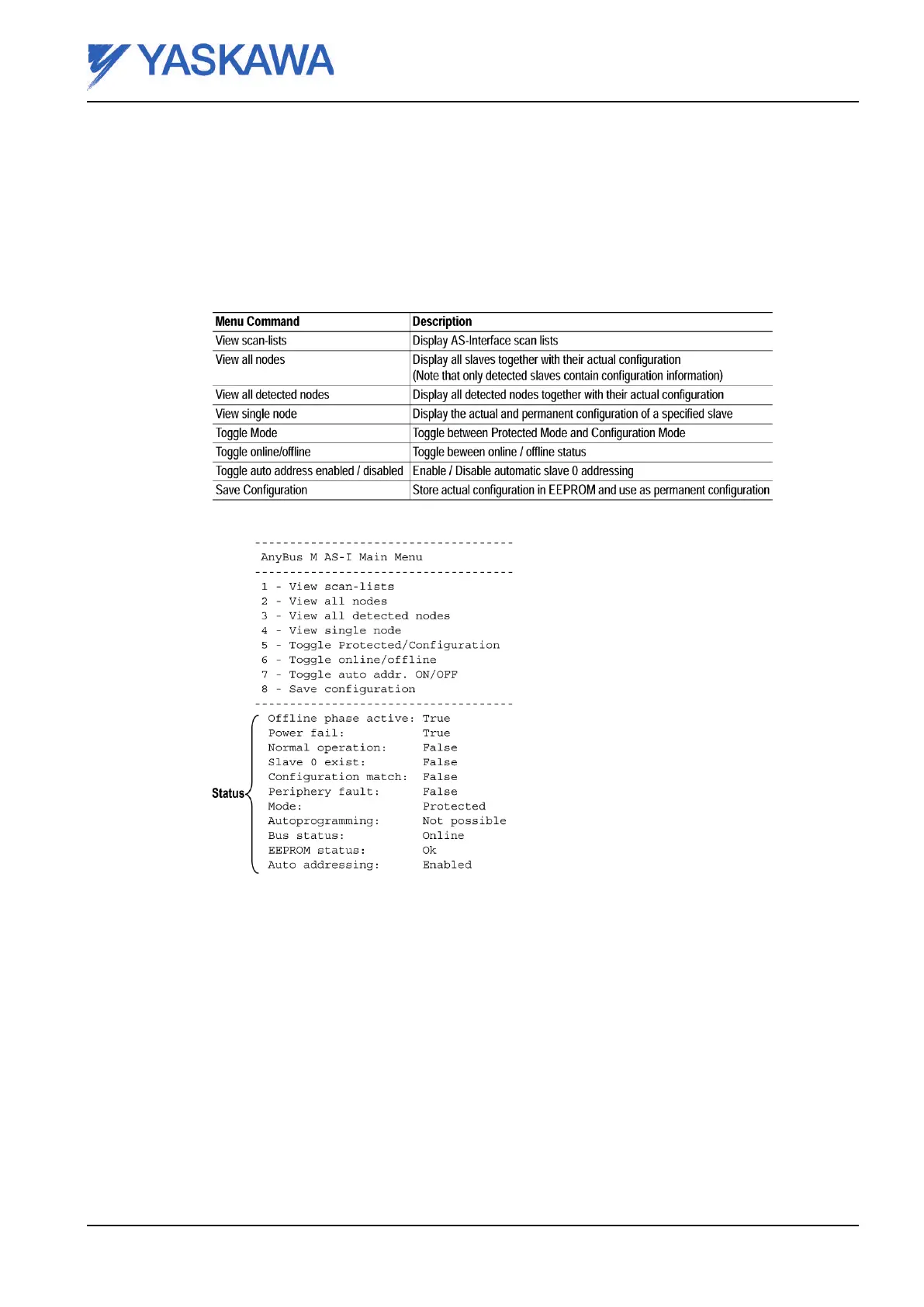

Fig. 31 Main menu
The status section reflects the contents of the AS-Interface flag bytes.
View scan-lists
This command displays all network status lists in the format shown in Fig. 32 Scan-list.
Reg.No. ME00107EN-02 Page 43

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
