YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Setup

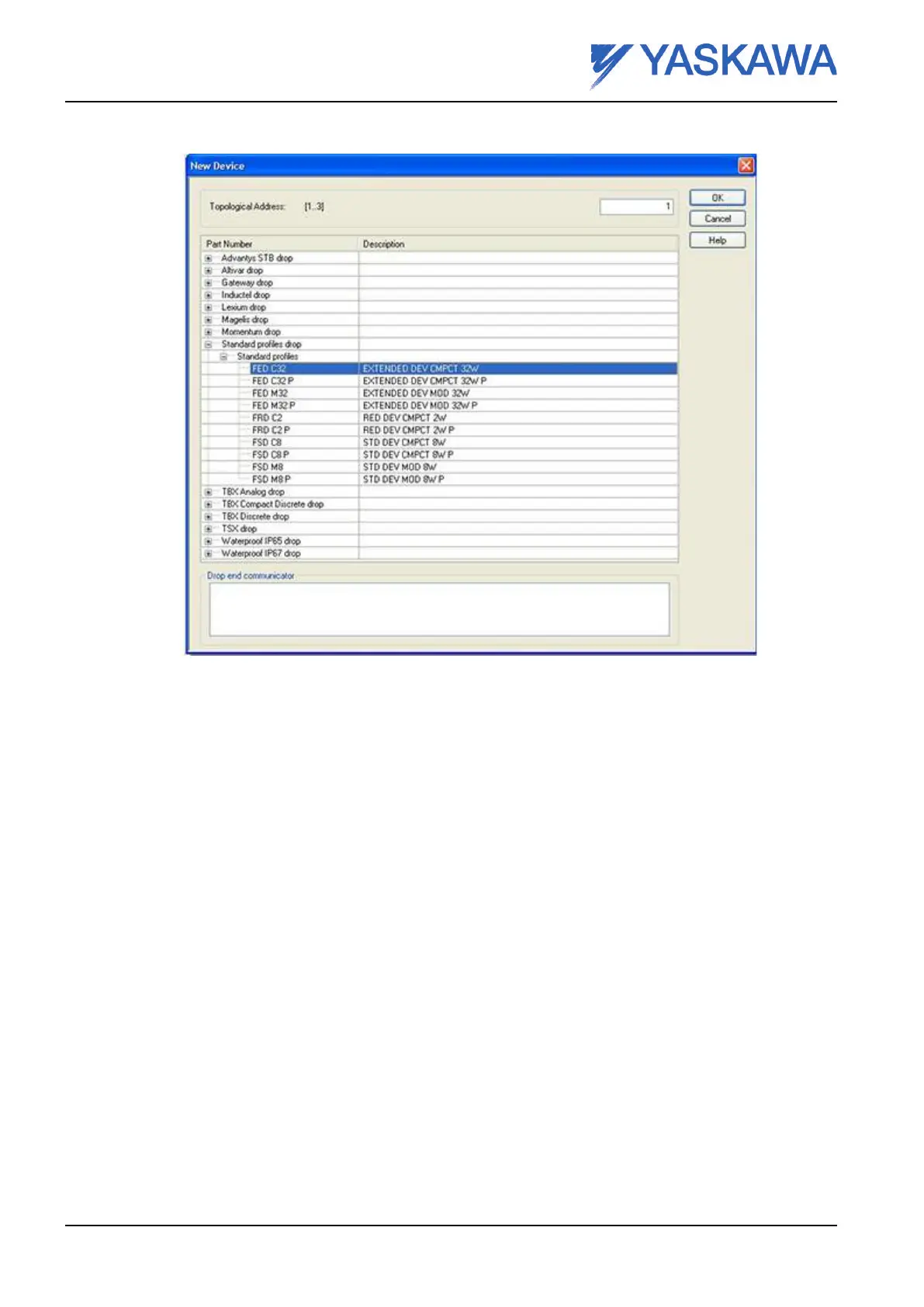

Fig. 57 Choose profile
After configuring the node it creates a number of I/O objects. Note that FRD is addressed via bits and
FED/FSD via words
FED C32: %IW\2.nod nb\0.0.0.0 - %IW\2.nod nb\0.0.0.31
%QW\2.nod nb\0.0.0.0 - %QW\2.nod nb\0.0.0.31
FSD C8: %IW\2.nod nb\0.0.0.0 - %IW\2.nod nb\0.0.0.8
%IW\2.nod nb\0.0.0.0 - %IW\2.nod nb\0.0.0.8
FRD C2 %I\2.nod nb\0.0.0 - %IW\2.nod nb\0.0.31
%Q\2.nod nb\0.0.0 - %QW\2.nod nb\0.0.31
Page 66 Reg.No. ME00107EN-02
