2 System Selection
2.4.1 Cables for SGMAH and SGMPH Servomotors
2-8

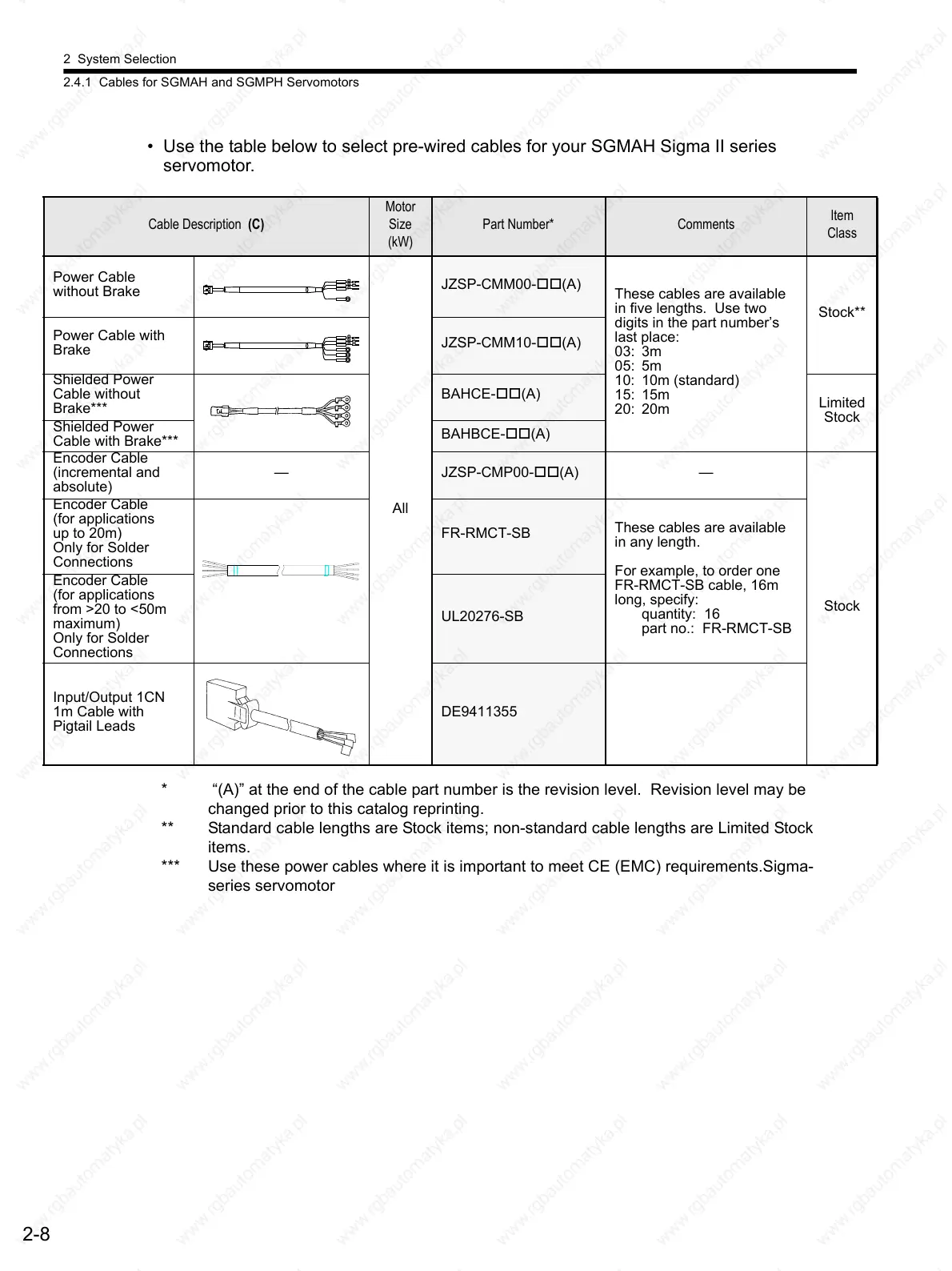

• Use the table below to select pre-wired cables for your SGMAH Sigma II series
servomotor.
* “(A)” at the end of the cable part number is the revision level. Revision level may be
changed prior to this catalog reprinting.
** Standard cable lengths are Stock items; non-standard cable lengths are Limited Stock
items.
*** Use these power cables where it is important to meet CE (EMC) requirements.Sigma-
series servomotor
Cable Description (C)
Motor
Size
(kW)
Part Number* Comments
Item
Class
Power Cable
without Brake
All
JZSP-CMM00-(A)
These cables are available
in five lengths. Use two
digits in the part number’s
last place:
03: 3m
05: 5m
10: 10m (standard)
15: 15m
20: 20m
Stock**
Power Cable with
Brake
JZSP-CMM10-(A)
Shielded Power
Cable without
Brake***
BAHCE-(A)
Limited
Stock
Shielded Power
Cable with Brake***
BAHBCE-(A)
Encoder Cable
(incremental and
absolute)
— JZSP-CMP00-(A) —
Stock
Encoder Cable
(for applications
up to 20m)
Only for Solder
Connections
FR-RMCT-SB
These cables are available
in any length.
For example, to order one
FR-RMCT-SB cable, 16m
long, specify:
quantity: 16
part no.: FR-RMCT-SB
Encoder Cable
(for applications
from >20 to <50m
maximum)
Only for Solder
Connections
UL20276-SB
Input/Output 1CN
1m Cable with
Pigtail Leads
DE9411355
To Next Page
