YASKAWA SGDS-***12A Series User Manual

2.4 Selecting Cables
2-9

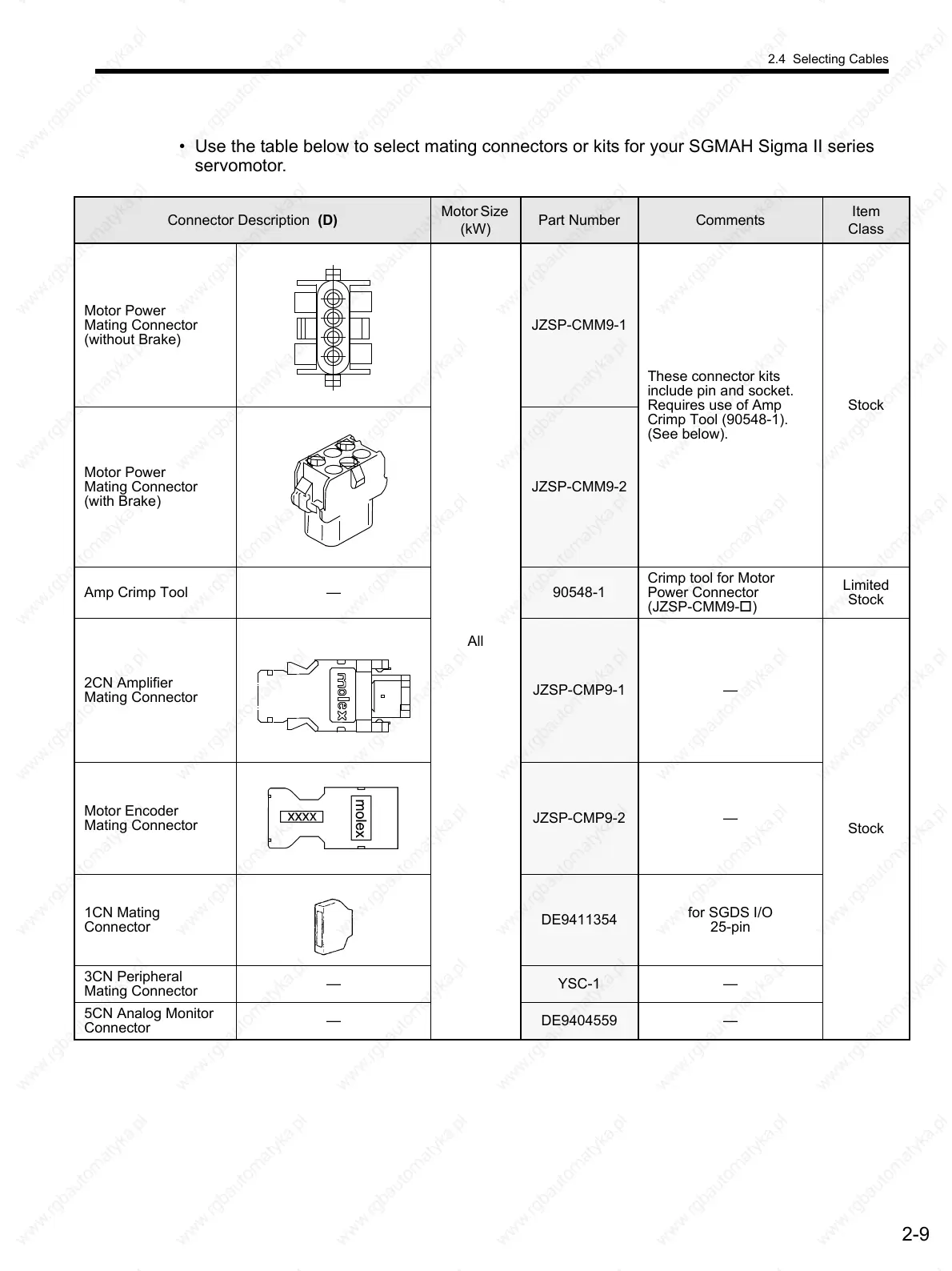

• Use the table below to select mating connectors or kits for your SGMAH Sigma II series
servomotor.
Connector Description (D)
Motor Size
(kW)
Part Number Comments
Item
Class
Motor Power
Mating Connector
(without Brake)
All
JZSP-CMM9-1
These connector kits
include pin and socket.
Requires use of Amp
Crimp Tool (90548-1).
(See below).
Stock
Motor Power
Mating Connector
(with Brake)
JZSP-CMM9-2
Amp Crimp Tool —
90548-1
Crimp tool for Motor
Power Connector
(JZSP-CMM9-)
Limited
Stock
2CN Amplifier
Mating Connector
JZSP-CMP9-1 —
Stock
Motor Encoder
Mating Connector
JZSP-CMP9-2 —
1CN Mating
Connector
DE9411354
for SGDS I/O
25-pin
3CN Peripheral
Mating Connector
—
YSC-1 —
5CN Analog Monitor
Connector
—
DE9404559 —
