YASKAWA SGM H Series - Three-Phase 200 V: 500 W;750 W;1.0 Kw (05 AD-R to 10 AD-R, 05 ADA-R to 10 ADA-R)

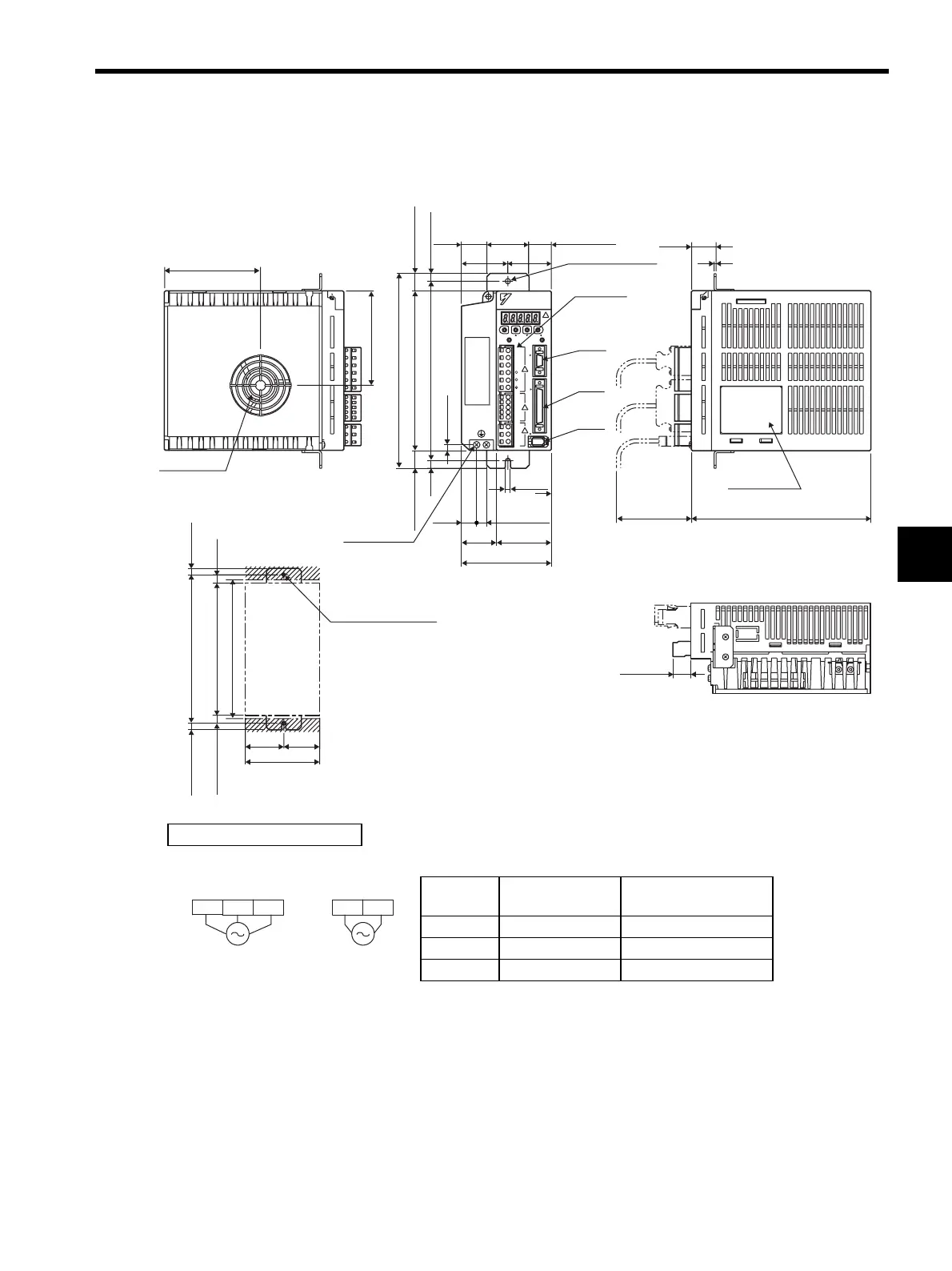

4.8 Dimensional Drawings of Rack-mounted SERVOPACK Model
4-27
4
4.8.3 Three-phase 200 V: 500 W/750 W/1.0 kW
(05AD-R to 10AD-R, 05ADA-R to 10ADA-R)
Mounting Hole Diagram
96.2 (3.79)
180 (7.09)
17 (0.67)
7.5 (0.30)
10 (0.39)*
160 (6.30)
90 (3.54)
180 (7.09)
94.4
(3.72)
7.5 (0.30)
7.5
(0.30)
195 (7.68)
160 (6.30)
17.5 (0.69)
17.5 (0.69)
6 (0.24)
90 (3.54)
55 (2.17)
35
(1.38)
10 (0.39)
15
(0.59)
5 (0.20)
42 (1.65)
46.5
(1.83)
43.5
(1.71)
25.5
(1.00)
2
(0.08)
24.5
(0.96)
φ
46.5
(1.83)
Cooling fan
7.5 (0.30)*
CN3
CN2
CN1
YASKAWA
YASKAWA
SERVOPACK200V
SGDM-
75* (2.95)
5 (φ 0.20) hole
180±0.5 (7.09±0.02)
Min.168 (6.61)
2×M4 screw holes
43.5
(1.71)*
10 (0.39)
22.5 (0.89)*
CHANGE
MODE/SET
DATA/
POWER
L1
C
N
3
L2
L3
L2C
B1
B2
B3
U
V
W
L1C
+ 1
+ 2
C
N
1
C
N
2
Ground
terminal
2×M4 screws
Terminal
block
Nameplate
(Mounting pitch)
* Reference length
Units: mm (in)
Approx. mass: 1.9 kg (4.19 lb)
External Terminal Connector
SERVOPACK Connector
Connector
Symbol
SERVOPACK
Connector Model
Manufacturer
CN1 10250-52A2JL Sumitomo 3M Co., Ltd.
CN2 53460-0611 Molex Japan Co., Ltd.
CN3 10214-52A2JL Sumitomo 3M Co., Ltd.
Three-phase
200 VAC
50/60 Hz
Single-phase
200 VAC
50/60 Hz
L2 L3L1 L1C L2C
Main circuit
power supply
Control power
supply
