5.1 Specifications and Dimensional Drawings of Servomotor Main Circuit Cable
5-7
5

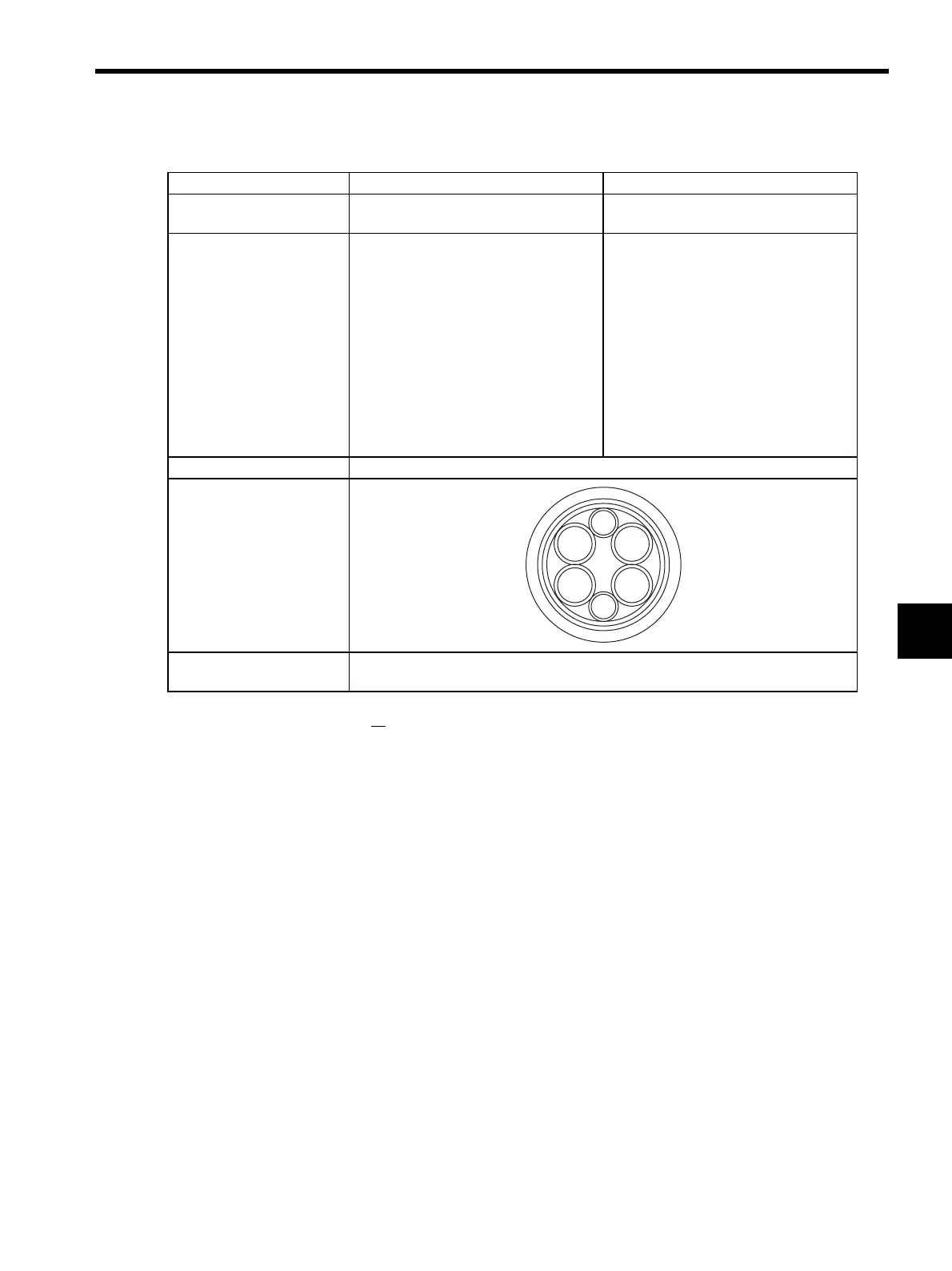

(3) Cable Specifications for SGMCS Servomotors
* Specify the cable length in of cable type designation
Example: JZSP-CSM90-15
(15 m (49.2 ft))
Items Standard Cable Flexible Cable
Cable Type Designation *
JZSP-CSM90-
(20m (65.6 ft) max.)
JZSP-CSM80-
(20m (65.6 ft) max.)
Specifications UL2517 (Max. operating temperature:
105 °C (221
°F))
AWG20 × 6C
For power line: AWG20 (0.52 mm
2
(0.205 in
2
))
Outer diameter of insulating sheath:
φ 1.53 mm (0.06 in)
For brake line: AWG20 0.52 mm
2
(0.205 in
2
))
Outer diameter of insulating sheath:
φ 1.53 mm (0.06 in)
UL2517 (Max. operating temperature:
105 °C (221
°F))
AWG22 × 6C
For power line: AWG22 (0.33 mm
2
(0.013 in
2
))
Outer diameter of insulating sheath:
φ 1.37 mm (0.054 in)
For brake line: AWG22 (0.33 mm
2
(0.013 in
2
))
Outer diameter of insulating sheath:
φ 1.37 mm (0.054 in)
Finished Dimension
φ 7 ± 0.3 mm (φ 0.276±0.012 in)
Internal Configuration
and Lead Color
Yaskawa Standard Specifi-
cations (Standard Length)
5m (16.4 ft), 10m (32.8 ft), 15m (49.2 ft), 20m (65.6 ft)
Black
Black
Blue Red
White
Green/
(Yellow)
