5.2 Servomotor Main Circuit Wire Size and Connectors
5-11
5

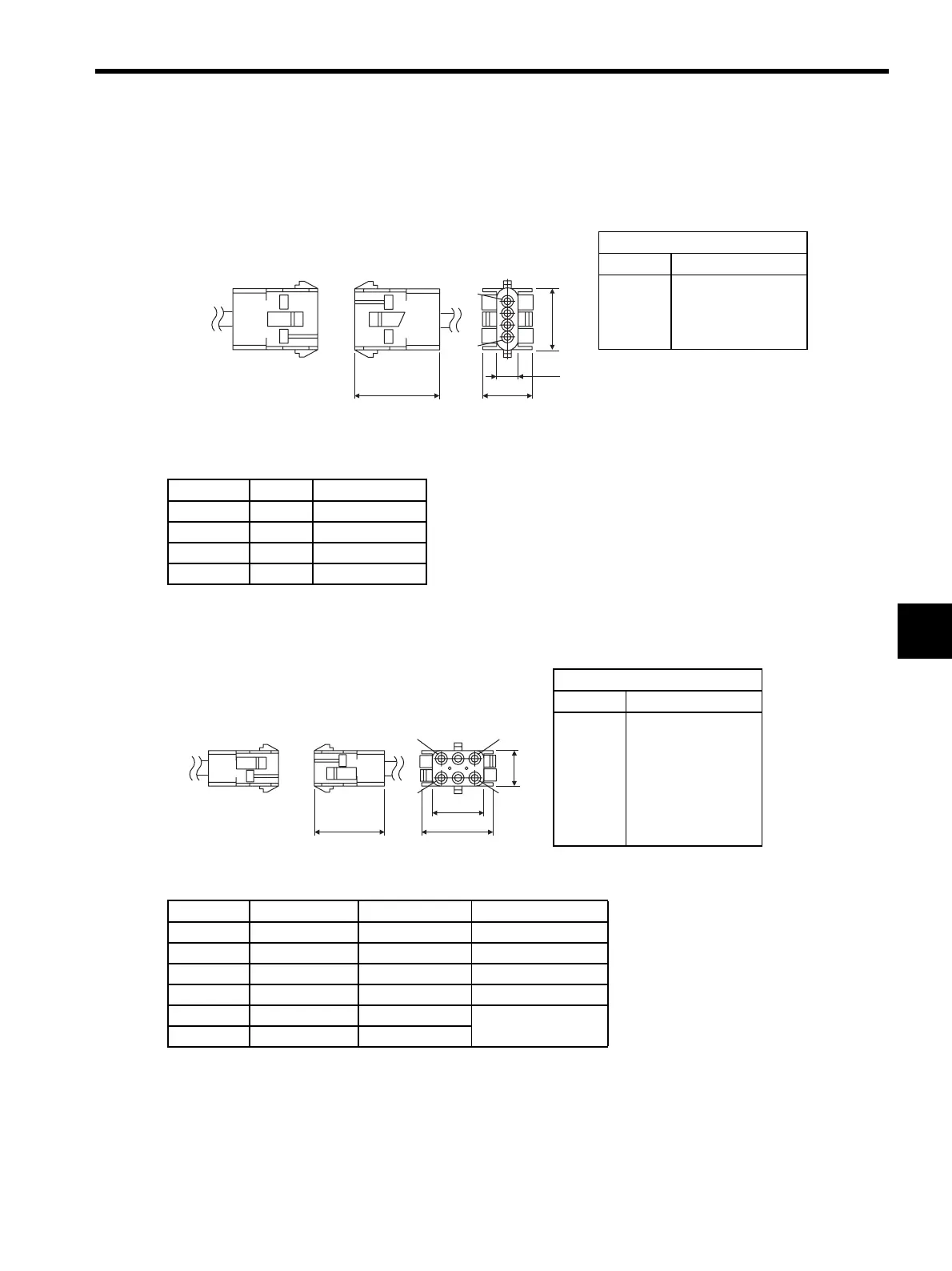

(5) 1.5 kW SGMPH Servomotors Without Brakes
(a) Connector Type: JZSP-CMM9-3
(b) Connector Pin Arrangement
(6) 1.5 kW SGMPH Servomotors With Brakes
(a) Connector Type: JZSP-CMM9-4
(b) Connector Pin Arrangement
Type
Cap 350780-1
Socket
350536-6 or
350550-6
(No. 1 to 4)
Soldered type
Pin No. Signal Lead Color
1Phase U Red
2 Phase V White
3 Phase W Blue
4 FG Green/Yellow
14.7 (0.58)
27.4 (1.08)
7.6 (0.30)
4
1
27.7 (1.09)
Connector on
servomotor
Servomotor main
circuit connector
Units: mm (in)
Type
Cap 350781-1
Socket
350536-6 or
350550-6
(No. 1 to 4)
350570-3 or
350689-3
(No. 5 and 6)
Soldered type
Pin No. Signal Lead Color Remarks
1Phase U Red −
2 Phase V White −
3 Phase W Blue −
4 FG Green/Yellow −
5 Brake terminal Black
No polarity
6 Brake terminal Black
28.4 (1.12)
20.3 (0.80)
6
3
1
4
27.4 (1.08)
14 (0.55)
Connector on
servomotor
Units: mm (in)
Servomotor main
circuit connector
