5.2 Servomotor Main Circuit Wire Size and Connectors
5-27
5

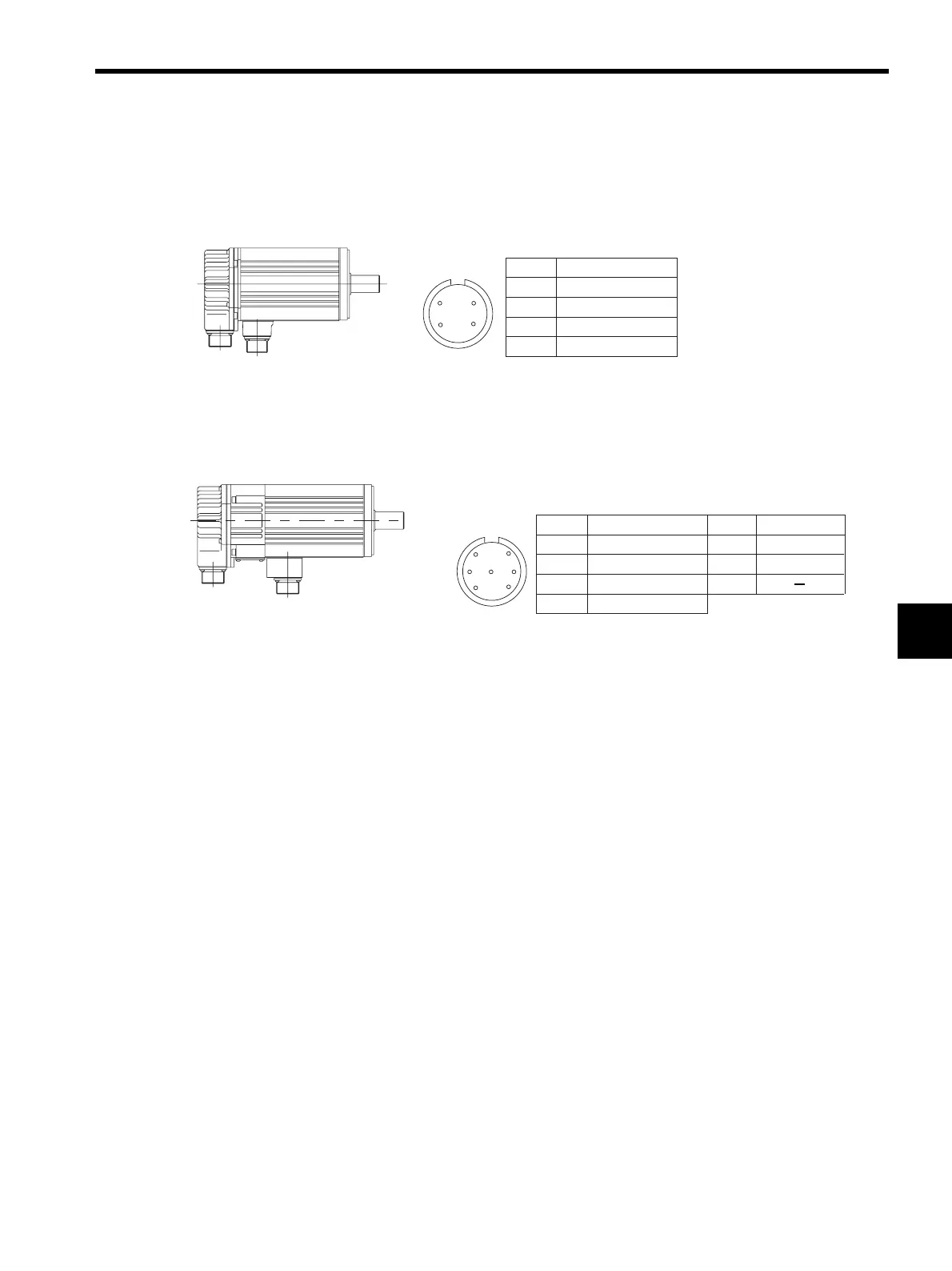

(3) Servomotor Main Circuit Connector Pin Arrangement
(a) Without Brakes
(b) With Brakes
1.0 to 5.0 kW
Servomotor-end
connector
Servomotor Connector Pin Arrangement
A
B
C
D
Phase U
Phase V
Phase W
FG (Frame Ground)
Pin No. Signal
D
BC
A
1.0 to 5.0 kW
Servomotor-end
connector
Servomotor Connector Pin Arrangement
D
B
G
C
AF
E
A
B
C
D
Phase U
Phase V
Phase W
FG (Frame Ground)
Pin No. Signal
E *
F *
G
Brake terminal
Brake terminal
Pin No. Signal
* No polarity
