5.2 Servomotor Main Circuit Wire Size and Connectors
5-33
5

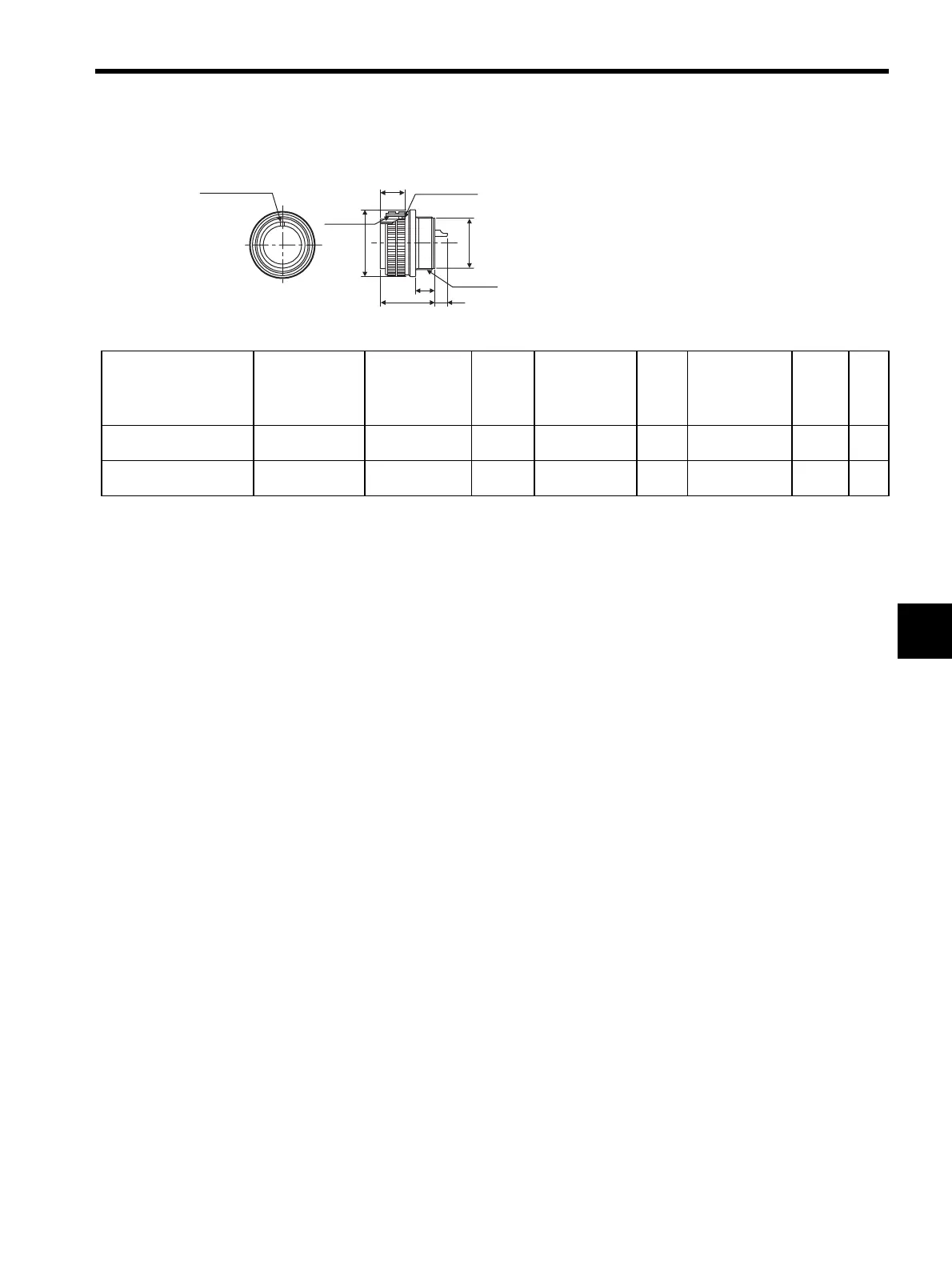

(d) Plug
Note: 1. The plug CE05-6A-P-B is pin inserting type. The mating receptacle is socket inserting type.
2. Consult the conduit manufacturer if a conduit is required.
Gasket
A screw
(J)
E
LH
φQ
φB
V screw
Positioning key
Units: mm (in)
Model
Joint Screw
A
Outer Diameter
of Nut
φQ
Overall
Length
L±1
(±0.04)
Conduit
Mounting
Screw
V
E±0.5
(±0.02)
φB
H±0.1
(±0.004)
(J)
CE05-6A10SL-3SC-B
5/8-24UNEF-2B
22.22 (0.87)
23.3
(0.92)
9/16-24UNEF-2A
7.5
(0.30)
12.5 (0.49)
5.6
(0.22)
13.2
(0.52)
CE05-6A18-10SD-B
1 1/8-18UNEF-2B
34.13 (1.34)
33.7
(1.33)
1-20UNEF-2A
11.74
(0.46)
23.5 (0.93)
6.4
(0.25)
19.0
(0.75)
+0
-0.38 (-0.015)
+0.05 (+0.002)
-0.25 (-0.010)
