5.2 Servomotor Main Circuit Wire Size and Connectors
5-37
5

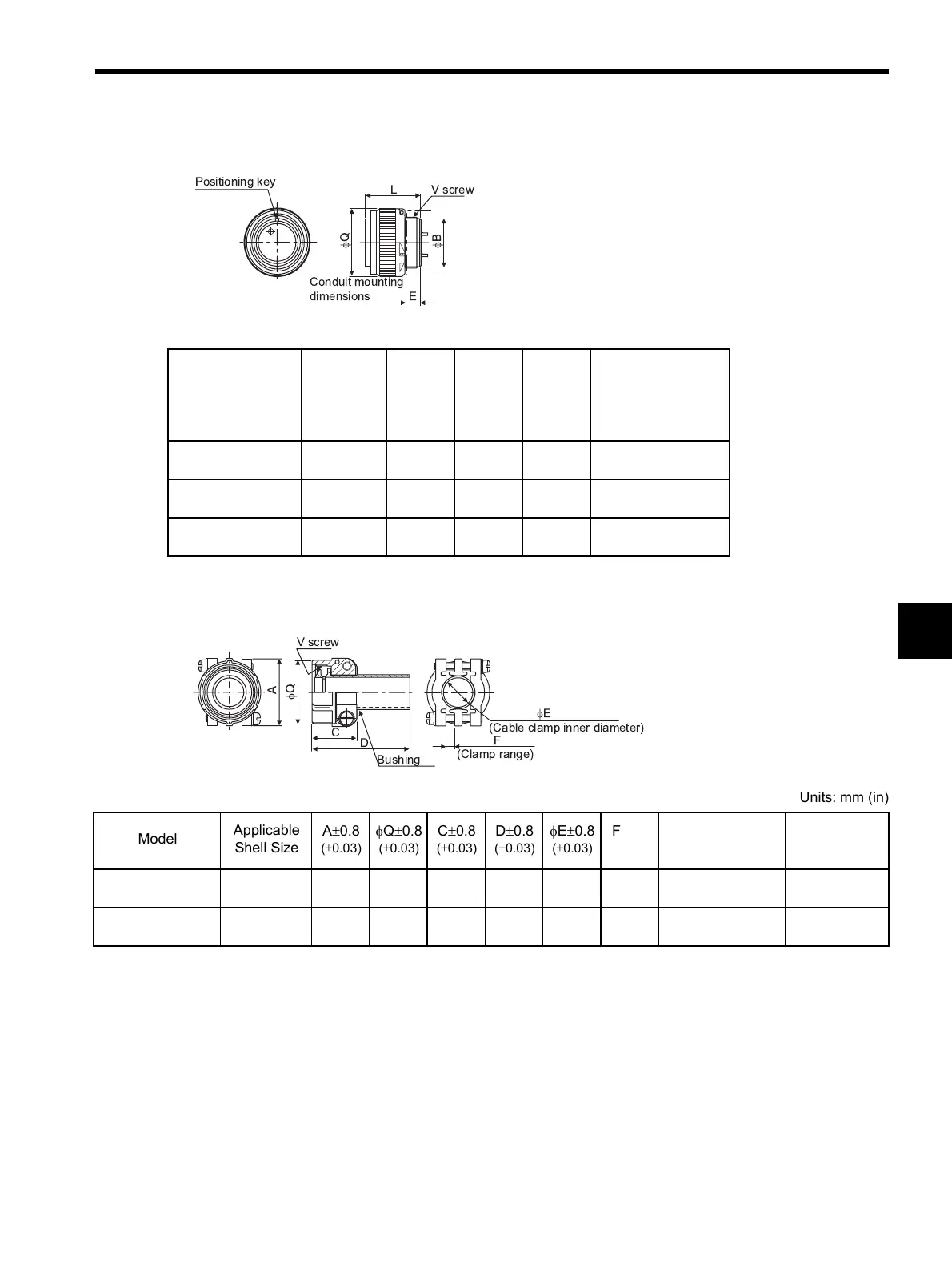

(d) Plugs
Note: For the conduit grounding, contact manufacturer of the conduit being used.
(e) Waterproof Cable Clamps With Rubber Bushings
Units: mm (in)
Model
Outer
Diameter
of Nut
φQ±0.8
(±0.03)
φB±0.2
(±0.01)
L±0.4
(±0.02)
E max.
Conduit Mounting
Screw
V
JL04V-6A20-15SE
37.3 (1.47)
27.0
(1.06)
31.5
(1.24)
8
(0.31)
1-1/8-18UNEF-2A
JL04V-6A22-22SE
40.5 (1.59)
29.7
(1.17)
31.2
(1.23)
8
(0.31)
1-1/4-18UNEF-2A
JL04V-6A32-17SE
56.3 (2.22)
45.4
(1.79)
35.8
(1.41)
10
(0.39)
1-7/8-16UN-2A
V screw
L
E
B
Q
B
B
Conduit mounting
dimensions
Positioning key
B
B
Units: mm (in)
Model
Applicable
Shell Size
A±0.8
(±0.03)
φQ±0.8
(±0.03)
C±0.8
(±0.03)
D±0.8
(±0.03)
φE±0.8
(±0.03)
F±0.8
(±0.03)
Mounting Screw
V
Applicable
Cable Range
in mm (in)
JL04-2022CK(14)
20 (0.79) and
22 (0.87)
37.3
(1.47)
34.9
(1.37)
24.3
(0.96)
53.8
(2.12)
15.9
(0.63)
4
(0.16)
1-3/16-18UNEF-2B
φ12.9 (0.51) to
φ15.9 (0.63)
JL04-2428CK(17)
24 (0.94) and
28 (1.10)
42.9
(1.69)
42.1
(1.66)
26.2
(1.03)
56.2
(2.21)
18
(0.71)
4.8
(0.19)
1-7/16-18UNEF-2B
φ15 (0.59) to
φ18 (0.71)
