5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.8.5 Brake Power Supply Unit

5-62

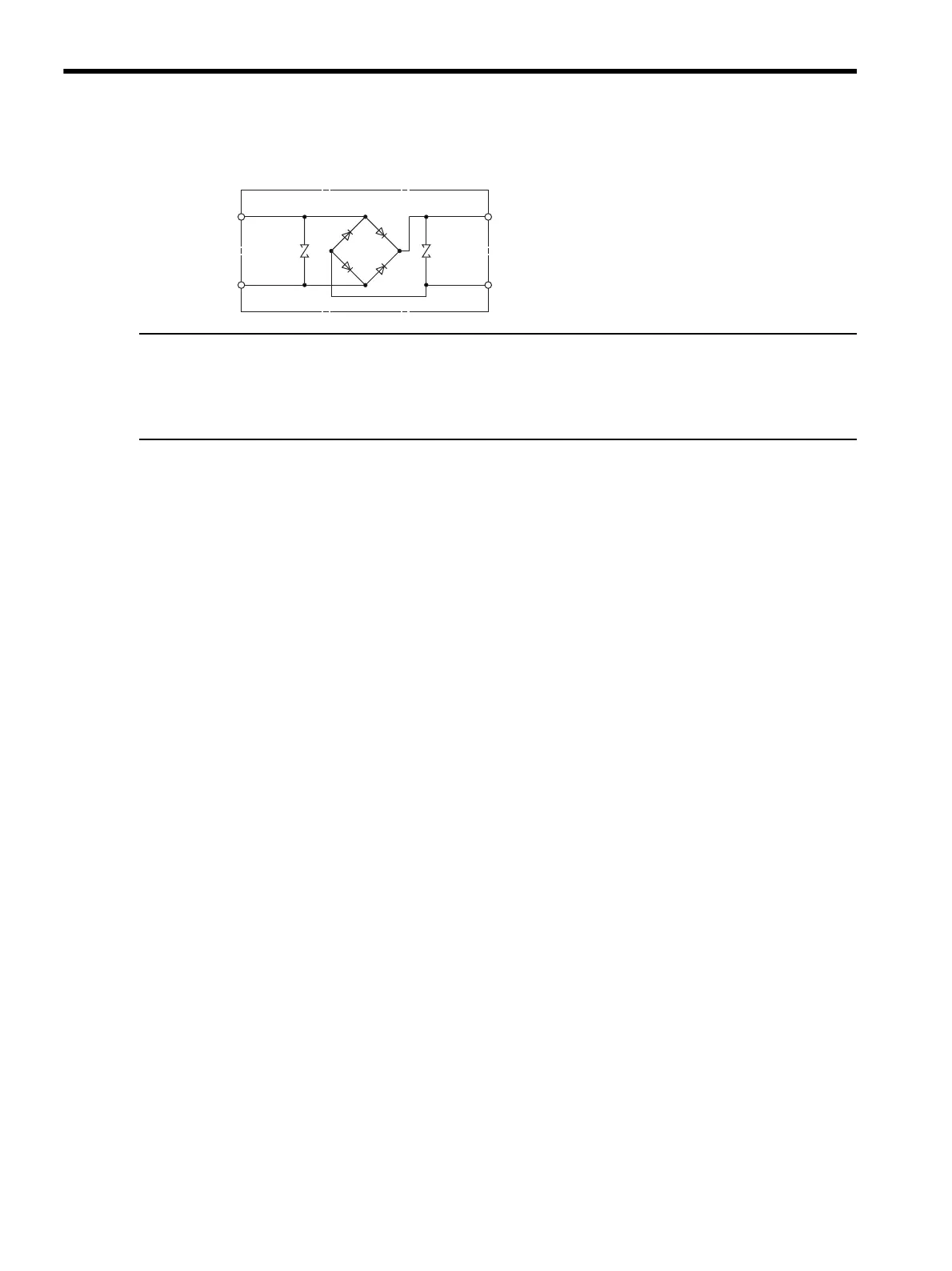

(b) Internal Circuit for 100 VAC

Brake Power Supply Model: LPDE-1H01

 Noise Filter for Brake Power Supply

Use the following noise filter at the brake power input for 400 W or less servomotors with holding brakes.

Model: FN2070-6/07 (Manufactured by Schaffner Electronic.)

Refer to 5.8.10 Noise Filter for the dimensional drawing.

Blue

White

Red

Black

AC side

90 to 120 V

Diode bridge

Surge

suppressor

Surge

suppressor

DC (Brake) side

No polarity
