6 Wiring
6.4.8 DC Reactor for Harmonic Suppression
6-30
(2) Connecting a Reactor

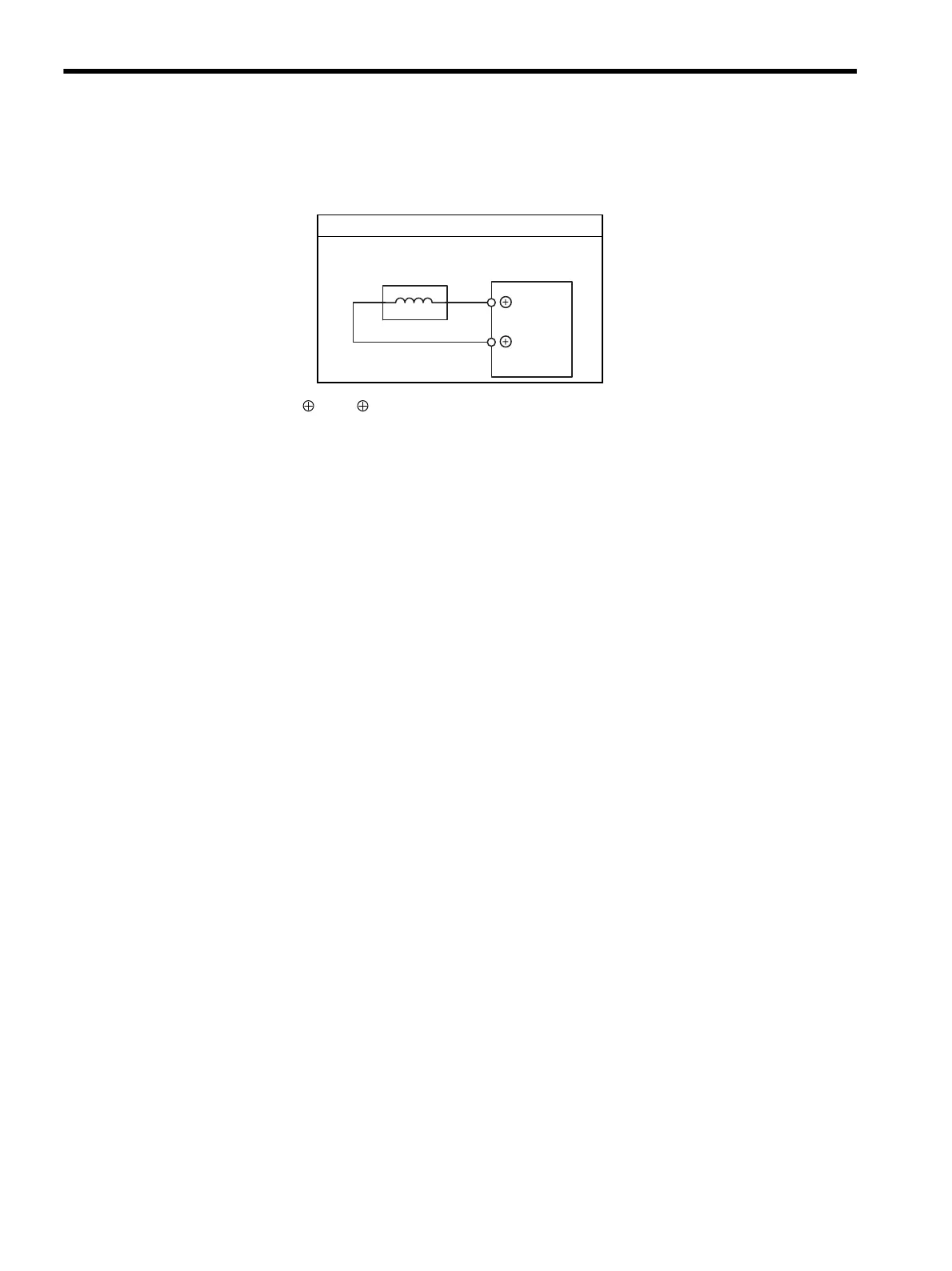

Connect a DC reactor as shown in the following diagram. The DC reactor is connected in series to the rectifier
circuit’s output side.
Note: 1. The SERVOPACK 1 and 2 terminals for the DC reactor are short-circuited before shipment.
Remove the lead wire between these two terminals and connect the DC reactor with SERVOPACK.
2. DC reactor is an option (Provided by customer).
DC Reactor
SERVOPACK
DC reactor
Three-phase input
1
2
