8.9 Limiting Torque
8-71
8

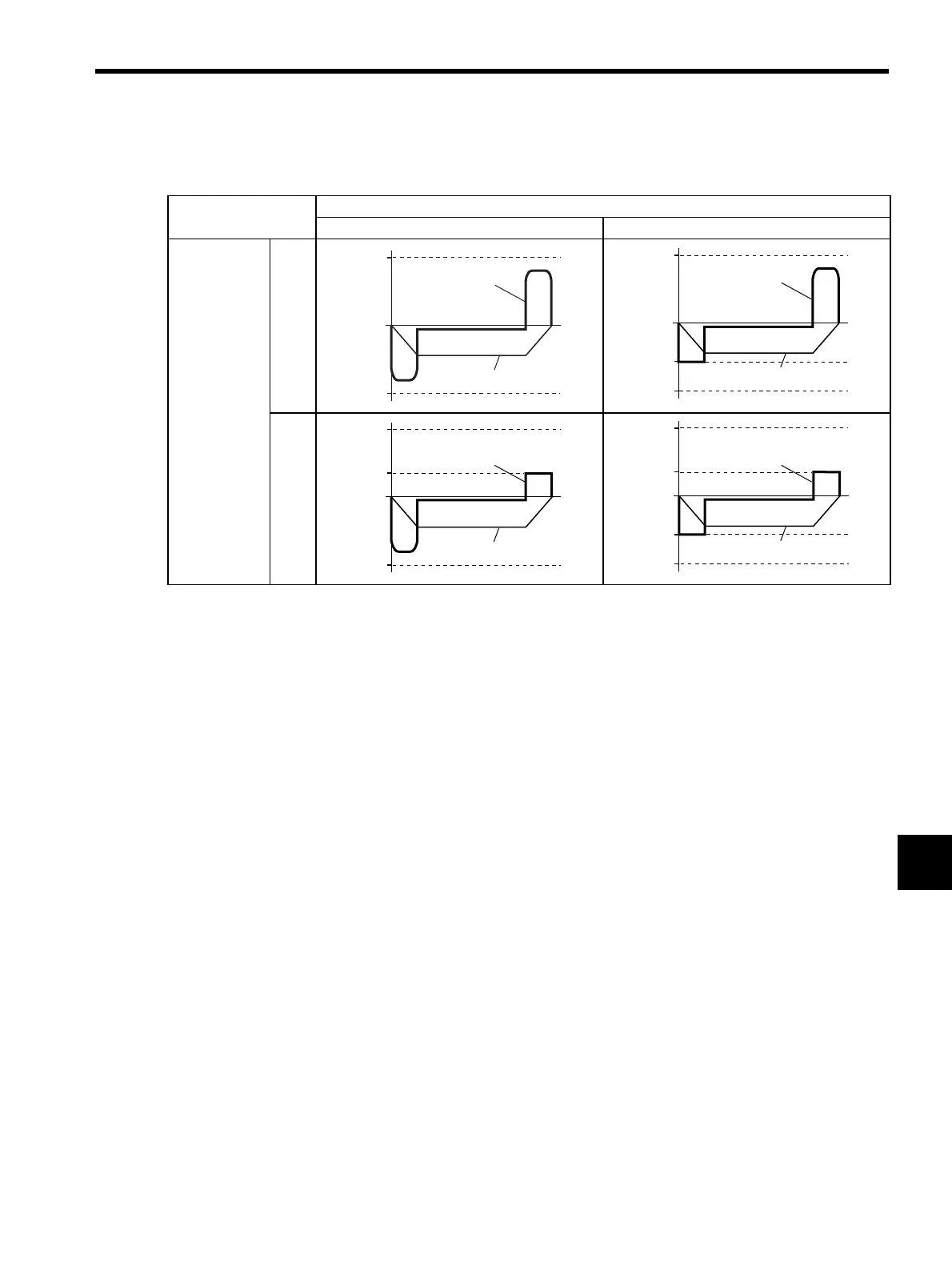

(3) Changes in Output Torque during External Torque Limiting
Example: External torque limit (Pn402, Pn403) set to 800%
Note: In this example, the servomotor rotation direction is Pn000 = n.0 (standard setting, CCW =
forward).
/P-CL (Forward External Torque Limit Input)
High level Low level
/N-CL
(Reverse
External
Torque Limit
Input)
High
level
Low
level
Pn403
Pn402
0
Torque
Speed
Pn403
0
Pn404
Pn402
Torque
Speed
0
Pn403
Pn405
Pn402
Torque
Speed
0
Pn403
Pn405
Pn404
Pn402
Torque
Speed
