User Guide for SIP-T56A Smart Media Phone
326
8. (Optional.) Enter the string that will appear on the touch screen in the Label field.
9. Tap to accept the change or to cancel.
Paging list key is configurable via web user interface at the path DSSKey->Line Key.

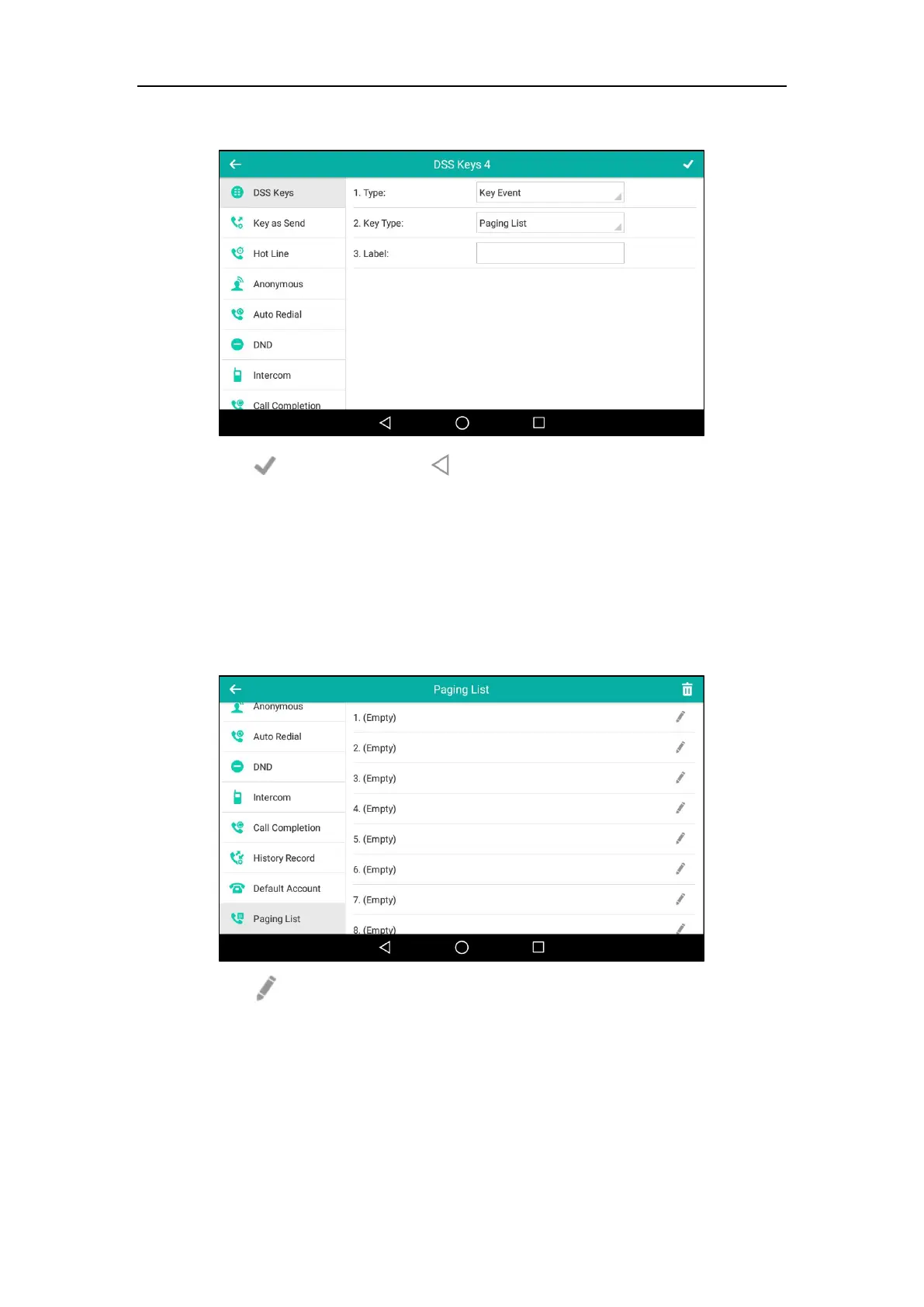

To configure paging list via phone user interface:
1. Tap the paging list key when the phone is idle.
If the paging list key is not configured, you can also swipe down from the top of the screen
or swipe left/right to go to the second idle screen. Then tap Settings->Features->Paging
List to configure the paging list.
2. Tap after the desired paging group.
3. Enter the multicast IP address and port number (e.g., 224.5.6.20:10008) in the Address
field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
4. Enter the paging group name in the Label field.
5. Enter the desired channel in the Channel field.
