10-12

IM 701510-01E

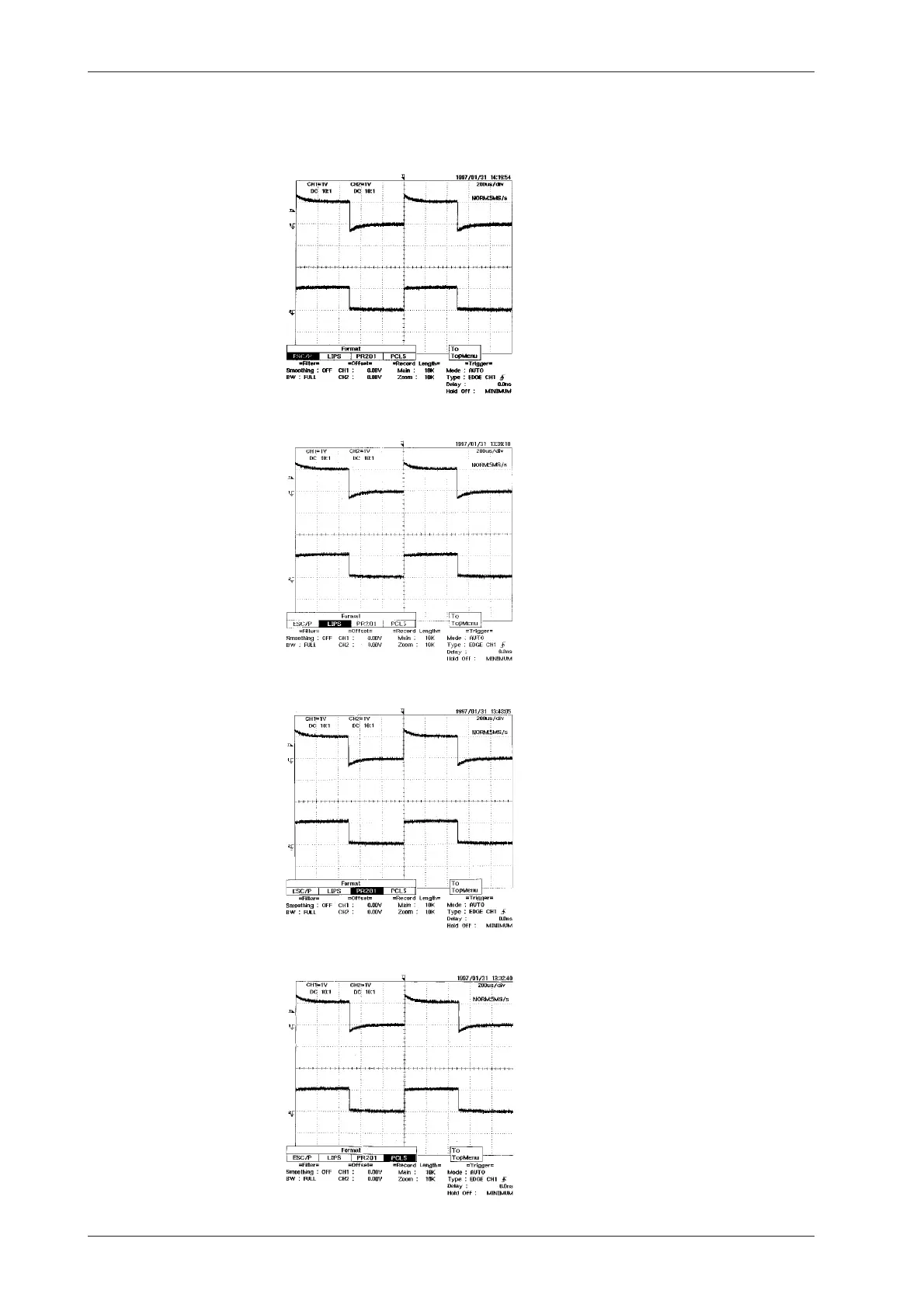

Print example

• ESC/P: Printed by EPSON MJ-700V2C

The setting information is not printed for DL1520 with software (ROM) version before

1.30.

• LIPS: Printed by Canon LASER SHOT A404F

• PR201: Printed by Canon LASER SHOT A404F PR201 emulation

• PCL5: Printed by HEWLETT PACKARD Laser Jet 5L

10.7 Printing the Screen Image to an External Printer (for DL1520/DL1520L Having Suffix Code -C3 )
