4-4
IM 701510-01E
4.3 Initializing Settings
1. Press the INITIALIZE key to display the initialization execution
menu.
2. Press the “INITIAL EXEC” soft key to execute initialization.
Explanation
Default settings related to the vertical and horizontal axes
CH1 to CH4 All channels ON (CH1/CH2 for DL1520/DL1520L)
V/DIV 50 V/div
POSITION The horizontal position is set to 0div. For the vertical position, refer to
the figures (Two channels, Four channels) given under title
“POSITION” in section 4.2.
INPUT Input coupling: DC, Probe attenuation: 10:1, Inversion: OFF
TIME/DIV 1 ms/div
TIMEBASE INT
Default settings related to trigger
MODE AUTO
FUNCTION EDGE
LEVEL/SOURCE Trigger source: CH1, Trigger slope: “
”,Trigger level: 0 V
COUPLING Trigger coupling: AC, HF rejection: OFF
POSITION Center of the waveform display frame
DELAY Delay time: 0 s
HOLD OFF Mode: OFF, Hold-off time: MIN (0.2µs)
Default settings related to other settings
ACQUISITION Mode: NORMAL
LENGTH (for DL1520L/DL1540L)
Record length: 10K
FILTER Smoothing: OFF, Band limit: FULL
DISPLAY Interpolation: SINE, X-Y display: OFF, Accumulate: OFF
DISPLAY FORM Graticule: GRID, Scale: ON, % Marker: OFF, Waveform information:
ON, Intensity: TEXT (9)
SHIFT OFF (LED is not lit)
Settings which cannot be initialized
In the following cases, the settings which were in effect before initialization will be retained
even if initialization is performed.
• Date and time • Displayed waveforms/setting parameters
• GO/NO-GO zone waveforms stored in the internal memory
• Communications addresses
Points to note when initializing
• Snapshot waveforms will be deleted when initialization is performed.
• Operations such as measurements, computations, etc. will be halted.
• Initialization cannot be performed during GO/NO-GO.

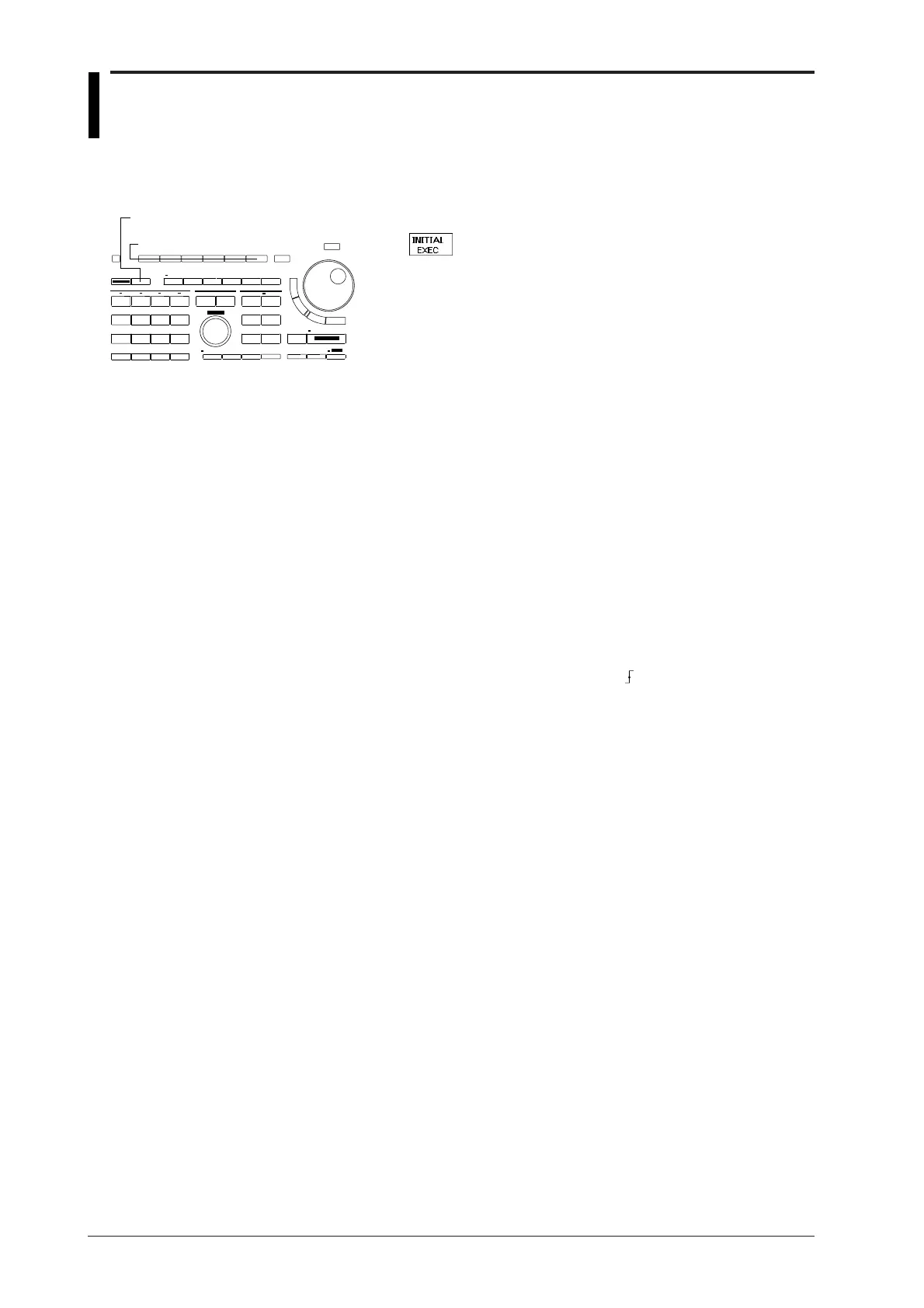

Keys and Procedure
Soft keys
INITIALIZE key
