YOKOGAWA DL 1540 User Manual

12-4
IM 701510-01E

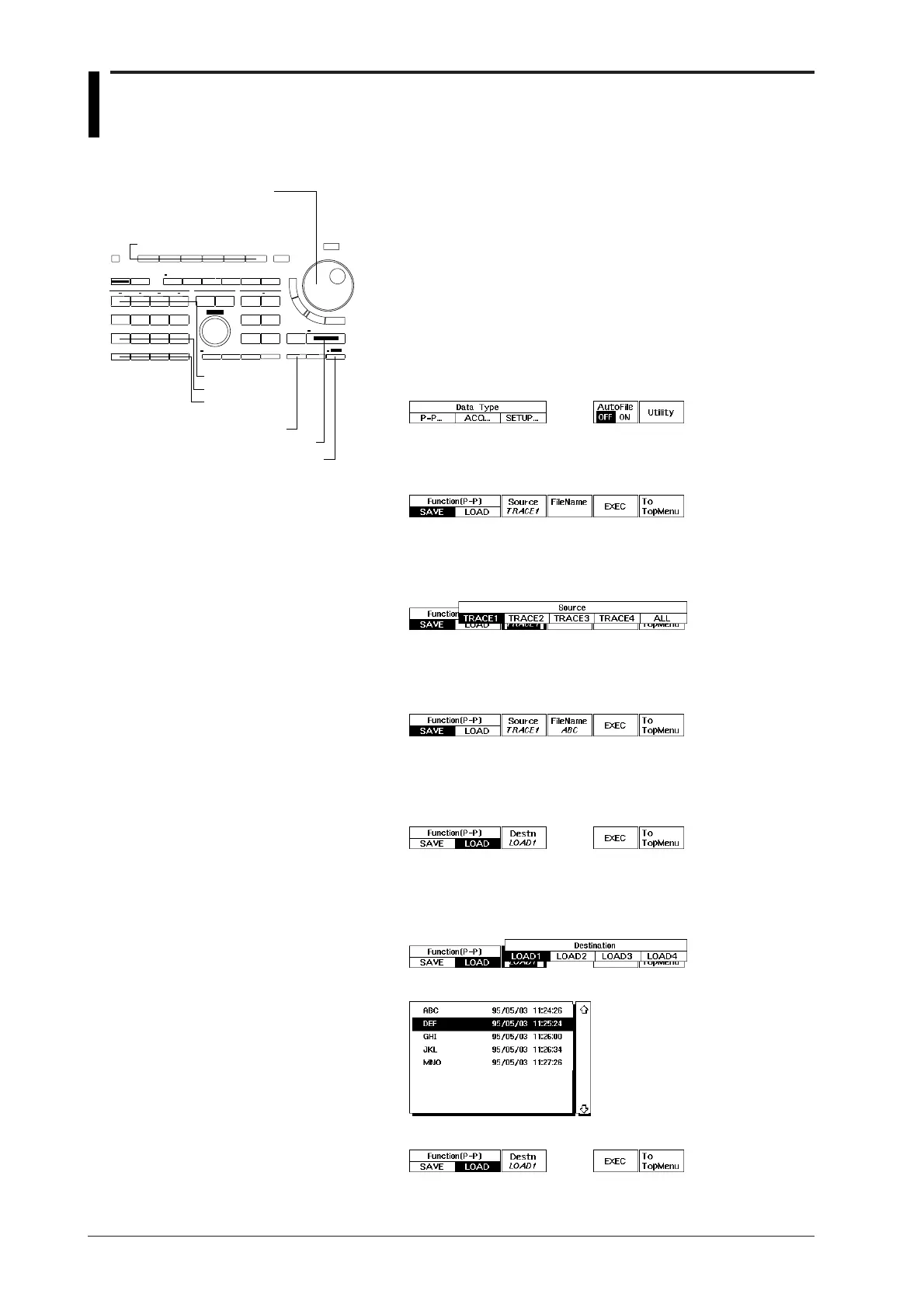

12.3 Saving and Loading Waveform Data
1. Press the SHIFT + STORE/RECALL (FILE) key to display the data
save/load menu. “Media” menu is also provided with DL1520L with
suffix code -C4. Press the “Media” soft key to display the media
selection menu, then select “Floppy”.
Turning ON/OFF the auto naming function
2. Press the “AutoFile” soft key to select “ON” or “OFF”. For more
details concerning this function, refer to the explanation later on.
Saving P-P waveform data
3. Press the “P-P” soft key to display the save/load setting menu and a
list of files.
4. Press the “SAVE” soft key to display the saving menu.
5. Press the “Source” soft key to display the source waveform setting
menu.
6. Press the soft key corresponding to the waveform to be saved.
For DL1520/DL1520L, menus such as “TRACE1”, “TRACE2”,
“MATH” and “ALL” are displayed instead of the source wave setting
menu shown below.
7. Press the “FileName” soft key to display the keyboard.
8. Use the keyboard to enter the filename. For details regarding the usage
of the keyboard, refer to page 4-8.
9. Press the “EXEC” soft key to start saving.
Loading P-P waveform data
10. Press the “LOAD” soft key to display the loading menu.
11. Press the “Destn” soft key to display the destination setting menu.
12. Press the soft key corresponding to the destination of the waveform to
be loaded.
“LOAD3” and “LOAD4” menus are not provided with DL1520/
DL1520L.
13. Use the rotary knob to select the file to be loaded.
14. Press the “EXEC” soft key to start loading.
Keys and Procedure
Rotary knob
Soft keys
STORE/RECALL(FILE) key
SHIFT key
START/STOP key
CH key
POSITION key
INPUT key
