7-15
IM 701510-01E
Changing Acquisition and Display Conditions
7

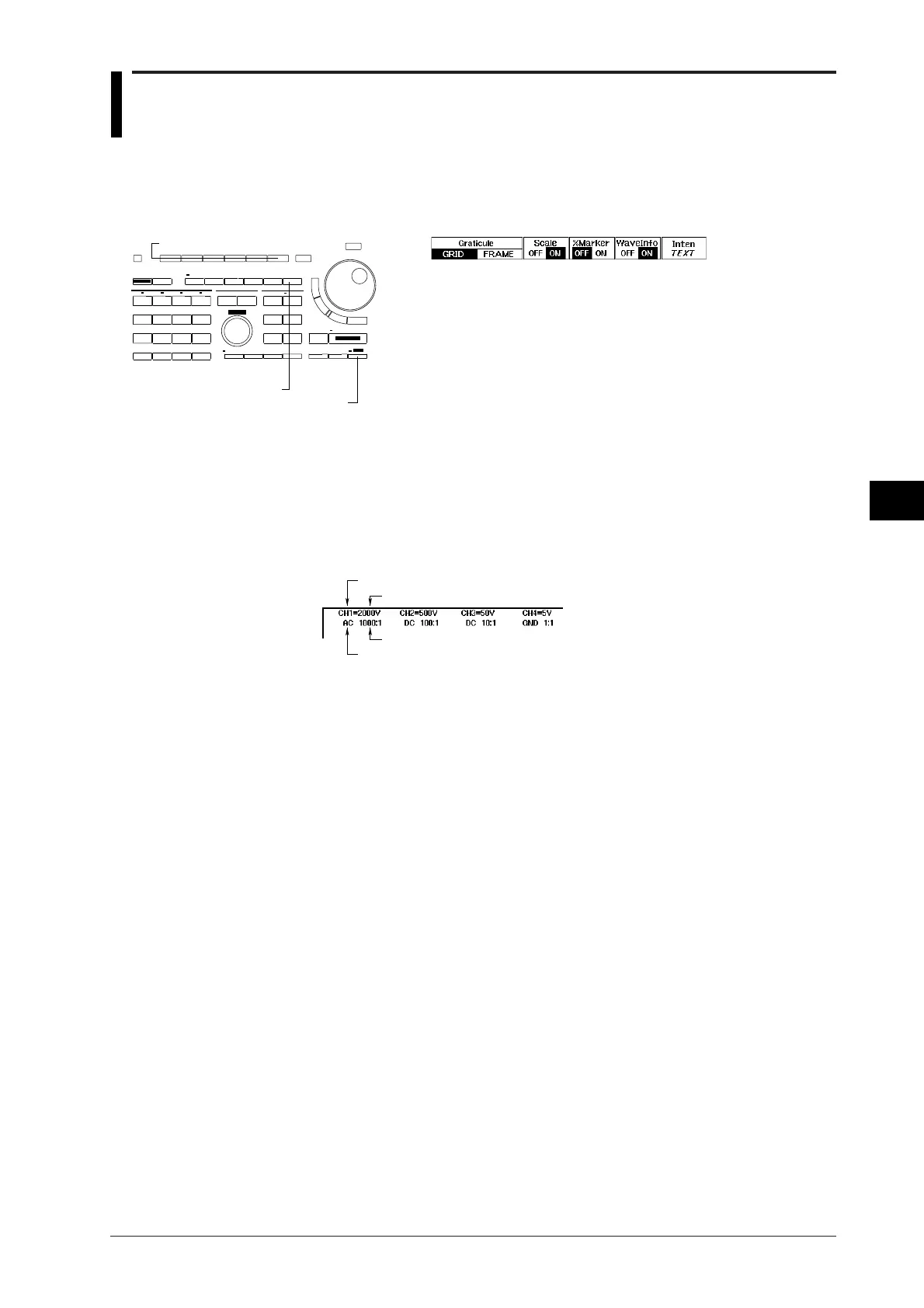

7.10 Turning the Waveform Information Display ON/
OFF
1. Press the SHIFT + DISPLAY (DISPLAY FORM) key to display the
display condition setting menu.
2. Press the “Wave Info” soft key and select either “ON” or “OFF”.
Explanation
Selecting the waveform information display ON/OFF
The information display can be selected “ON” or “OFF”. The default is “ON”.
OFF Displays only the time axis setting, acquisition mode, and sample rate. This is useful
if the displayed waveform information prevents observation of other waveforms.
ON Displays the channel No./ voltage axis sensitivity settings/ input coupling/ probe
attenuation as shown below in addition to the “OFF” display. For DL1520/DL1520L,
CH3 and CH4 are not displayed.
Voltage axis sensitivity
Channel No.
Probe attenuation
Input coupling
Points to note concerning the waveform information display
• If a recalled waveform is displayed, the memory number and the voltage axis sensitivity
will be displayed.
• If P-P waveform data loaded from a floppy disk is displayed, the file name and the
voltage axis sensitivity will be displayed. Up to 8 characters of the file name will be
displayed, but overlap may occur with other displayed file names (depending on the size
of the used characters).
• If ACQ waveform data loaded from a floppy disk is displayed, the channel No., voltage
axis sensitivity, input coupling and probe attenuation will all be displayed at the site of
the waveform. The channel No. of the channel for which acquisition has been halted (i.e.
for which “ACQ Hold” is set to “ON”) will be highlighted.
Keys and Procedure
DISPLAY(DISPLAY
FORM) key
Soft keys
SHIFT key
To Next Page
