Name and Use of Each Part
2
2.3 Display

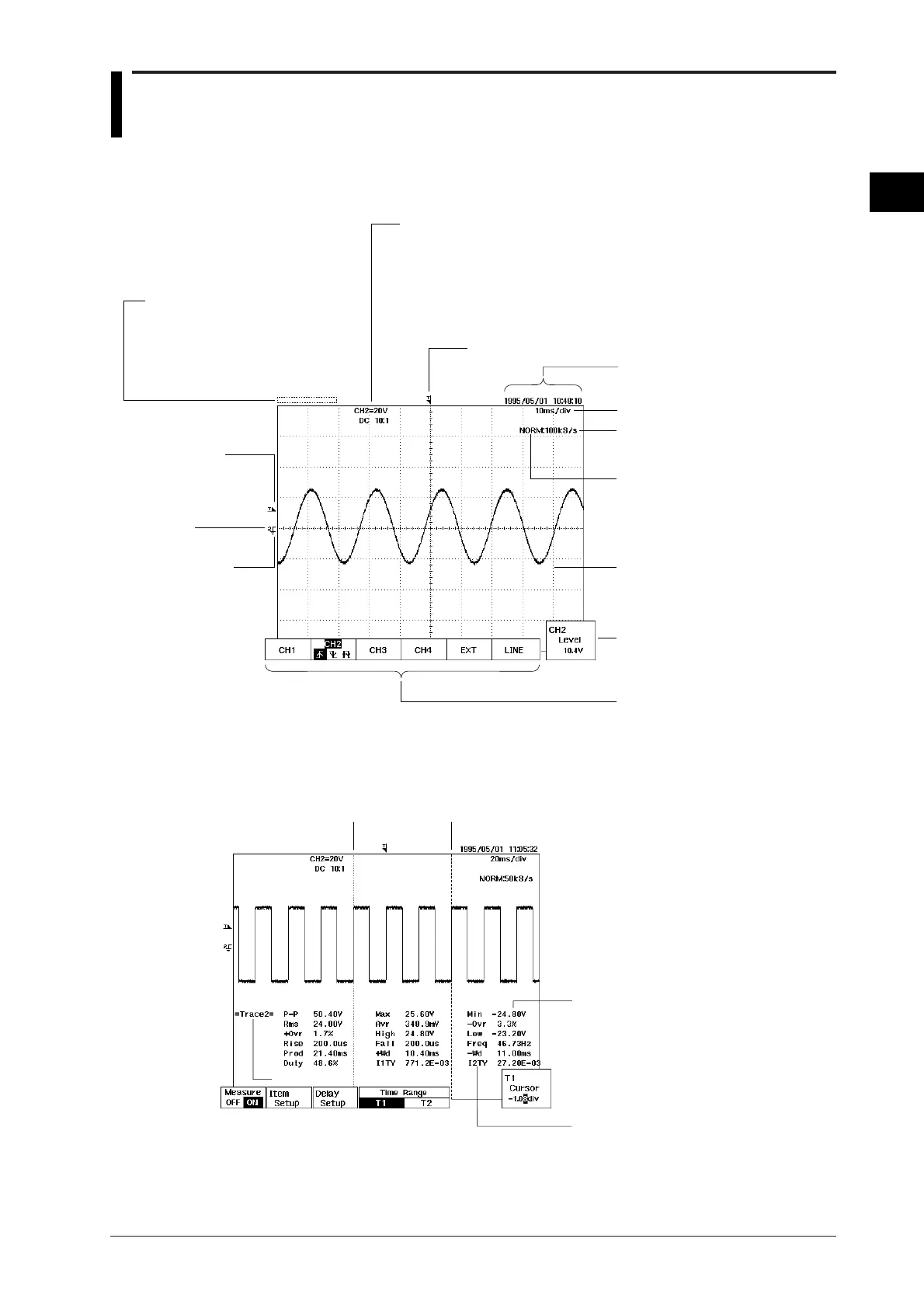

An example of screen displayed on DL1540/DL1540L is shown below. For DL1520/
DL1520L, waveforms and data relating to CH3 and CH4 are not displayed.
Normal Waveform Display
Soft key menu
Press the corresponding key below
when you want to change any setting
(For DL1520/DL1520L,
CH2 and CH3 are not displayed.)
Rotary knob menu
Shows values and settings which can
be adjusted by rotary knob
Graticule → Page 7-14
Time axis setting →Page 5-10
Sample rate → App.2/App.3
In case of the repetitive sampling mode,
[REP] is added
Acquisition mode → Page 7-1
NORM
. . .
Normal mode
ENV
. . .
Envelope mode
AVG
. . .
Averaging mode
Trigger position
Date and time →Page 3-7
Information concerning waveforms →Page 7-15
CH2
. . .
Signal waveform of channel 2
20V
. . .
Voltage axis sensitivity is 20V/div
DC
. . .
Input coupling
10:1
. . .
Probe attenuation
Information concerning waveform acquisiton
No display
. . . . . .
acquisition in progress
Stopped
Waiting for trigger
Trigger level mark
Trace No.
Ground level mark
Automated Measurements
→→
→→
→ Refer to page 8-7.
Measurement
values
Measurement items or delay
between channels
T2 cursorT1 cursor
Trace No.
