7-13
IM 701510-01E
Changing Acquisition and Display Conditions
7
7.8 Displaying an X-Y Waveform
1. Press the DISPLAY key to display the setting menu.
2. Press the “X-Y” soft key to display the X-Y selection menu.
When displaying both the X-Y waveform and the T-Y waveform
3. Press the “T-Y & X-Y” soft key.
When displaying the X-Y waveform only
3. After step 2 has been completed, press the “X-Y” soft key.
When displaying the T-Y waveform only
3. After step 2 has been completed, press the “OFF” soft key.
Explanation
Assigning channels to the X axis (horizontal axis) and Y axis (vertical axis)
The assignment has been pre-determined as follows. The CH1 input voltage is assigned to
the X axis and the CH2 input voltage to the Y axis.
An X-Y waveform can also be displayed for acquisition data loaded from a floppy disk. In
this case, the trace No. will simply be replaced by the channel No.
Selecting the display type
The display type can be selected from the following three types.
OFF Displays only the V-T waveform.
X-Y Displays only the X-Y waveform. In case the zoom setting has been set to
ZOOM, the display will show the expanded waveform as specified in the
zoom box.
T-Y & X-Y Displays both the V-T waveform and the X-Y waveform. The display depends
on the zoom settings. Refer to X.X for more details.
Points to note when displaying an X-Y waveform
• When displaying X-Y waveforms, only measurement of “Integ1XY” and “Integ2XY” is
possible during automated measurement. For a description of measurement operations
and the measured parameters, refer to 8.3.
• If both the V-T and X-Y waveforms are displayed, the V-T waveform will not be
accumulated. If the display mode is switched, accumulated waveform display will be
reset.
• When you want to display a sequentially stored waveform or one stored in history
memory as an X-Y waveform, you turn the rotary knob to select a [display number].
However, all the selected waveforms will appear on the screen. In order to display one
selected waveform only, press the CLEAR TRACE key after selection.

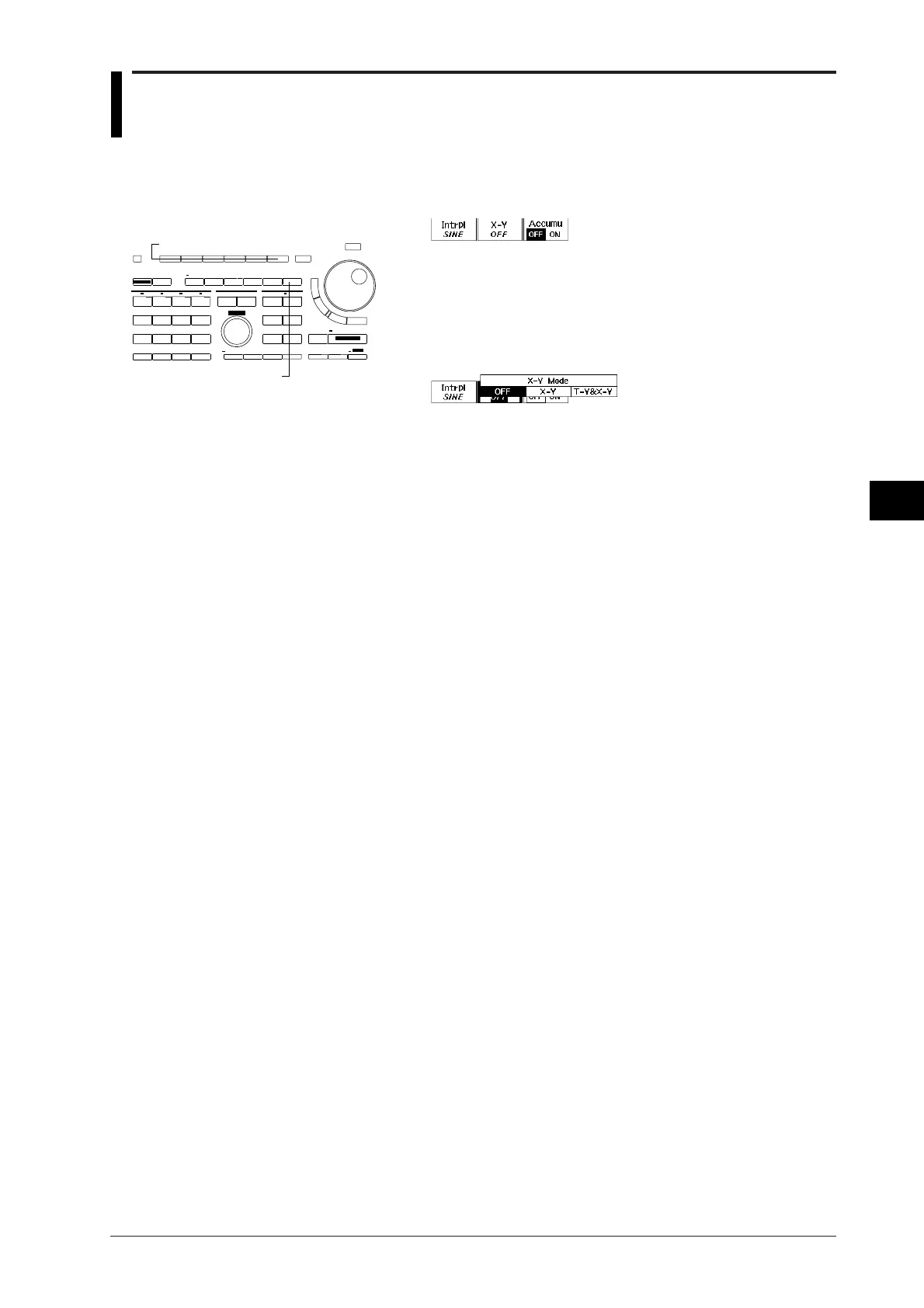

Keys and Procedure
DISPLAY key
Soft keys
To Next Page
