7-12
IM 701510-01E
7.7 Displaying an Accumulated Waveform
1. Press the DISPLAY key to display the setting menu.
2. Turn the rotary knob to set the desired accumulation time. Turning the
rotary knob automatically sets the “Accumu” setting to “ON”.
3. To cancel the accumulation function, select “OFF”.
Explanation
Setting the accumulation time
The accumulation time can be selected from the following. The default settings is “100ms”.
100ms, 200ms, 300ms, 400ms, 500ms, 600ms, 700ms, 800ms, 900ms, 1s, 2s,
3s, 4s, 5s, 6s, 7s, 8s, 9s, 10s, 20s, 30s, 40s, 50s, 60s, INFINITE
Intensity of the accumulated waveform
The most recent waveform is bright and old waveforms (accumulated waveforms) are dark.
Clearing the accumulated waveform
Pressing the CLEAR TRACE key clears all accumulated waveforms except the most recent
one.
Points to note
• The following operations apply only to the latest waveform’s data if they are performed
using accumulated waveform display.
-Cursor measurements and automated measurements
-Saving the waveform data
• If you want to stop accumulation, press the START/STOP key to stop measurement.
Pressing the START/STOP key again to restart measurement will clear the previously
displayed waveforms and the accumulation time will be reset.
•Waveforms which can be accumulated are Pre-zoom waveforms, expanded waveforms
and X-Y waveforms. However, if both V-T waveform and X-Y waveform are displayed at
the same time, the V-T waveform cannot be accumulated.
• When the display type (ZOOM Mode setting) is changed during expansion display of an
X-Y waveform, the currently accumulated waveforms will be cleared and accumulation
will start again.

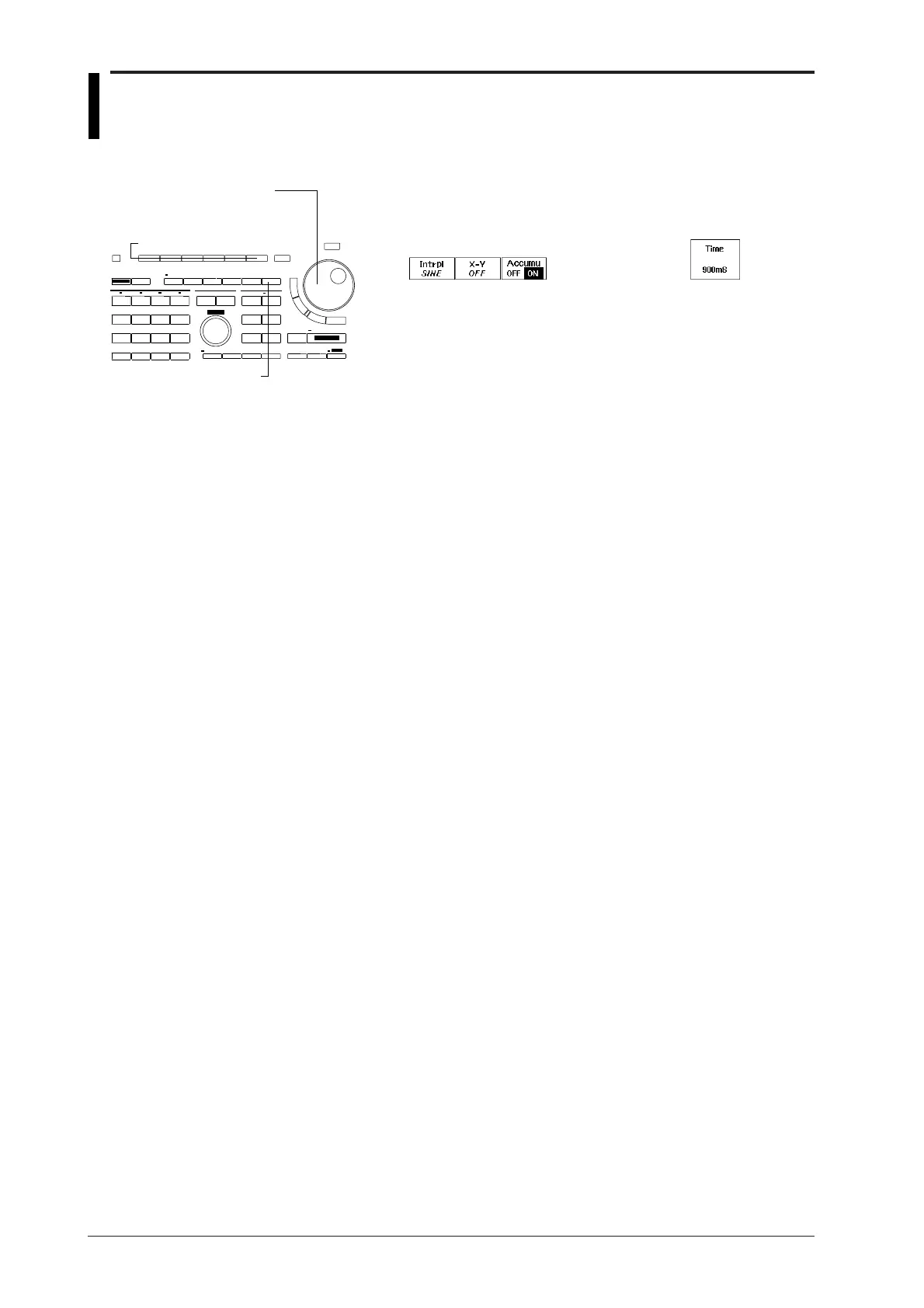

Keys and Procedure
DISPLAY key
Rotary knob
Soft keys
To Next Page
