7.11 Changing the Screen Intensity
1. Press the SHIFT + DISPLAY (DISPLAY FORM) key to display the
display condition setting menu.
2. Press the “Inten” soft key to display intensity selection menu.
3. Press the soft key corresponding to the item for which the intensity is
to be changed.
4. Turn the rotary knob to set the desired intensity.
5. Repeat step 3 and 4 to adjust the intensity of other items.
Explanation
Intensity
Intensity can be set to one of 15 levels, with the darkest intensity “1” and the brightest
intensity “15”.
Items for which the intensity can be adjusted
Intensity can be adjusted independently for the following items. The value in ( ) indicates
the default setting.
TEXT (9) : Characters, value
SCALE (6) : Graticule, scale, % marker
CURSOR (10) : Cursor
SNAPSHOT (5) : Snapshot waveform
WAVE (8) : All waveform except snapshot
ALL (8) : The entire screen

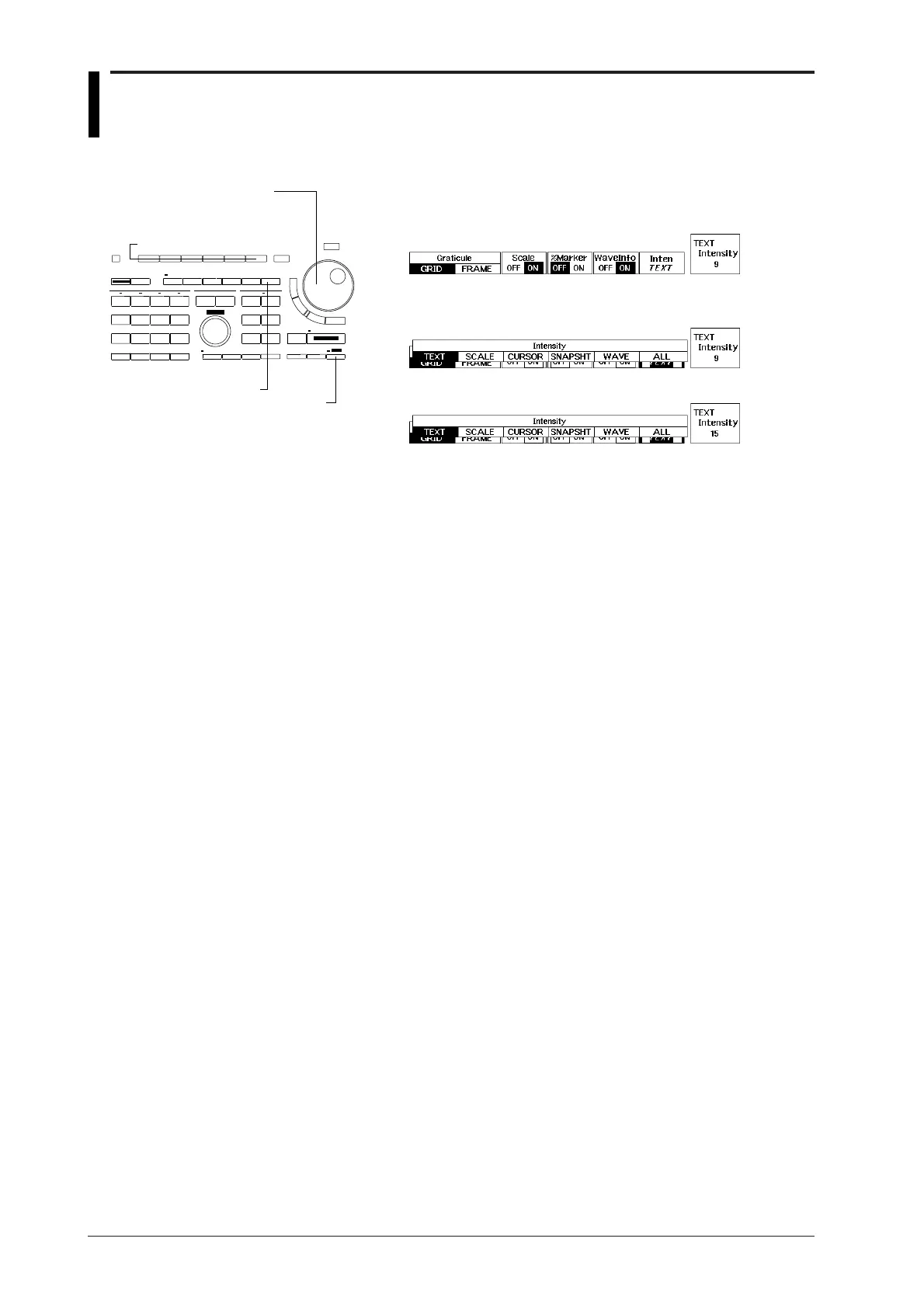

Keys and Procedure
DISPLAY(DISPLAY
FORM) key
Soft keys
SHIFT key
Rotary knob
