6-8
IM 701510-01E

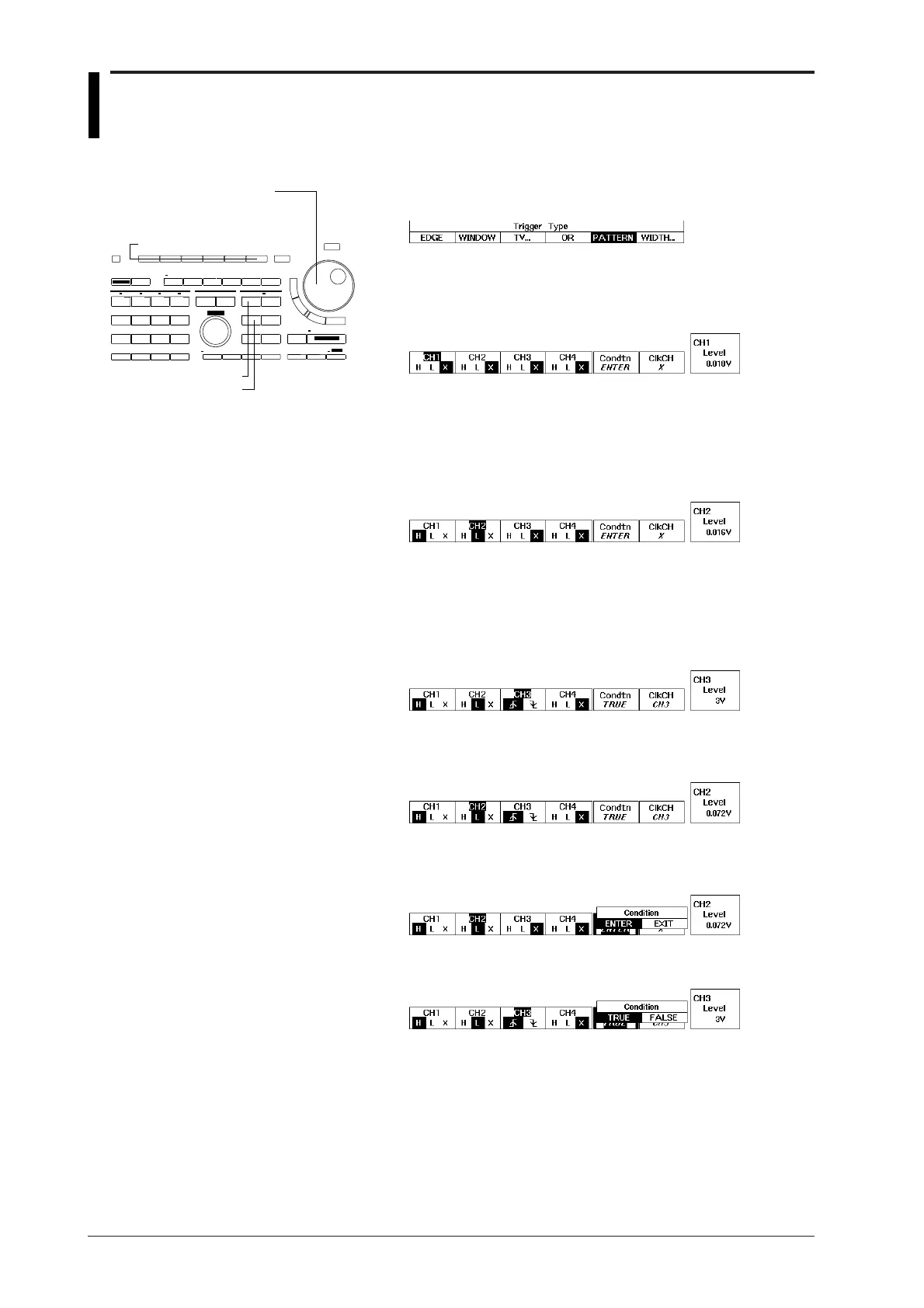

6.6 Setting the Pattern Trigger (Optional for
DL1540/DL1540L)
1. Press the TYPE key to display the trigger type selection menu and
press the “PATTERN” soft key.
2. Press the LEVEL/SOURCE key to display the trigger source/state
selection menu.
3. Press the “ClkCH” soft key to display the clock channel selection
menu. The default value is “X”.
Activating a trigger by state pattern only
4. Press the “X” soft key.
5. Press the trigger source soft key and select the state. Do this for all
trigger sources. In case “H” or “L” has been selected, use the rotary
knob to set the trigger level as well. Skip to step 7.
Activating a trigger in synchronization with the clock signal
4. Continuing from step 3, select the desired clock channel and press the
corresponding soft key.
5. Select the trigger slope of the clock channel using the soft keys, and
then use the rotary knob to set the trigger level.
6. Press the trigger source soft key for the channels which are not clock
channel, and select the trigger state. In case “H” or “L” has been
selected, use the rotary knob to set the trigger level as well.
7. Press the “Condtn” soft key and select the desired conditions using
the corresponding soft keys.
• menu in case of activating a trigger by state pattern only
• menu in case of activating a trigger in synchronization with the
clock signal
Keys and Procedure
TYPE key
Rotary knob
Soft keys
LEVEL/SOURCE key
To Next Page
