14.2 Downloading Waveform Data to an AG Arbitrary
Waveform Generator

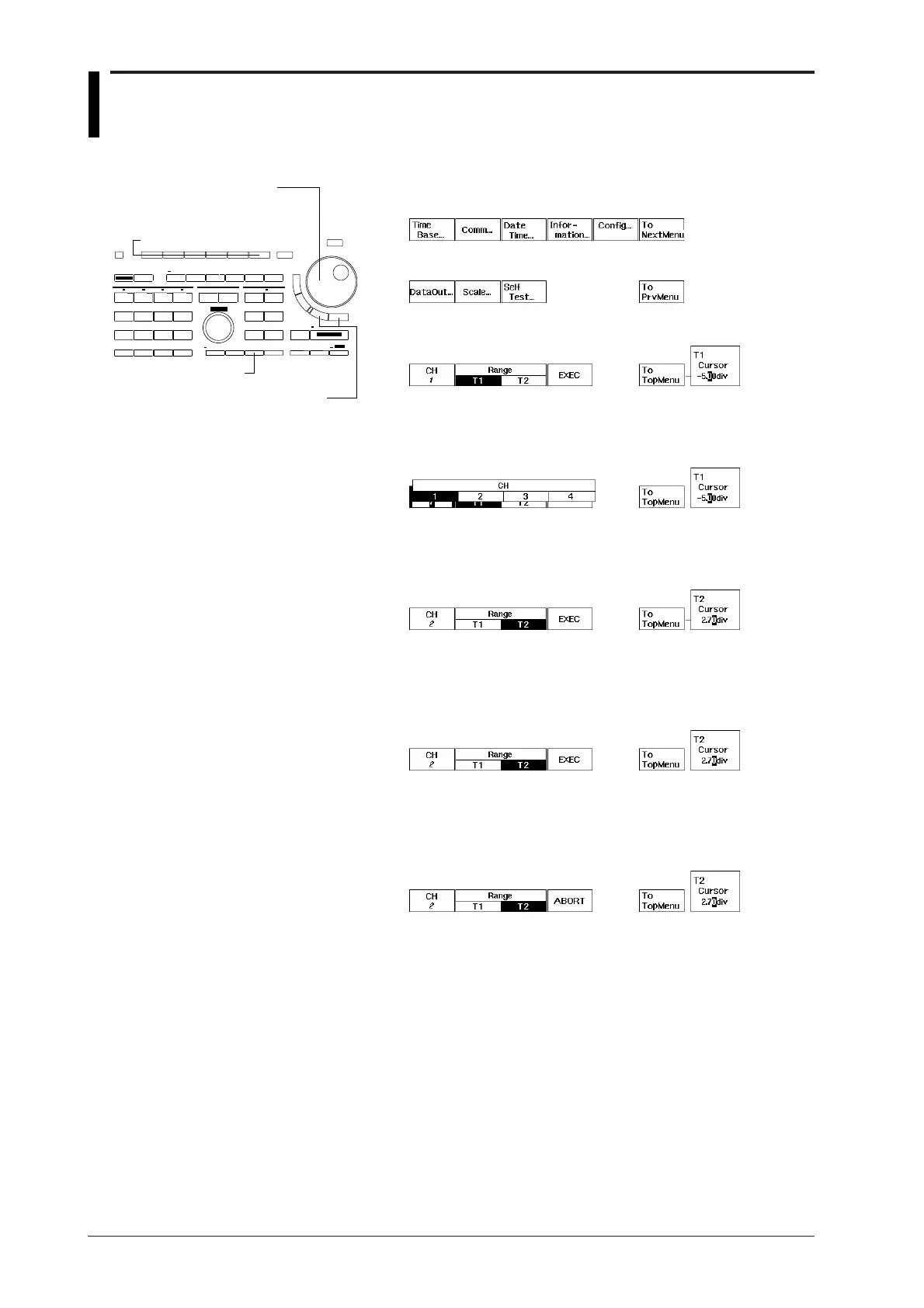

1. Press the MISC key to display the MISC menu.
2. Press the “To NextMenu” soft key.
3. Press the “DataOut...” soft key to display the download menu.
4. Press the “CH” soft key to display the channel selection menu.
5. Press the soft key corresponding to the desired channel to be
downloaded.
“3” and “4” menus are not provided with DL1520/DL1520L.
6. Set the downloading range by selecting either “T1” or “T2” soft key,
and setting the vertical cursor position using the rotary knob. You can
also use the < or > keys.
Executing the download funtion
7. Press the “EXEC” soft key. The name of the soft key will change to
“ABORT”.
Aborting the download function
8. Press the “ABORT” soft key. The name of the soft key will change to
“EXEC”.
Explanation
Download setting: Dataout...
Downloading data from this instrument should only be done after having set downloading
settings at the YOKOGAWA AG series arbitrary waveform generator. For details regarding
the settings and/or operation of the YOKOGAWA AG series, refer to its corresponding
instruction manual.
When executing downloading, the setting of this instrument will change to “talking mode”
in the case of GP-IB. When downloading is finished, or when the “ABORT” soft key is
pressed, the previous setting will return.
The range of determination is set by the two cursors T1 and T2. The setting lies within
–5.00 div at the left side to +5.00 div at the right side measured from the center of the
display.
Keys and Procedure
MISC key
Rotary knob
Soft keys
<, > keys
