11-1
IM 701510-01E
Storing and Recalling Data from
the Internal Memory
11

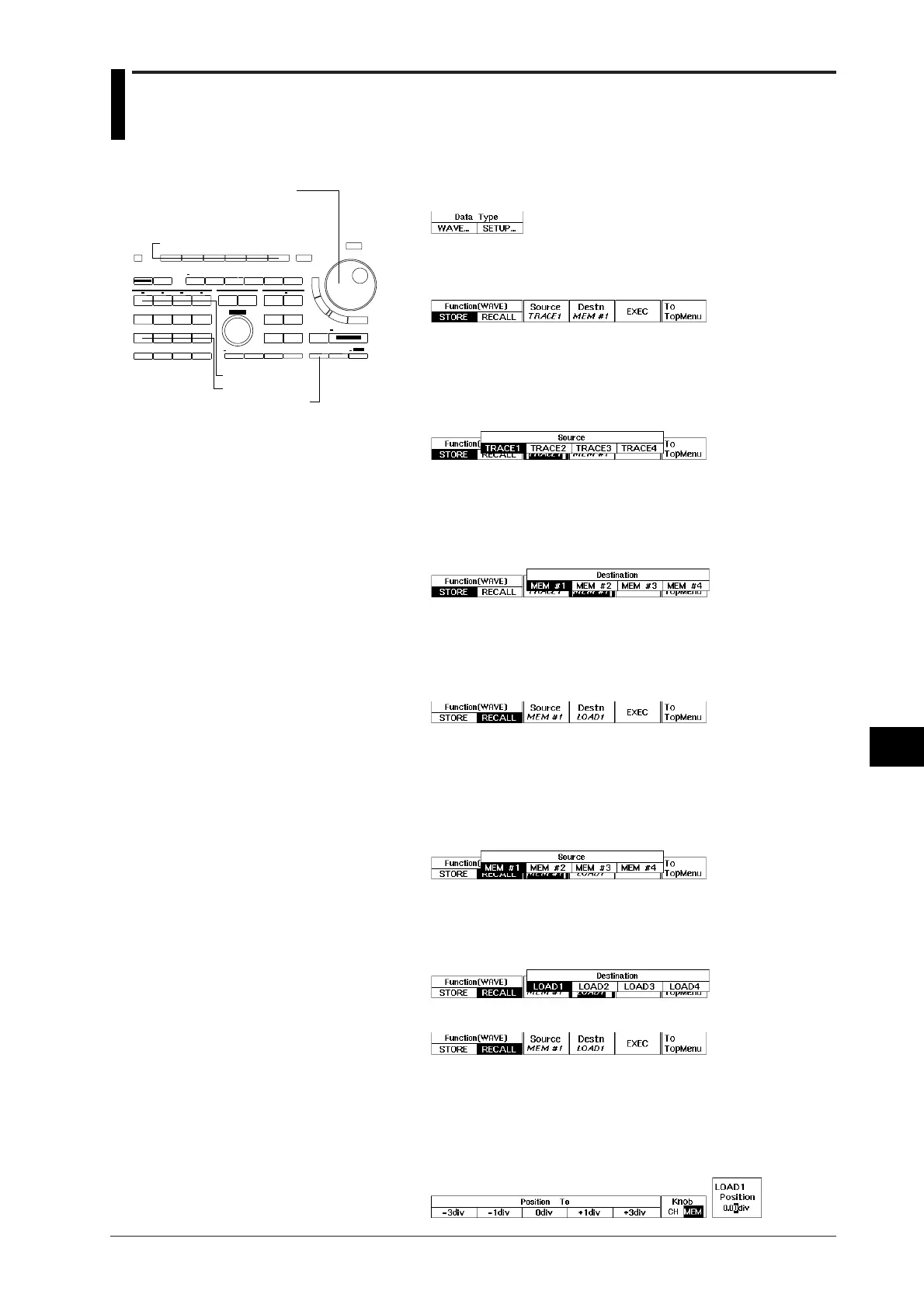

11.1 Storing and Recalling Displayed Waveforms
1. Press the STORE/RECALL key to display the data type selection
menu.
2. Press the “Wave” soft key to display the store/recall setting menu.
Storing a waveform
3. Press the “STORE” soft key to display the waveform store setting
menu. The default setting is “STORE”.
4. Press the “Source” soft key to display the source selection menu.
5. Press the soft key corresponding to the trace No. to be stored.
For DL1520/DL1520L, menus such as “TRACE1”, “TRACE2” and
“MATH” are displayed instead of the source selection menu shown
below.
6. Press the “Destn” soft key to display the memory selection menu.
7. Press the soft key corresponding to the memory in which the
waveform is to be stored.
“MEM#3” and “MEM#4” menus are not provided with DL1520/
DL1520L.
8. Press the “EXEC” soft key to execute waveform storing.
Recalling a waveform
3. After step 2 has been completed, press the “RECALL” soft key to
display the waveform recalling menu.
4. Press the “Source” soft key to display the recall memory selection
menu.
5. Press the soft key corresponding to the memory No. from which the
waveform is to be recalled.
“MEM#3” and “MEM#4” menus are not provided with DL1520/
DL1520L.
6. Press the “Destn” soft key to display the trace No. selection menu.
7. Press the soft key corresponding to the trace No. to be recalled.
“LOAD3” and “LOAD4” menus are not provided with DL1520/
DL1520L.
8. Press the “EXEC” soft key to execute waveform recalling.
Moving a recalled waveform
9. Press the POSITION key of the channel corresponding to the number
of the recalled waveform. The vertical position setting menu appears.
10. Press the “Knob” soft key to select “MEM”.
11. Press the soft key corresponding to the desired position.
12. Use the rotary knob to fine adjust the position.
Keys and Procedure
Rotary knob
Soft keys
STORE/RECALL key
POSITION key
CH key
To Next Page
