2-4
IM 701510-01E

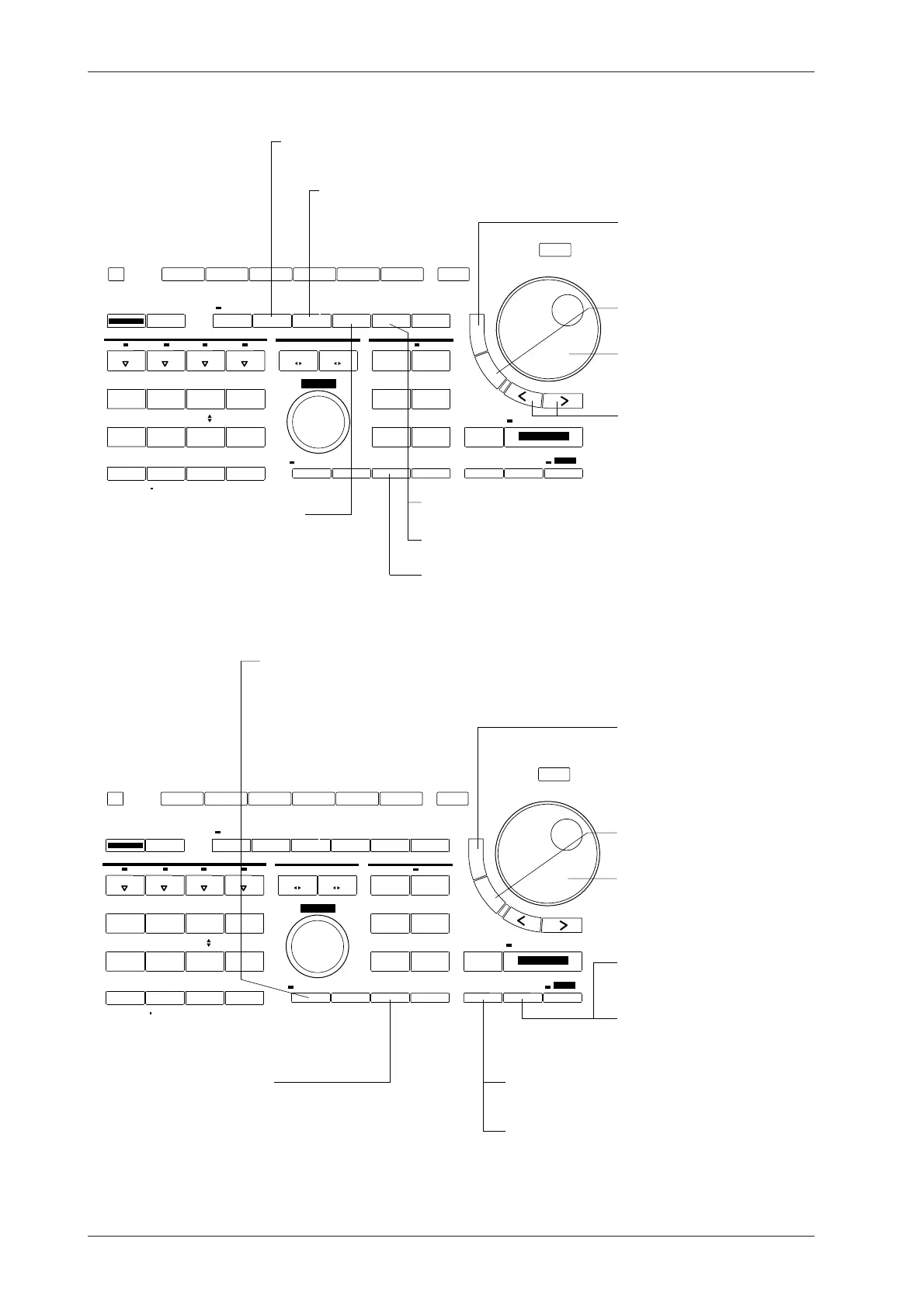

Keys and Rotary Knob used for Analysis of Waveforms
VERTICAL
HORIZONTAL
V/DIV
POSITION
INPUT
TRIG'D
REMOTE
STORE/RECALL
CAL
DISPLAY
GO/NO-GO
SOURCE
COUPLING
LEVEL/
CH
1
CH
2
CH
3
CH
4
COPY
LOCAL
CURSOR
FILTER
MISC
MEASURE
MATH
HOLD OFF
POSITION/
INITIALIZE
ZOOM
MODE
POSITION
TYPE
SNAP SHOT
HISTORY
CLEAR
TRACE
DELAY
FILE
7
8
9
4
56
1
32
0
+/-
FFT
KEYBOARD MENU
START/STOP
ESC
SHIFT
TIME/DIV
DISPLAY FORM
ON/OFF
RESET
SELECT
ACTION
ACQ
AUTO-SETUP
TRIGGER
RESET key
Resets the settings made using the
rotary knob to their default values.
SELECT key
Confirms the items and characters
selected.
Rotary knob
Used to select cursor position, waveform
parameters, linear scaling, phase shift,
FFT computation, etc.
<> key
Used to shift from one digit to the next of
the value you are setting using the rotary
knob.
MEASURE key (Page 8-6)
Displays the setting menu for automated
measurement of waveform parameters.
CURSOR key (Pages 8-1, 8-5 and 8-19)
Displays the setting menu for cursor measurement.
MATH key (Page 8-16)
Displays the waveform computation menu.
SHIFT + MATH(FFT) key (Page 8-18)
Displays the FFT computation menu.
GO/NO-GO key (Pages 9-1 and 9-8)
Displays the GO/NO-GO setting menu.
MISC key (Page 8-14)
Used to set the linear scaling function.
Keys and Rotary Knob used for Other Operations
VERTICAL
HORIZONTAL
V/DIV
POSITION
INPUT
TRIG'D
REMOTE
STORE/RECALL
CAL
DISPLAY
GO/NO-GO
SOURCE
COUPLING
LEVEL/
CH
1
CH
2
CH
3
CH
4
COPY
LOCAL
CURSOR
FILTER
MISC
MEASURE
MATH
HOLD OFF
POSITION/
INITIALIZE
ZOOM
MODE
POSITION
TYPE
SNAP SHOT
HISTORY
CLEAR
TRACE
DELAY
FILE
7
8
9
4
56
1
32
0
+/-
FFT
KEYBOARD MENU
START/STOP
ESC
SHIFT
TIME/DIV
DISPLAY FORM
ON/OFF
RESET
SELECT
ACTION
ACQ
AUTO-SETUP
TRIGGER
RESET key
Resets the settings made using the
rotary knob to their default values.
SELECT key
Used to input the file name, for selection
and confirmation.
Rotary knob
Used to select the desired setting items
or values.
COPY key (Chapter 10, Page 12-11)
Used for outputting to internal printer,
external plotter, hard copy of screen image
data, etc.
SHIFT + COPY(MENU)
(Chapter 10, Page 12-11)
Displays the setting menu for outputting to
the internal printer, external plotter, and for
hard copy of screen image data, etc.
STORE/RECALL key (Chapter 11)
Displays the store/recall menu used to store or recall displayed
waveforms and setting parameters from the internal memory.
SHIFT + STORE/RECALL(FILE) key (Chapter 12 and 13)
Displays the setting menu used to save/load data to/from the
floppy disk or the SCSI device. The menu for operating the SCSI
device is displayed only on the DL1520L with suffix code -C4.
MISC key (Pages 14-2 to 14-4, 15-7)
Displays the MISC menu used to make communications, date
and time settings, confirm system condition, perform a self
test and make system configuration setting.
LOCAL key
Clears the remote state. The REMOTE indicator
is lit while remote mode is active.
Refer to the Communication Interface User's
Manual (IM 701510-11E).
2.2 Operation Keys / Rotary Knob
To Next Page
