Connecting the SCSI cable
CAUTION
• When connecting or disconnecting the SCSI cable, turn the power switches
OFF on all equipment. Not doing so may cause malfunction, or damage the
equipment.
• Never short the connector pins on any equipment or externally apply
voltage to them. It may damage the equipment.
Before connecting
1. Make sure to read the instruction manuals thoroughly and have a good understanding on
all equipment being connected beforehand.
2. Turn the power switches OFF on all equipment that are being connected.
Connecting DL1520L and the SCSI device
3. Connect one end of the SCSI cable to the connector "OPTION" on the rear panel of this
unit.
4. Connect the other end of the SCSI cable to the connector on the SCSI device.
5. Set the ID number of the SCSI device to "5."

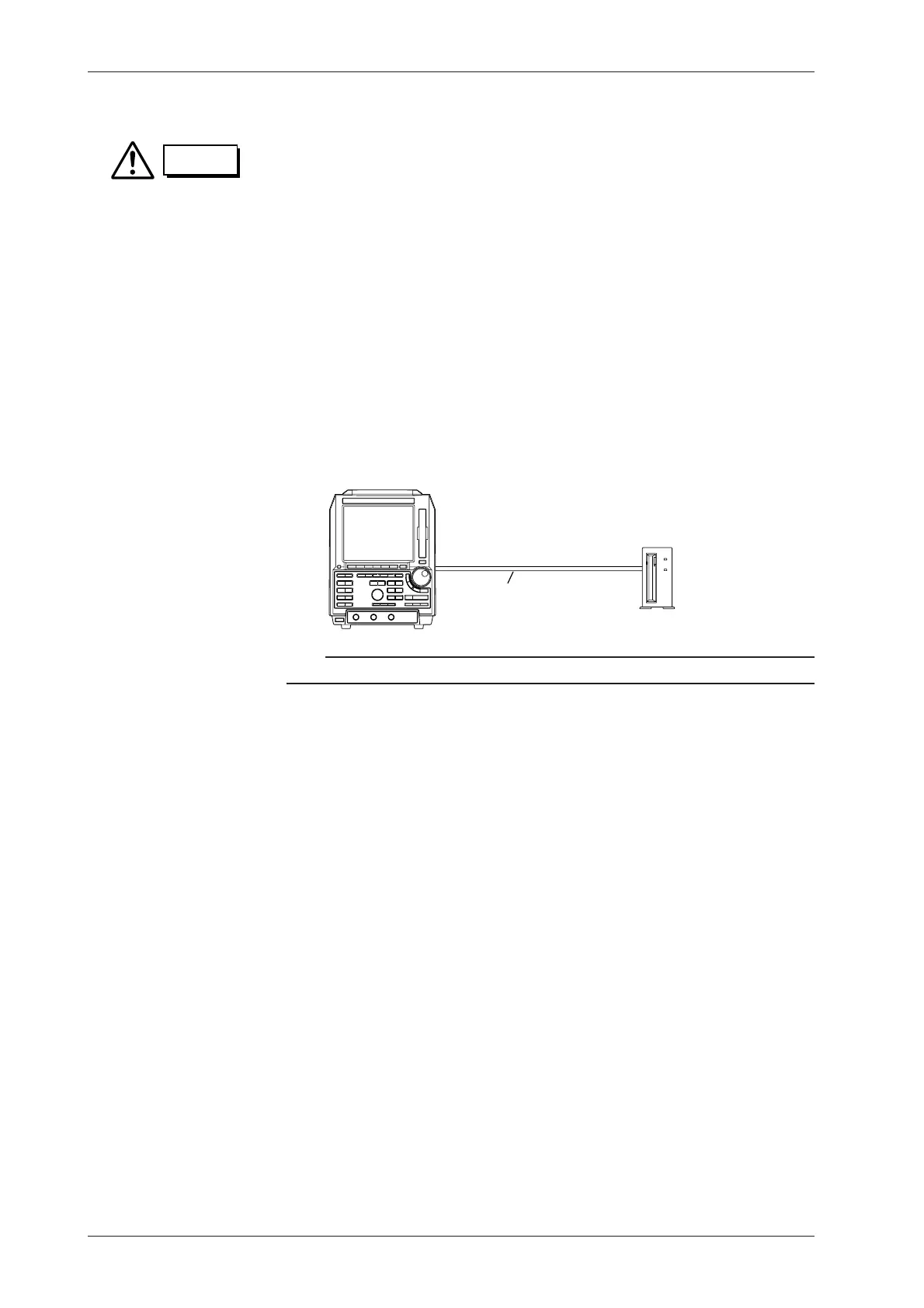

DL1520L digital oscilloscope (suffix code -C4)
"OPTION"
connector
SCSI device
SCSI cable
(To be provided by the customer)
Note
DL1520L with suffix code -C4 can connect one SCSI device to the "OPTION" connector.
3.3 Connecting the SCSI cable (for DL1520L with suffix code -C4)
