Analyzing Waveforms
8

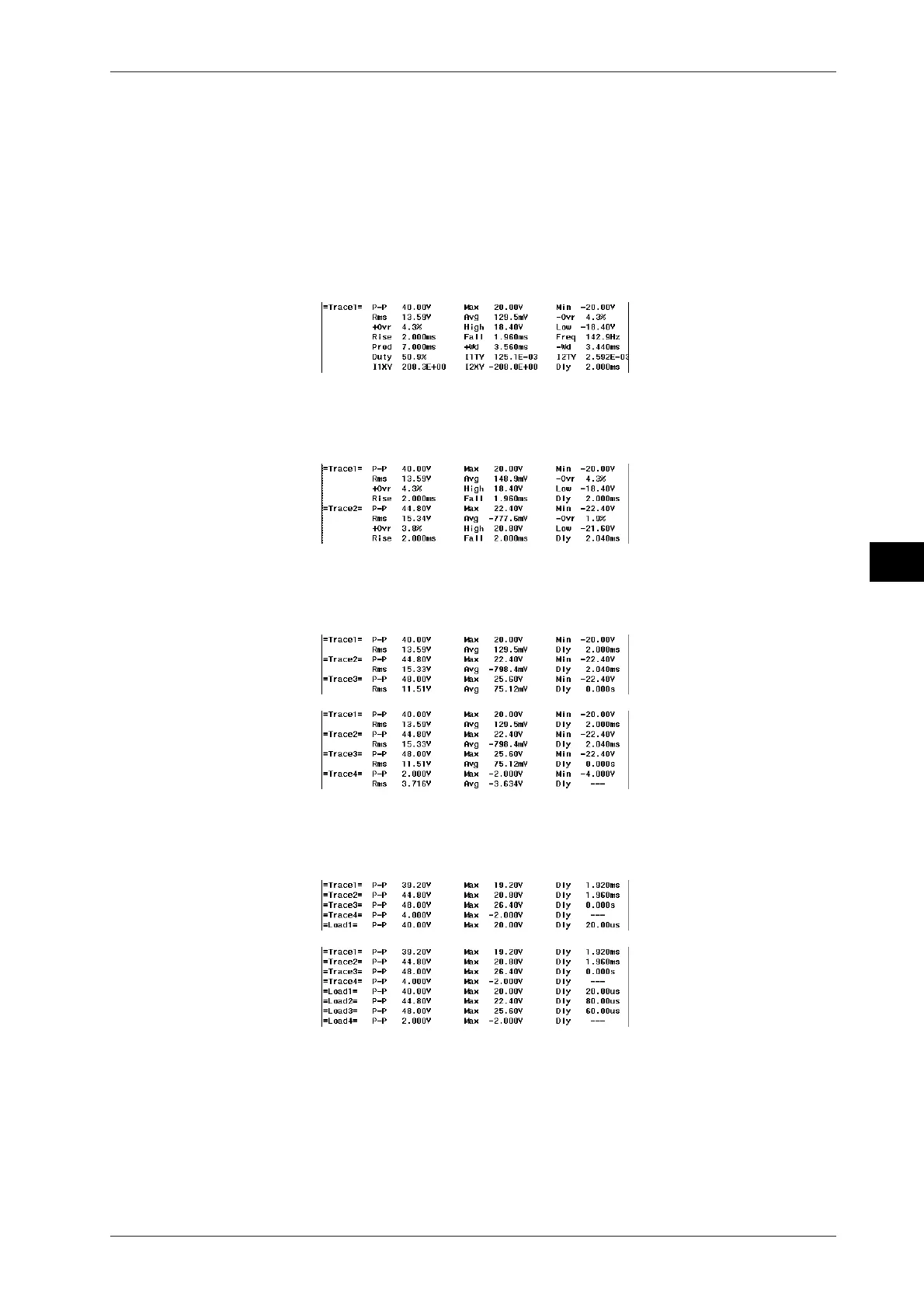

Display Example of measurement values
The number and type of measurement items which can be displayed at a screen together
with the waveform(s) depend on the number of waveforms under measurement.
Furthermore, if the number of measurement items exceeds the maximum which can be
displayed, the type of measurement items which will appear on the display is designated.
The following shows an example where the type of displayed measurement values is
designated.
• In case of one waveform under measurement
Measurement values of selected measurement items and delay between channels will all
be displayed.
• In case of two waveforms under measurement
Up to 12 measurement values of selected measurement items of one waveform will be
displayed. In case delay measurement is set “ON”, the maximum number of displayed
measurement items becomes 11.
• In case of three or four waveforms under measurement
Up to 6 measurement values of selected measurement items of one waveform will be
displayed. In case delay measurement is set “ON”, the maximum number of displayed
measurement items becomes 5.
• In case of more than five waveforms under measurement
Up to 3 measurement values of selected measurement items of one waveform will be
displayed. In case delay measurement is set “ON”, the maximum number of displayed
measurement items becomes 2.
* MISC: Use of the Information menu or communications function enables output of all the
selected measured values, though the measured values cannot be updated by the Information
menu. When saving screen image data on a floppy disk in HP-GL or PostScript format, all the
selected items can be saved.
8.3 Measuring Waveform Parameters Automatically
