YOKOGAWA DLM3024 User Manual

12-4
IM DLM3054-01EN

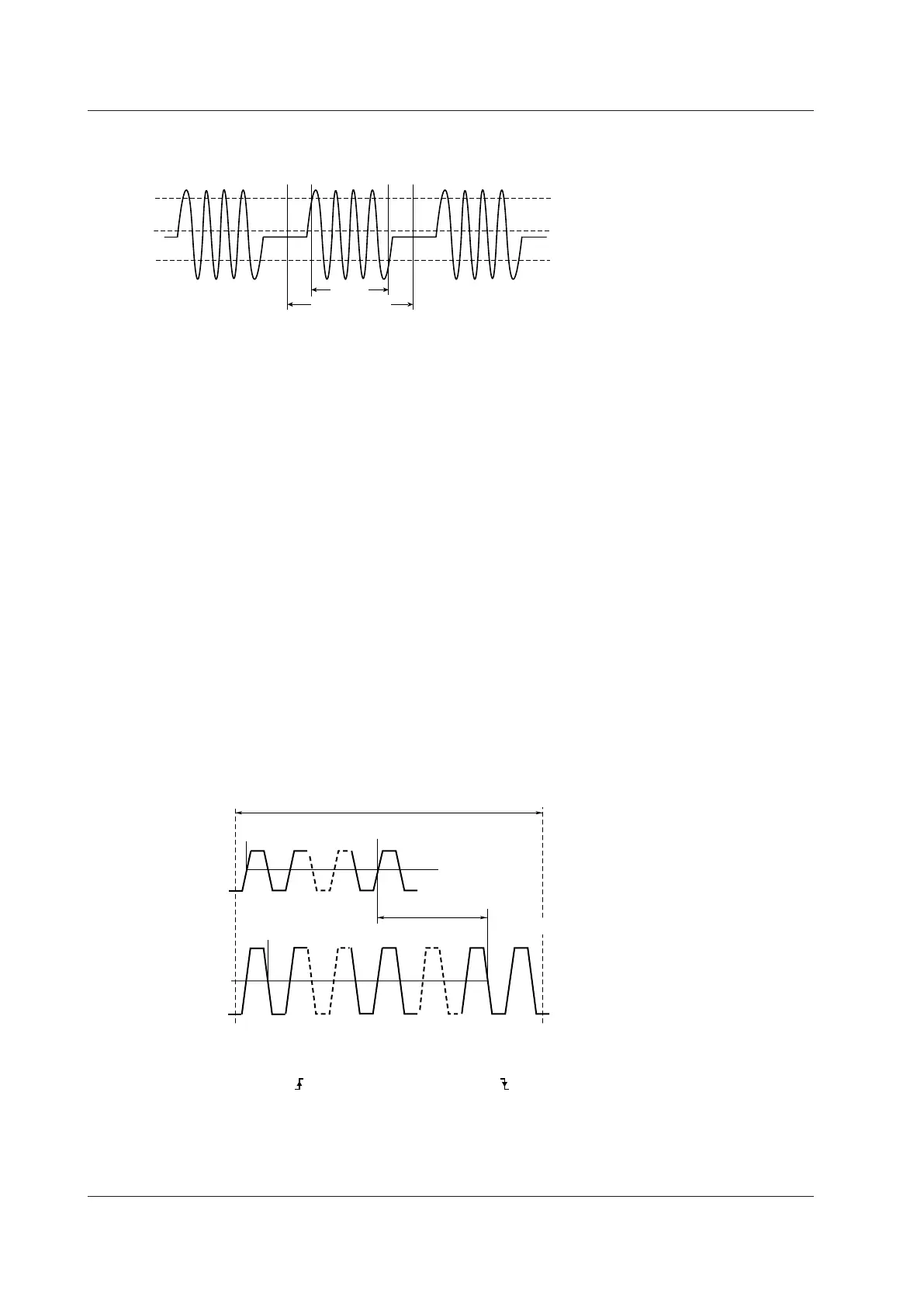

Burst: Burst period [s]
Set the measurement time period (Time Range) to a value appropriate for the burst period you want to
measure.
Burst
Time range
T1
T2
(1)
(2)
(3)
(1) Distal
(2) Mesial
(3) Proximal
Measurement of Delay between Waveforms (Delay Setup)
Measures the time difference from the reference waveform (Reference) edge or the trigger position* to the
source waveform (Source) edge.
* If delay cancel (Delay Cancel) is set to OFF, they are based on the trigger point.
• Reference: Selects the reference waveform (CH1 to CH4, Math1 to Math4, or Trigger Position)
• Polarity: Selects the slope (rising or falling) of the edge you want to detect
• Count: Sets which edge counted from the start point (T Range1) of the time range to use as a detected point
(reference point or measured point). The selectable range is 1 to 10.
• Unit: Sets the unit for displaying the delay between waveforms to Time or Degree when Reference is not set
to Trigger Position.
Time
Displays the delay between waveforms in time.
Degree
Displays the delay between waveforms as an angle.
Conversion formula: angle = delay (s)/period (s) × 360 (deg) where the period is the period of the reference
waveform.
Example
(When Reference is not set to Trigger Position)
: (rising)
: N1 (an integer
between 1 and 10)
: (falling)
: N2 (an integer
between 1 and 10)
Reference
waveform
(Reference)
Source
waveform
(Measure)
Count 1
Count N1
Count N2
Count 1
Delay between
waveforms
• Polarity
• Count
Reference waveform settings Source waveform settings
Time range
• Polarity
• Count
Mesial line
12 Automated Measurement of Waveform Parameters
