19-2
IM DLM3054-01EN
Printing on the Built-in Printer (BuiltIn) (Option)
Print Mode (Mode)
On models with the optional built-in printer, you can print screen captures using one of two available modes. The
screen capture is the same as that described in “Saving Screen Captures to Files (File).”
Hardcopy (Hardcopy)
The entire instrument screen is printed.
Normal (Normal)
The waveform area of the instrument screen is printed. The menu is not printed.
When the results of cursor measurements and automated measurement of waveform parameters are displayed,
they are output below the waveform area.
Additional Information (Information)
You can print the instrument settings that were used at the time the waveform was acquired.
Printing on a USB Printer (USB)
You can print screen captures on a printer connected to one of the USB ports.

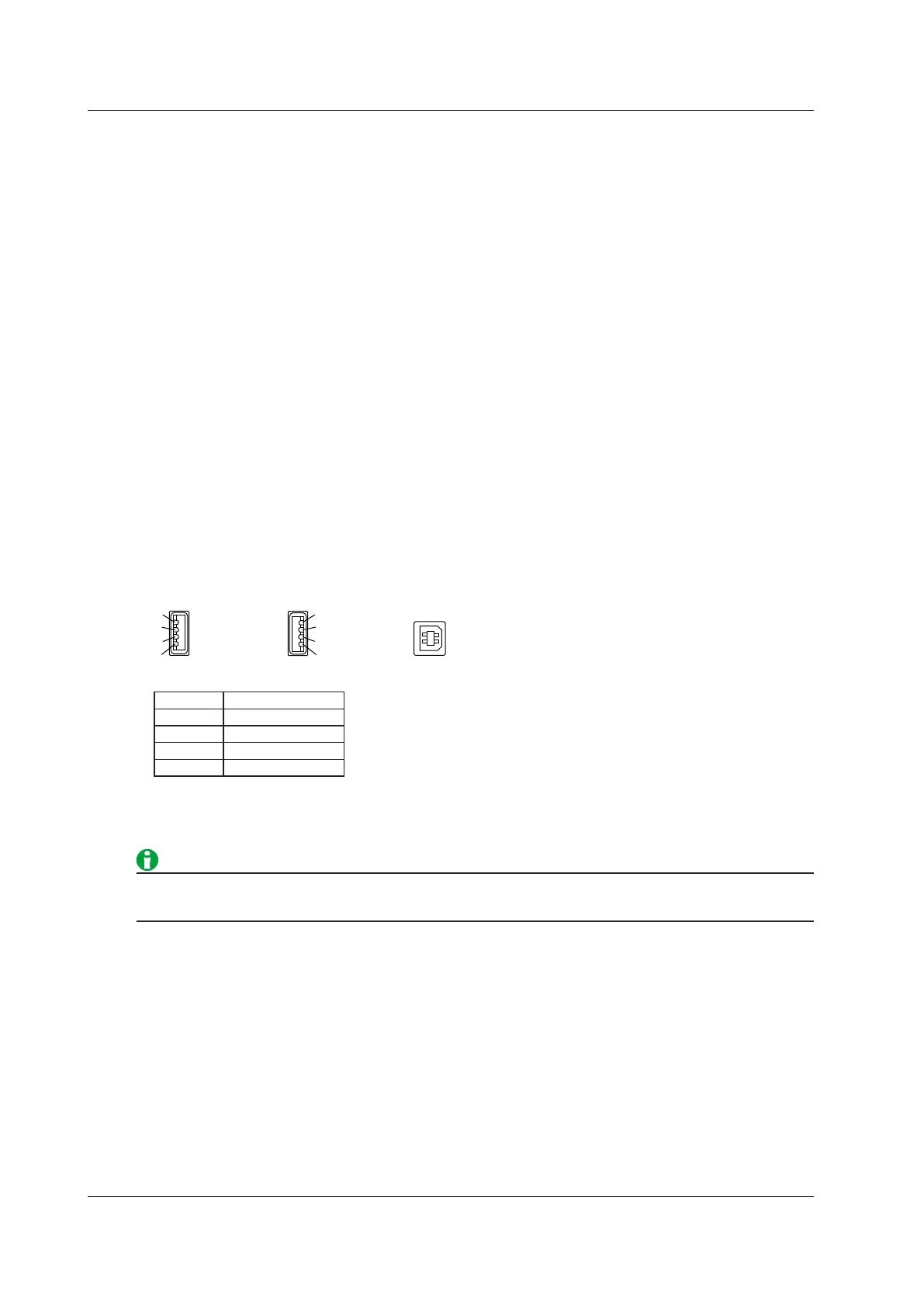

USB Ports
The instrument has a Type A USB port on the front panel as well as a Type A USB port and a Type B USB port
on the rear panel. Connect the printer to one of the standard type A ports.
Rear panel
Front panel
Type A
Type A
Type B
1
2
3
4
1
2
3
4
Pin No. Signal Name
1 VBUS: +5V
2 D−:−Data
3 D+: +Data
4 GND: Ground
Compatible Printers
You can use HP USB ink jet printers that comply with USB Printer Class Ver.1.0.
• Do not connect an incompatible USB printer.
• For USB printers that have been tested for compatibility, contact your nearest YOKOGAWA dealer.
19 Printing and Saving Screen Captures
