Remote Frame (Remote Frame)
This is the same as the CAN bus trigger.
Error Frame (Error Frame)
This is the same as the CAN bus trigger.
Stuff Error (Stuff Error, Fixed Stuff)
The trigger point is the sample point of the bit that violates the bit stuffing rule.
CRC Error (CRC Error)
CRC errors are indicated in the data-frame and remote-frame figures.
If multiple field types and frame types are combined, the trigger point is the point where the last type appears
on the time axis.

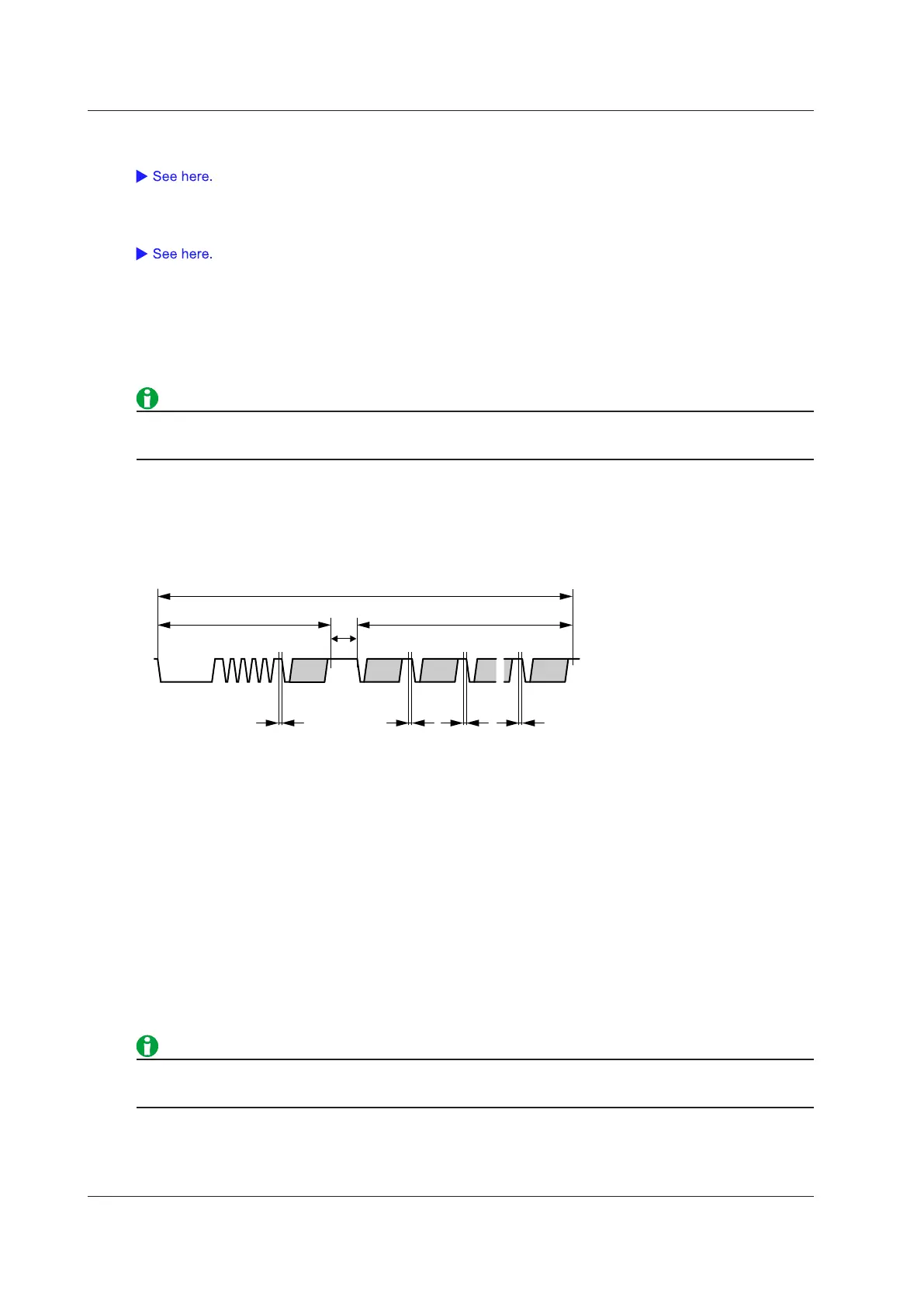

LIN Bus Trigger [ENHANCED, option]
The instrument triggers based on the conditions of a particular field or type of data in a LIN bus signal. The
following figure shows the LIN bus signal frame format.
Frame
Header
Break
Field
Synch
Field
Protected
Identifier
Field
Data 1 Data 2 Data N
Checksum
Inter-byte SpacesInter-byte Space
Response
Response Space
Trigger Mode (Mode)
Select the LIN bus trigger mode from one of the settings below.
Break Synch: Triggers on a break field or synch field
Error: Triggers on errors
ID/Data: Triggers on the AND of the ID bit pattern and Data pattern
ID OR: Triggers on the OR of multiple ID bit patterns
Break Synch
The instrument triggers when it detects a break field and then a synch field (Break Field + Synch Field).
• Break Length
Select the low-pulse bit length that is used to detect breaks from one of the options below.
10 or longer, 11 or longer, 12 or longer, or 13 or longer
If the instrument detects a break field and then a synch field (Break Field + Synch Field) in the middle of a LIN
bus frame, it discards the frame and triggers the next time it detects a protected identifier field.
4 Triggering
