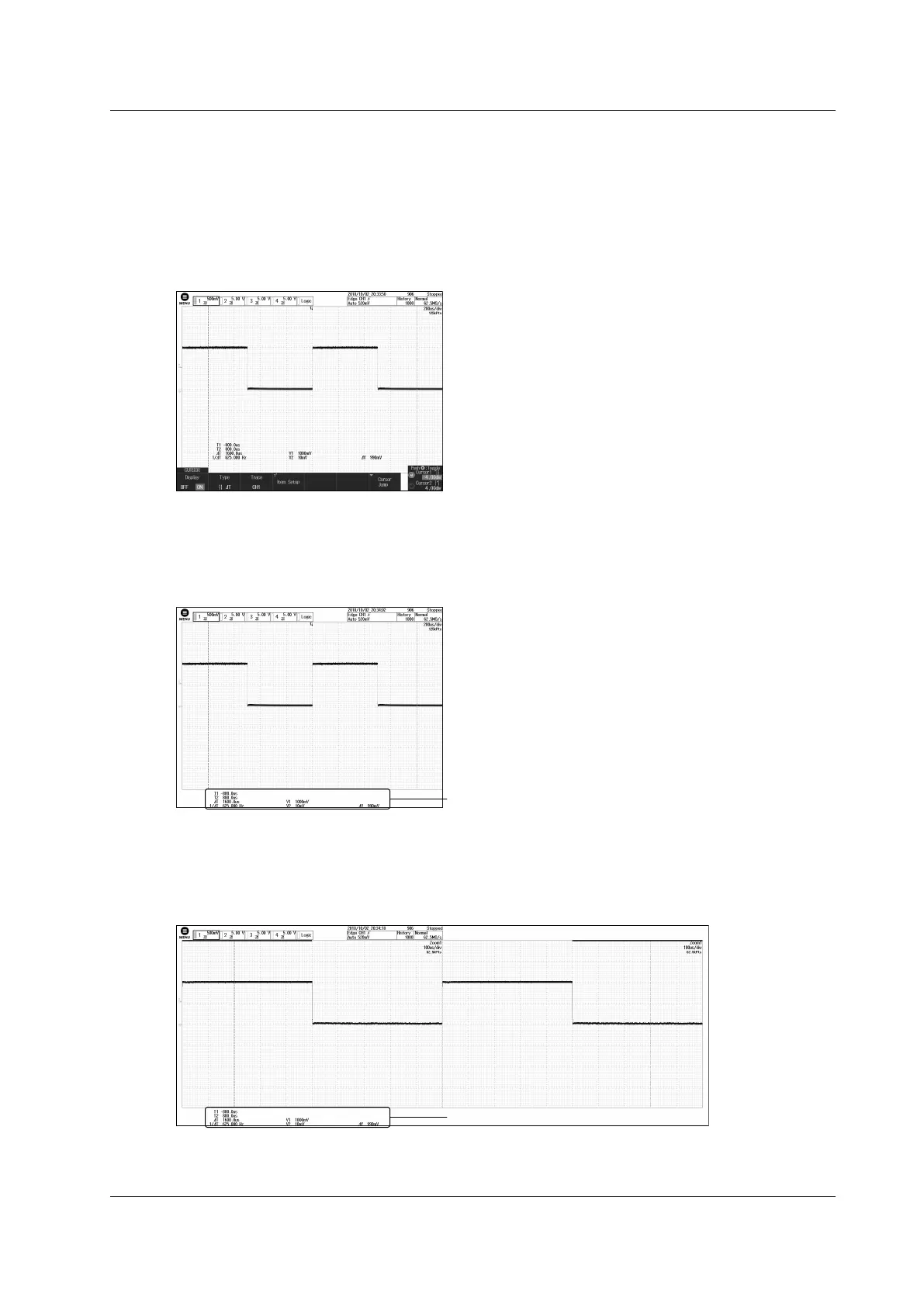

Saving Screen Captures to Files (File)
You can save screen captures to files in PNG, BMP, and JPEG formats.
Save Mode (Mode)
Hardcopy (Hardcopy)
The entire instrument screen is saved.
Example: When color data is ON (Gray)
Normal (Normal)
The waveform area of the instrument screen is saved. The menu area is not saved.
When the results of cursor measurements and automated measurement of waveform parameters are displayed,
they are output below the waveform area.
Example: When color data is ON (Gray)
Measured Results
Wide (Wide)
The same screen capture as Normal mode but with the waveform time axis magnified 2 times. When the results
of cursor measurements and automated measurement of waveform parameters are displayed, they are output
below the waveform area.
Example: When color data is ON (Gray)
Measured Results
