13 Zooming in on Waveforms
You can magnify the displayed waveforms vertically or horizontally.
The zoomed waveforms of two locations can be displayed simultaneously (the dual zoom feature). You can also
specify which channel you want to zoom in on. You cannot zoom if the number of displayed points on the screen
is less than or equal to 10.
Zoom2 window
Zoom1 window
Zoom box 1
Zoom box 2

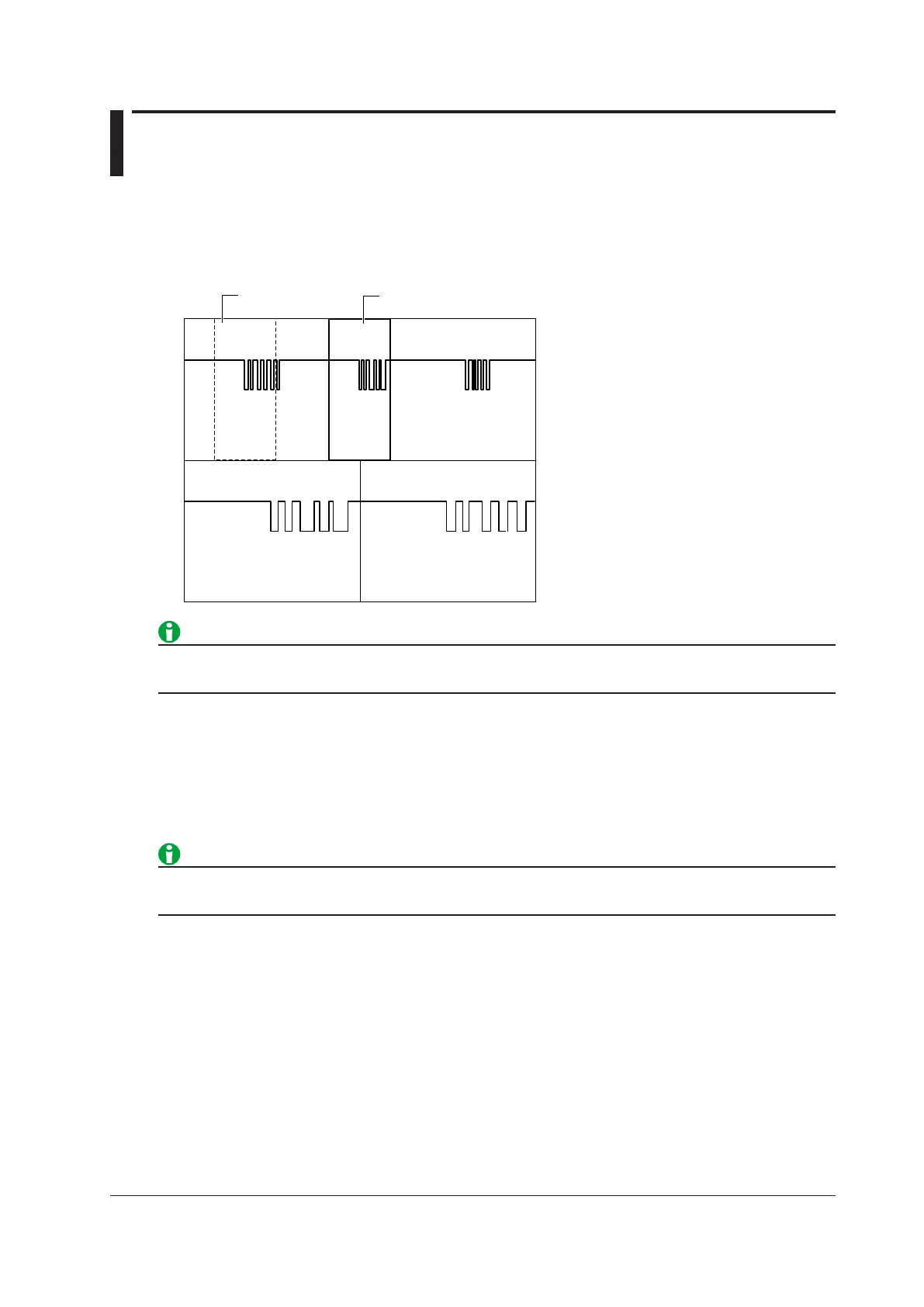

Example of the Dual Zoom Display
Main window
If the main window (which displays normal waveforms) and the Zoom1 or Zoom2 window are displayed at the
same time, a zoom box appears in the Main window so that you can check the zoom position.
Turning the Zoom Windows On or Off (Display)
Sets whether or not to display zoom windows.
• OFF: Does not display the zoom windows
• ON: Displays the zoom windows
The ZOOM1 and ZOOM2 keys illuminate when the zoom feature is on. The ZOOM knob controls the
waveforms in the window whose corresponding key is illuminated more brightly.
Display Format (Format)
Selects how to divide the zoom windows. Select from one of the settings below.
• Main: Same format as the Main window
• Single: No divisions
• Dual: Two divisions
• Triad: Three divisions
• Quad: Four divisions
• Hexa: Six divisions*
• Octal: Eight divisions*
* Selectable only on the 4-channel model.
To Next Page
