YOKOGAWA DLM3024 User Manual

4-8
IM DLM3054-01EN
• In repetitive sampling mode, waveform updating may slow down. If this happens, reduce the hold-off time
setting.
• To trigger with the hold-off time set longer than the timeout period of auto trigger and auto level trigger, set
the trigger mode to Normal. The timeout period of auto trigger and auto level trigger is approximately 100
ms or the time corresponding to 10 divisions on the time axis, whichever is larger.
• When combination trigger is in use, hold-off is applied only to trigger A.

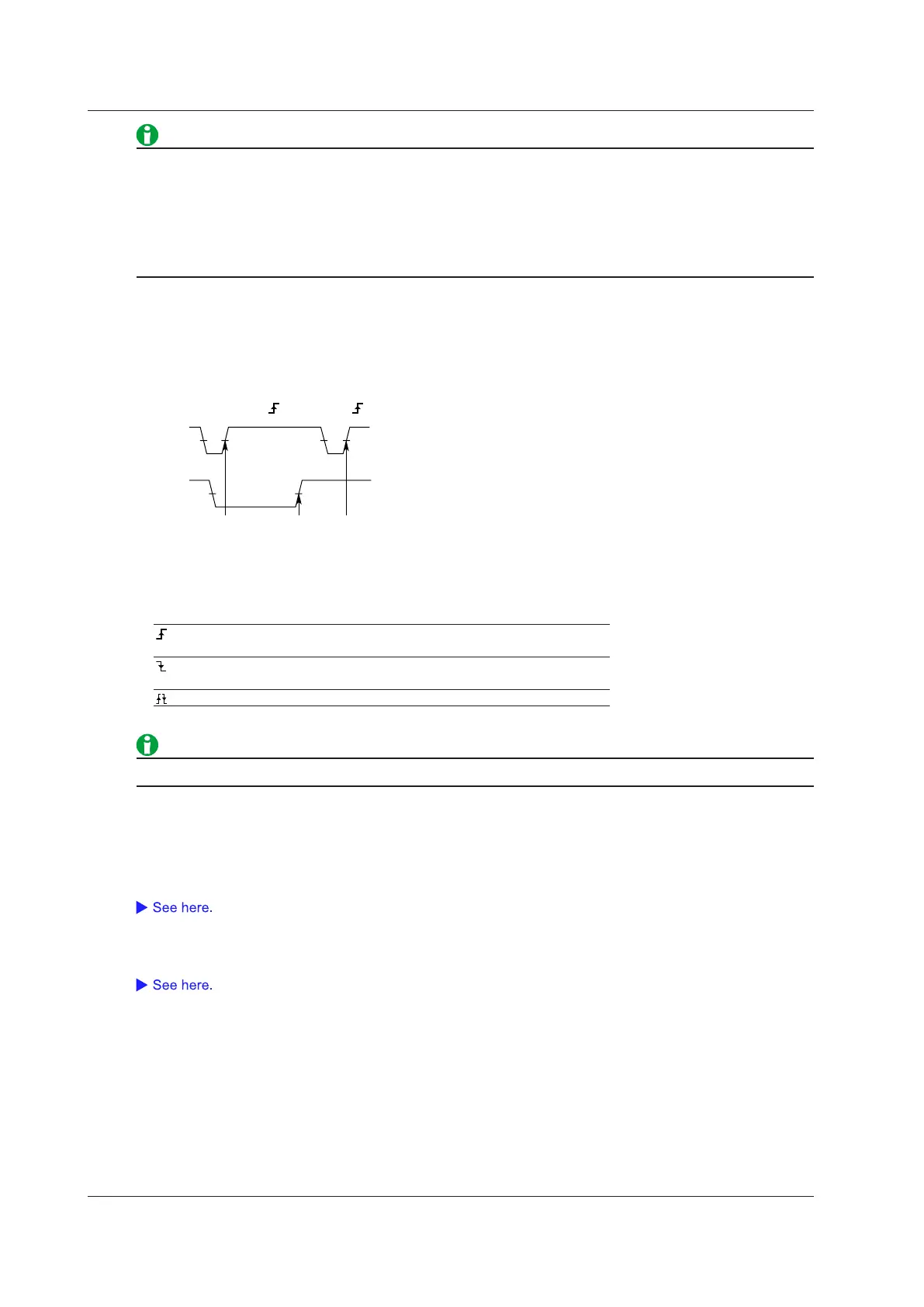

Edge OR Trigger [ENHANCED]
The instrument triggers on the OR logic of multiple trigger source edges.
Example
When CH1 = and CH2 =
Trigger
CH1
TriggerTrigger
CH2
Trigger Source (CH1/CH2/CH3/CH4)
Set the trigger slope for each channel. There is also a feature (All soft key) for applying the same settings to CH1
to CH4.
When the trigger source changes from a level below the trigger level to a
level above the trigger level (rising)
When the trigger source changes from a level above the trigger level to a
level below the trigger level (falling)
When a rising or falling edge is detected
LOGIC, EXT, and LINE signals cannot be used as the trigger source of Edge OR triggers.
Trigger Level (Level), HF Rejection (HF Rejection)
Noise Rejection (Noise Rejection)
Set these items for each trigger source.
These items are the same as those of the edge trigger.
Trigger Position (POSITION), Trigger Delay (DELAY), Trigger Hold-Off (Holdoff)
These items are the same as those of the edge trigger.
4 Triggering
