2-3
IM DLM3054-01EN
Bus Display (Bus)
Bits 0 to 7 can be displayed as bus signals.
Turning the Display On and Off (Display)
You can turn the bus display on and off. If you turn it on, a bus display appears according to the specified bus bit
assignments (Assignment), label (Name), and format (Format).
• ON: The bus display is shown.
• OFF: The bus display is hidden.

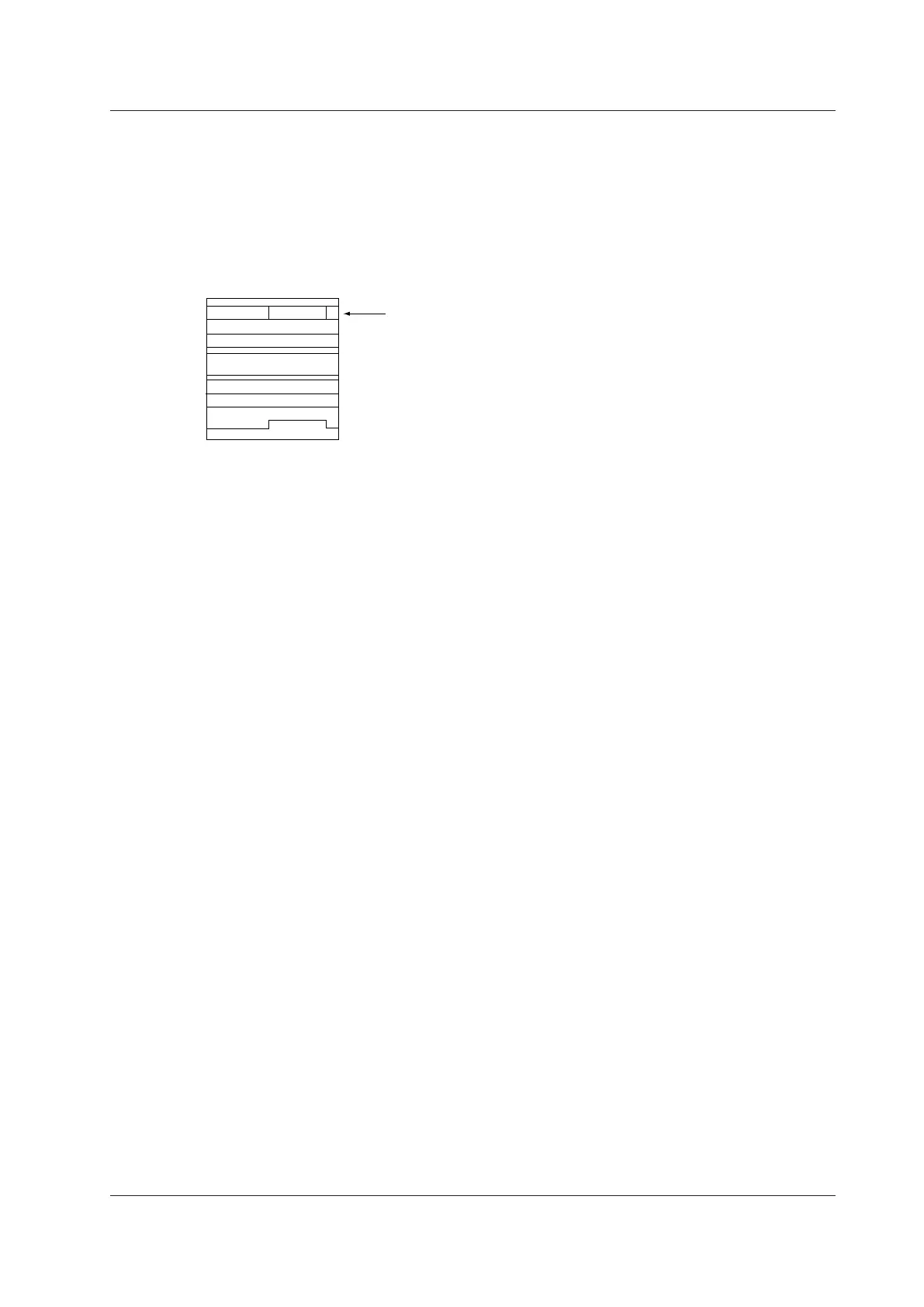

Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
2E
2F
Bus display (Hex)
Bus Bit Assignments (Assignment)
Set which bits to assign to the bits on the bus (from the MSB to LSB). The bit assignments here are used to
measure the bus value during cursor measurement.
Edit Menu
In the assignment edit menu, you can select a position in the bus to assign a bit, delete an assigned bit, and so
on.
Bits
Select the bit to assign from the group of bits.
Label (Name)
Set the label that appears when the bus display is turned on using up to eight characters.
Format (Format)
Select the format for displaying the bus.
• Bin: Binary notation
• Hex: Hexadecimal notation
2 Vertical Axis (Logic Signal)
