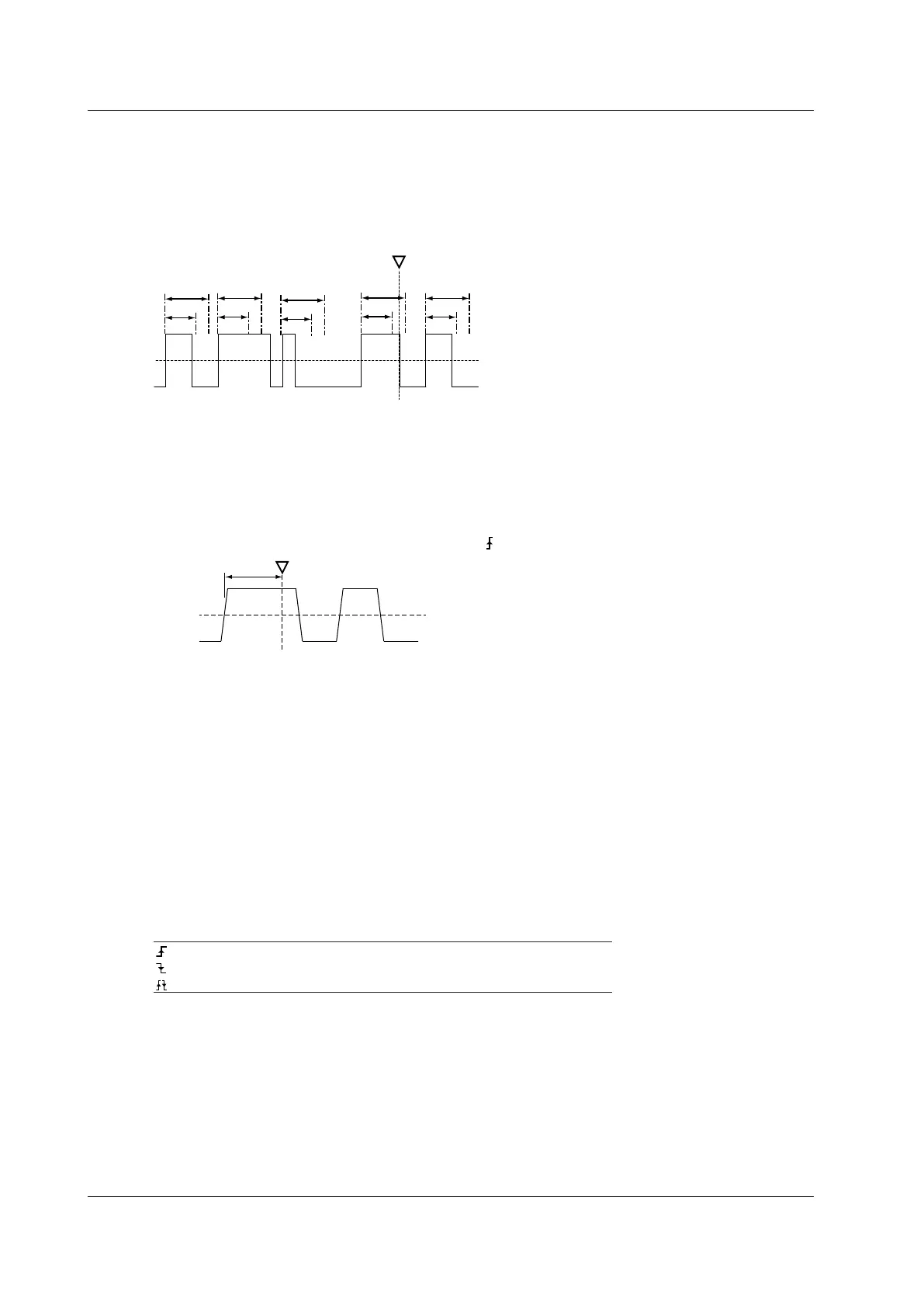

Pulse Width Search
The instrument searches for the position where the pulse width of the specified waveform meets the specified
reference time.
Search Example
T2
T1 T1 T1 T1 T1
T2 T2 T2 T2
Detected point
Mode: Inside
T1:Time1, T2:Time2
Timeout Search
The instrument searches for the timeout position from the point where the rising or falling slope of the specified
waveform passes through the specified level.
Search Example
Source
Time
Level
Detected point for rising edge ( )
Search Conditions (Condition Setup)
Set the search source waveform, detection level, and other search conditions. The items that you need to set
vary depending on the search type that you select.
Edge Search
Search Source Waveform (Source)
You can select from one of the settings below. The available settings vary depending on the model.
CH1 to CH4/LOGIC,* Math1 to Math4
* CH4 or LOGIC, whichever the corresponding key is illuminated, can be selected. If you select LOGIC, select
the source bit (bit 0 to bit 7).
Slope (Slope)
You can select which slope edge to detect in the search source waveform.
Rising slope
Falling slope
Rising or falling slope
Level (Level)
When the search source waveform is CH1 to CH4 or Math1 to Math4, set the level used to detect the search
source waveform’s rising or falling edge.
Selectable range: ±10 div
Resolution: 0.01 div
14 Searching Waveforms
