When a Clock Source Is Not Specified

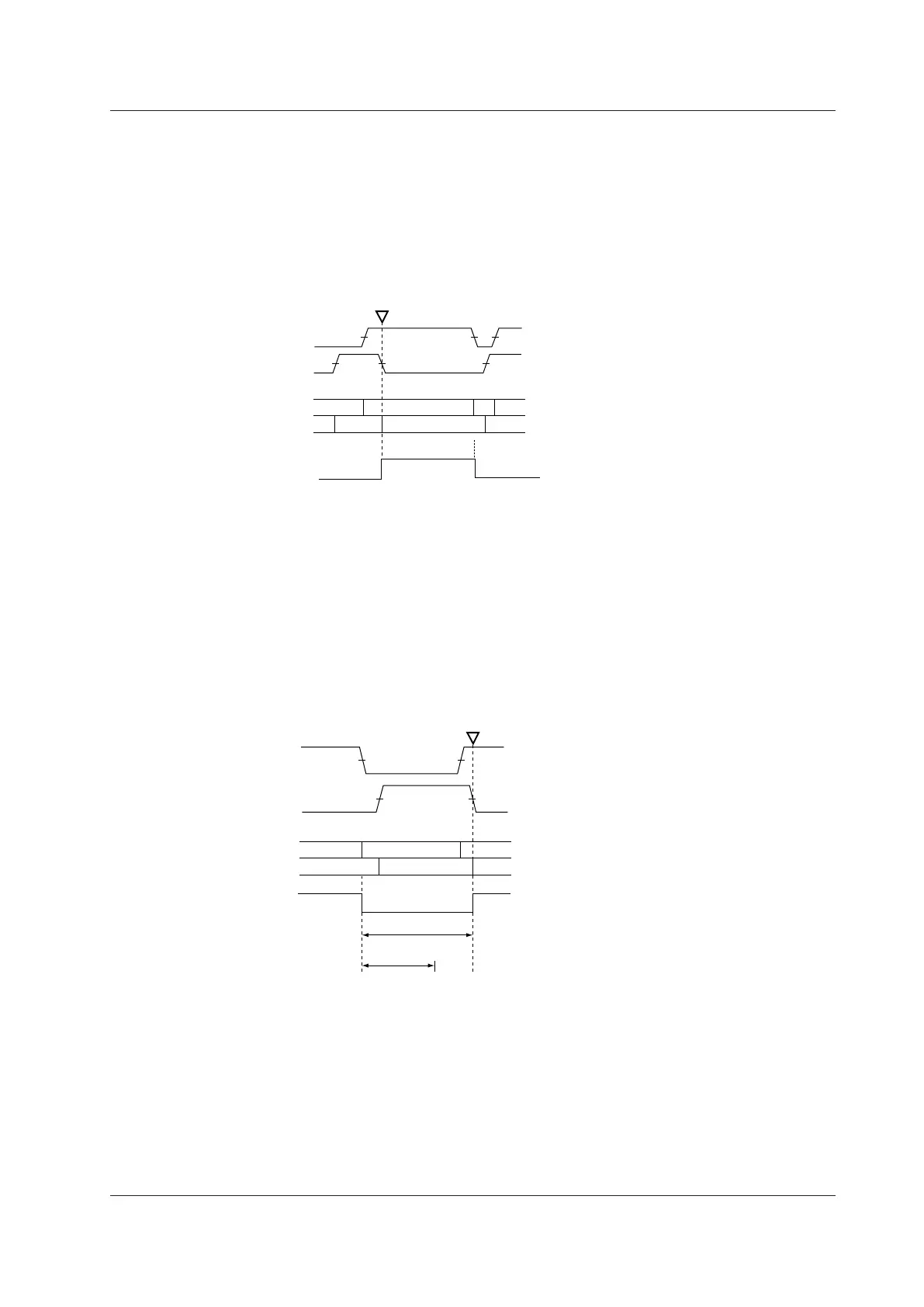

Search Example 1
The instrument searches for the point of change in the results (Enter or Exit of the achievement condition
(Condition)) of comparing the combination (Logic) of the trigger source signal pattern (Pattern) and the specified
pattern.
L
H
H
CH1
CH2
Clock: None
Pattern: CH1 = H, CH2 = L, other channels = X, Logic = AND
Condition: Enter
CH1
CH2
H
H
L
L
L
Not met Not metMet
Comparison with the
specified pattern
Detected point
Search Example 2
The instrument searches for the end point of the achievement time (t) when the relationship between the
duration the result (Enter or Exit of the achievement condition (Condition)) of comparing the combination (Logic)
of the trigger source signal pattern (Pattern) and the reference time meets the specified time condition (Time
Qualification). When the time condition is set to timeout, the instrument searches for the timeout point.
Comparison with the
specified pattern
H
H
CH1
CH2
Clock: None
Pattern: CH1 = H, CH2 = L, other channels = X, Logic = AND
Condition: False
Time Qualification: More than(t>Time)
CH1
CH2
L
H
L
L
t
Time
Not met MetMet
Detected point
Comparison with the r
eference time (Time)
14 Searching Waveforms
