4-55
IM DLM3054-01EN

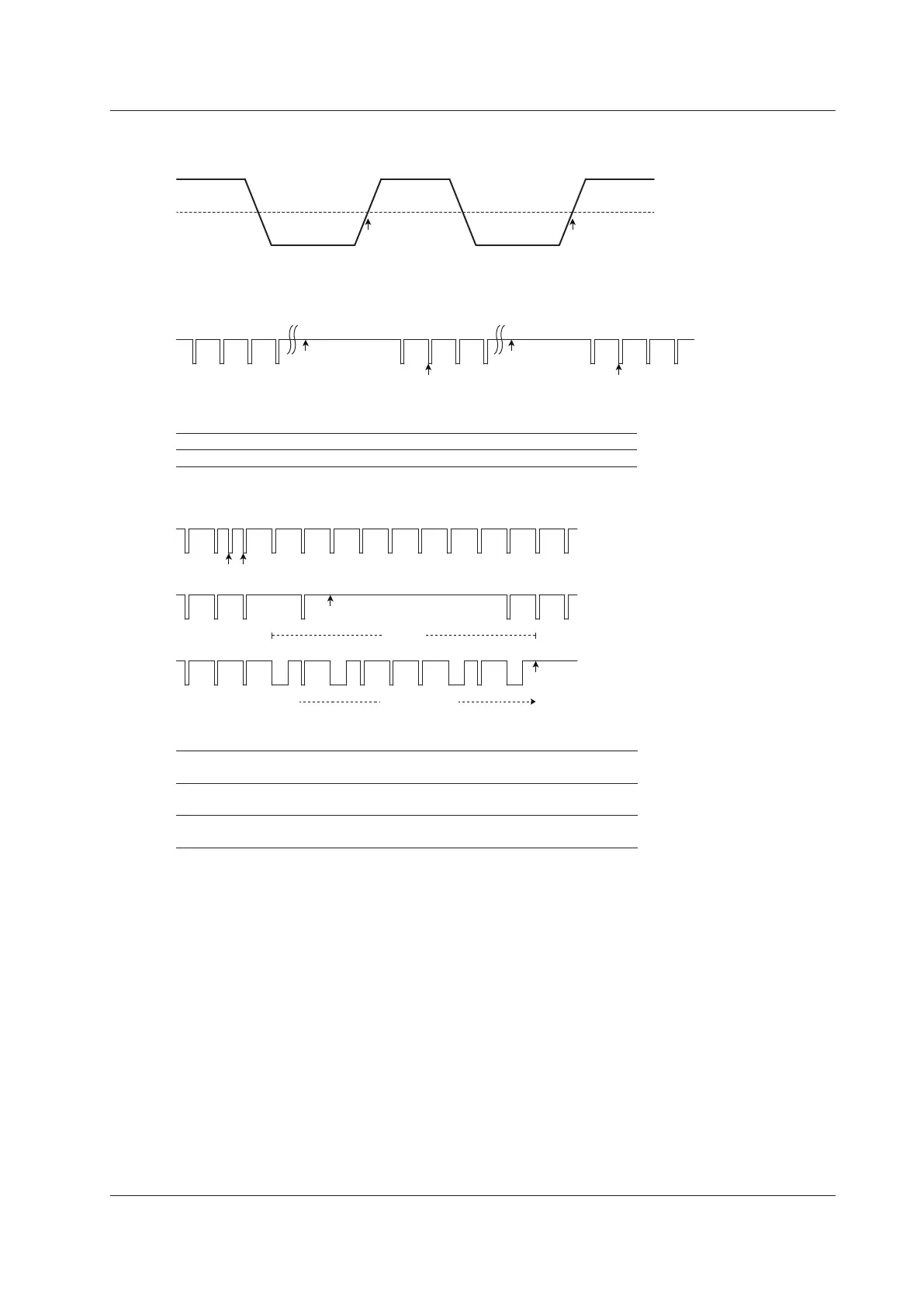

• Wakeup Pulse
The trigger point is the rising edge after a dominant period ranging from 250 µs to 2500 µs.
Rising edge after a specified dominant period
• Wakeup/Sleep
(1)
(1)
Positions (1) and (2) above are trigger points for the following conditions.
(1) Sleep Position at 5 ms from the last falling edge of the ending clock
(2) Wakeup Clock detection position after sleep (where 1 clock is guaranteed)
• Clock Error
(3)
Sleep
(2)
(1)(1)
Positions (1) to (3) above are trigger points for the following conditions.
(1) Clock Error Position where a clock less than clock error
1 Tbit × (1 − (absolute value of clock tolerance)/100)
(2) Clock Error Position at 1 Tbit × + (absolute value of clock tolerance)/100)
from the falling edge detected during sleep
(3) Clock Error Position at 1 Tbit × (1 + (absolute value of clock tolerance)/100)
from the last falling edge of the ending clock within the frame
4 Triggering
To Next Page
